| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_141T01_9000003174_21484cztM0_level2.evt | modeM0/AS1T03_141T01_9000003174_21484cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,036,800 | 106,104,960 |
| Size | 481.6 MB | 101.2 MB |
| Events in quadrant A | 3,487,152 | 683,342 |
| Events in quadrant B | 3,670,612 | 696,205 |
| Events in quadrant C | 3,560,825 | 672,612 |
| Events in quadrant D | 4,079,991 | 652,320 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15077 | 0 |
| B | 0 | 15369 | 0 |
| C | 0 | 15348 | 0 |
| D | 0 | 16982 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7318 | 54 | 0.737907% |
| B | 7319 | 74 | 1.011067% |
| C | 7319 | 85 | 1.161361% |
| D | 7319 | 123 | 1.680557% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 7318 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7664 | 7319 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7664 | 7320 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7664 | 7320 | 88 | 88 | 1.15% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12201 | 62.35 | 904 | 884 | 181.5 |
| A | 0 | 226 | 7618 | 37.1 | 904 | 884 | 181.5 |
| A | 3 | 137 | 7483 | 36.36 | 904 | 884 | 181.5 |
| B | 0 | 230 | 75167 | 431.42 | 901 | 878 | 172.2 |
| B | 0 | 190 | 22643 | 126.4 | 901 | 878 | 172.2 |
| B | 12 | 111 | 20533 | 114.14 | 901 | 878 | 172.2 |
| C | 14 | 238 | 136705 | 672.43 | 861 | 866 | 202.0 |
| C | 0 | 239 | 60422 | 294.81 | 861 | 866 | 202.0 |
| C | 3 | 233 | 7336 | 32.03 | 861 | 866 | 202.0 |
| D | 7 | 38 | 493930 | 2331.69 | 875 | 850 | 211.5 |
| D | 13 | 153 | 72699 | 339.76 | 875 | 850 | 211.5 |
| D | 1 | 52 | 69751 | 325.82 | 875 | 850 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

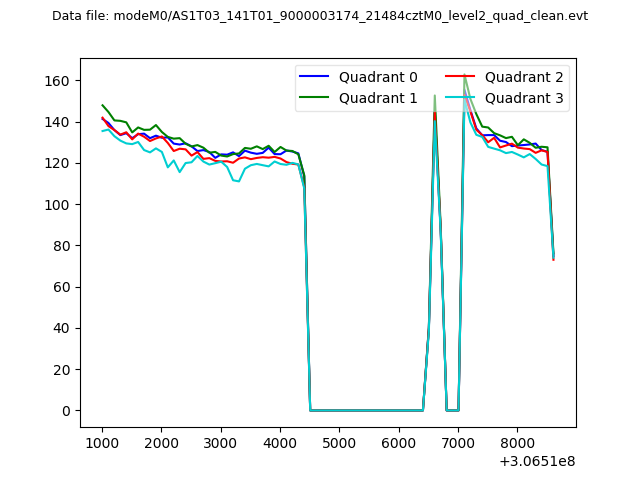

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

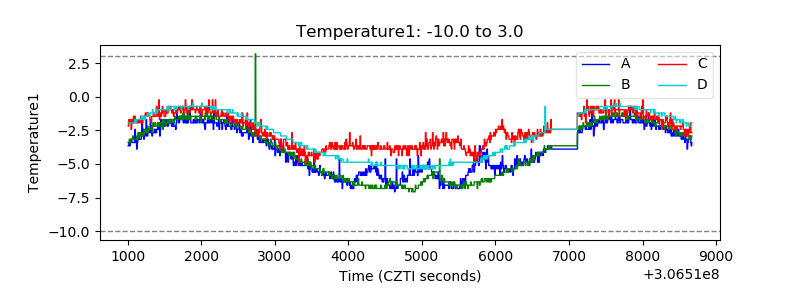

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

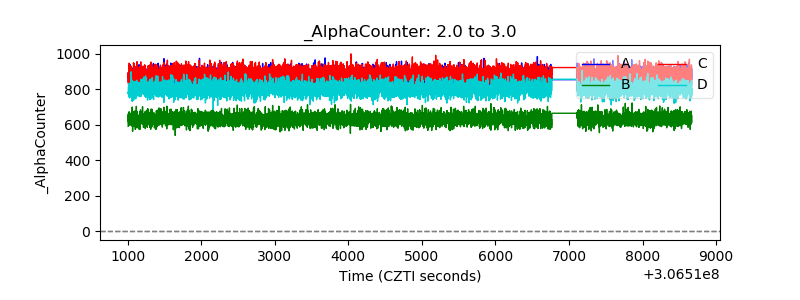

| Alpha Counter |  |

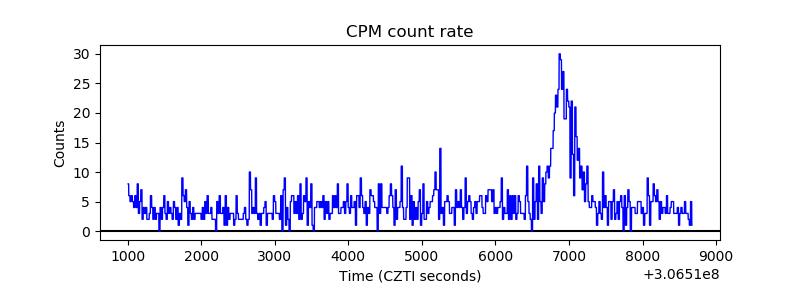

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

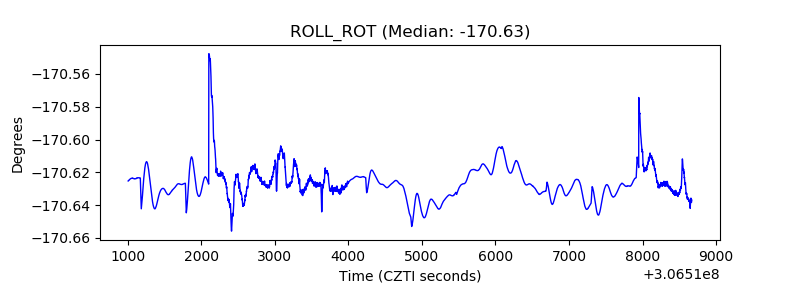

| _ROLL_ROT |  |

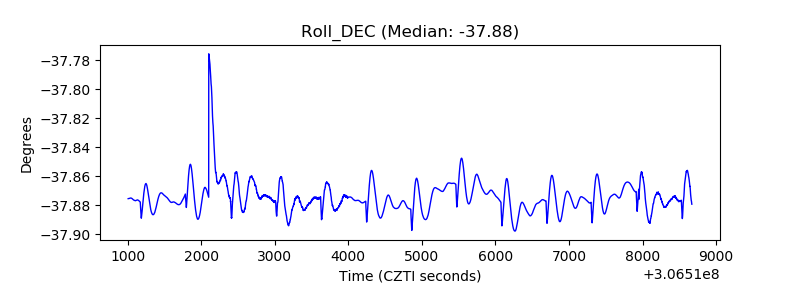

| _Roll_DEC |  |

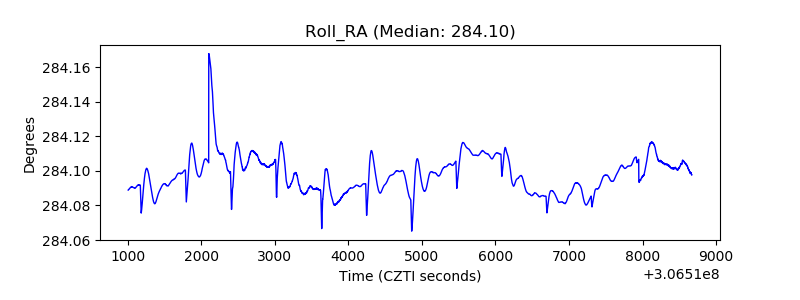

| _Roll_RA |  |

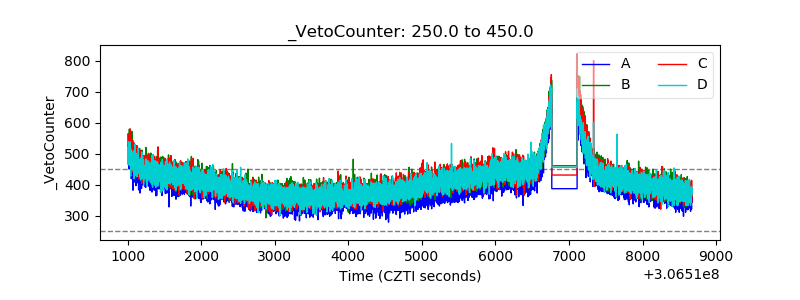

| Veto Counter |  |
