| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_141T01_9000003174_21492cztM0_level2.evt | modeM0/AS1T03_141T01_9000003174_21492cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,109,440 | 70,387,200 |
| Size | 429.3 MB | 67.1 MB |
| Events in quadrant A | 3,201,343 | 420,672 |
| Events in quadrant B | 3,329,673 | 431,819 |
| Events in quadrant C | 3,322,931 | 421,525 |
| Events in quadrant D | 3,340,966 | 408,951 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13443 | 0 |
| B | 0 | 13774 | 0 |
| C | 0 | 13813 | 0 |
| D | 0 | 14008 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6427 | 29 | 0.451221% |
| B | 6427 | 43 | 0.669052% |
| C | 6427 | 84 | 1.306986% |
| D | 6427 | 40 | 0.622374% |

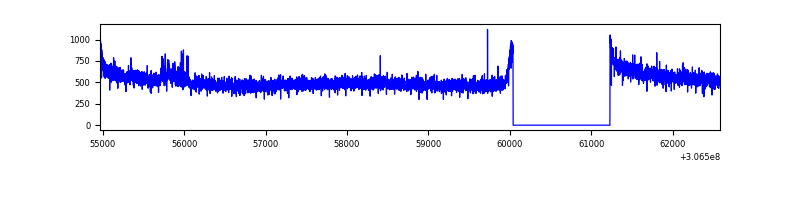

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7617 | 6427 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7617 | 6427 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7617 | 6427 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7617 | 6427 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8934 | 49.59 | 829 | 813 | 163.8 |
| A | 0 | 226 | 7032 | 37.97 | 829 | 813 | 163.8 |
| A | 14 | 111 | 6842 | 36.81 | 829 | 813 | 163.8 |
| B | 12 | 111 | 18321 | 112.93 | 836 | 817 | 155.0 |
| B | 0 | 230 | 17560 | 108.02 | 836 | 817 | 155.0 |
| B | 0 | 190 | 17482 | 107.51 | 836 | 817 | 155.0 |
| C | 14 | 238 | 129984 | 694.27 | 810 | 818 | 186.0 |
| C | 3 | 233 | 33099 | 173.51 | 810 | 818 | 186.0 |
| C | 13 | 61 | 5746 | 26.49 | 810 | 818 | 186.0 |
| D | 7 | 38 | 116794 | 593.27 | 814 | 792 | 195.5 |
| D | 13 | 153 | 77064 | 390.08 | 814 | 792 | 195.5 |
| D | 12 | 235 | 36002 | 180.08 | 814 | 792 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

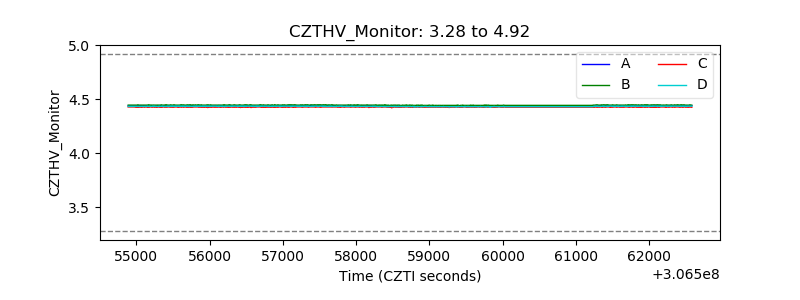

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

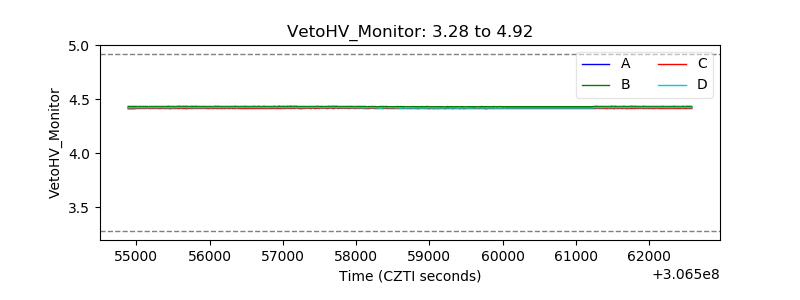

| Veto HV Monitor |  |
| Veto LLD |  |

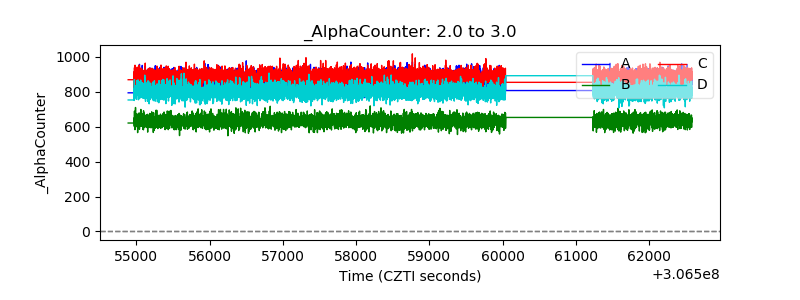

| Alpha Counter |  |

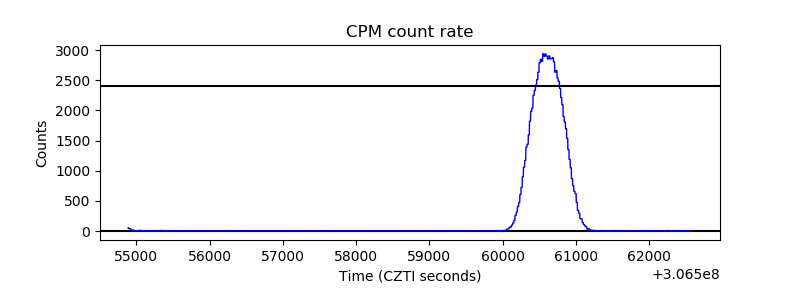

| _CPM_Rate |  |

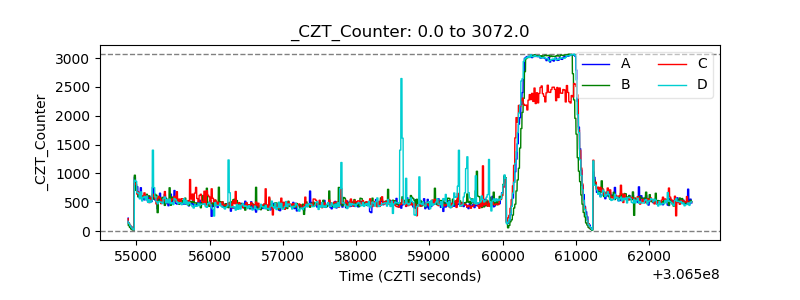

| CZT Counter |  |
| +2.5 Volts monitor |  |

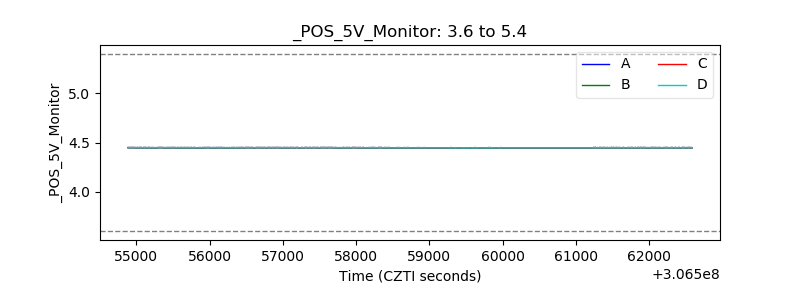

| +5 Volts monitor |  |
| _ROLL_ROT |  |

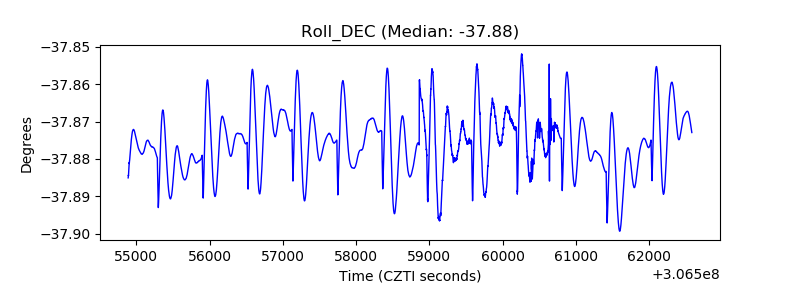

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
