| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_141T01_9000003174_21499cztM0_level2.evt | modeM0/AS1T03_141T01_9000003174_21499cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,456,640 | 102,366,720 |
| Size | 508.7 MB | 97.6 MB |
| Events in quadrant A | 3,400,189 | 659,339 |
| Events in quadrant B | 3,565,033 | 667,428 |
| Events in quadrant C | 3,409,042 | 650,966 |
| Events in quadrant D | 5,294,999 | 622,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14794 | 0 |
| B | 0 | 15139 | 0 |
| C | 0 | 14821 | 0 |
| D | 0 | 20641 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7178 | 58 | 0.808025% |
| B | 7179 | 94 | 1.309375% |
| C | 7178 | 81 | 1.128448% |
| D | 7178 | 244 | 3.399276% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 7178 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7415 | 7179 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7413 | 7177 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7414 | 7178 | 177 | 177 | 2.39% | 2.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12493 | 65.79 | 881 | 862 | 176.8 |
| A | 0 | 226 | 7616 | 38.21 | 881 | 862 | 176.8 |
| A | 3 | 137 | 7391 | 36.93 | 881 | 862 | 176.8 |
| B | 0 | 230 | 50372 | 290.07 | 875 | 852 | 170.7 |
| B | 0 | 190 | 32454 | 185.11 | 875 | 852 | 170.7 |
| B | 12 | 111 | 20165 | 113.13 | 875 | 852 | 170.7 |
| C | 14 | 238 | 131748 | 660.8 | 841 | 846 | 198.1 |
| C | 13 | 61 | 5950 | 25.77 | 841 | 846 | 198.1 |
| C | 3 | 202 | 2081 | 6.23 | 841 | 846 | 198.1 |
| D | 1 | 52 | 1100742 | 4868.57 | 839 | 821 | 225.9 |
| D | 5 | 222 | 272198 | 1201.19 | 839 | 821 | 225.9 |
| D | 7 | 38 | 213624 | 941.93 | 839 | 821 | 225.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

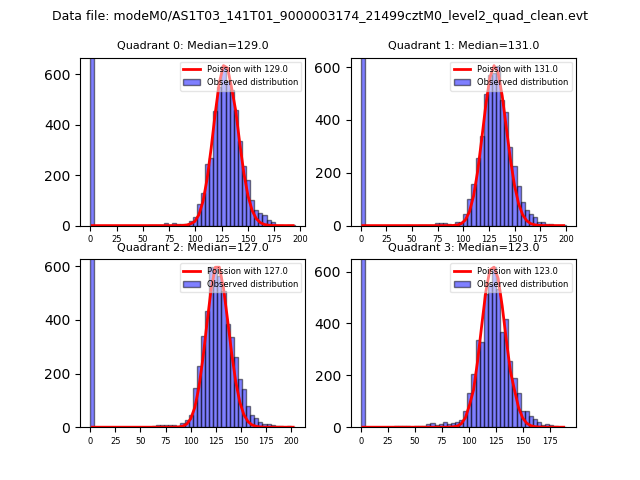

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

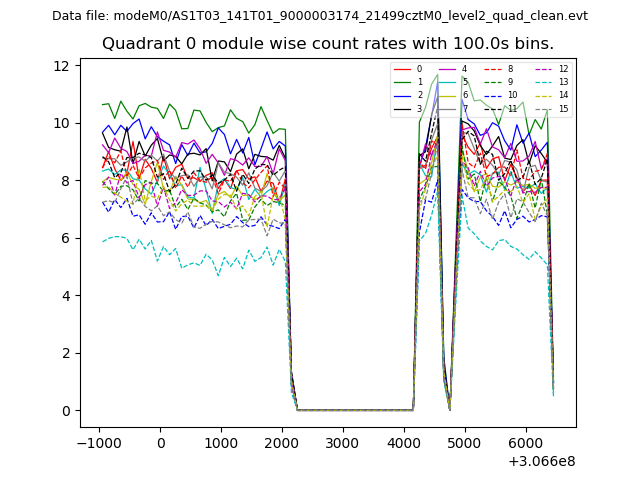

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

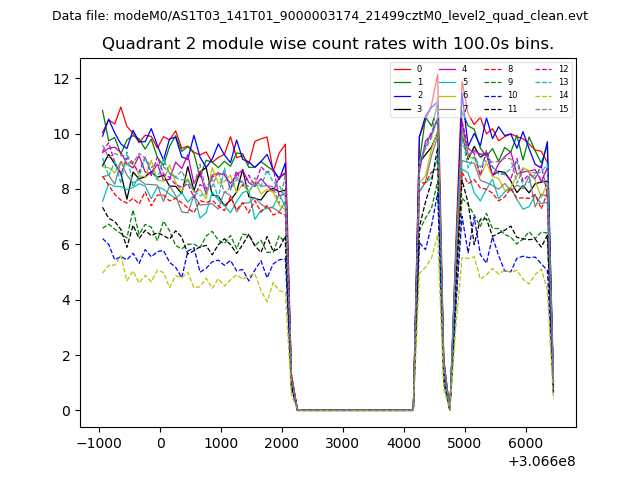

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
