| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_141T01_9000003174_21506cztM0_level2.evt | modeM0/AS1T03_141T01_9000003174_21506cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,479,680 | 76,705,920 |
| Size | 440.1 MB | 73.2 MB |
| Events in quadrant A | 3,154,656 | 468,548 |
| Events in quadrant B | 3,345,512 | 481,351 |
| Events in quadrant C | 3,249,244 | 468,178 |
| Events in quadrant D | 3,783,463 | 449,664 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13414 | 0 |
| B | 0 | 13890 | 0 |
| C | 0 | 13563 | 0 |
| D | 0 | 15485 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 18 | 0.276201% |
| B | 6517 | 45 | 0.690502% |
| C | 6517 | 54 | 0.828602% |
| D | 6517 | 82 | 1.258248% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

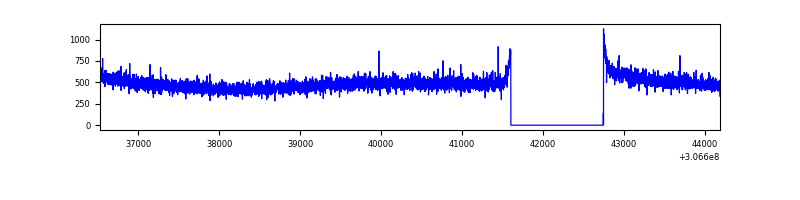

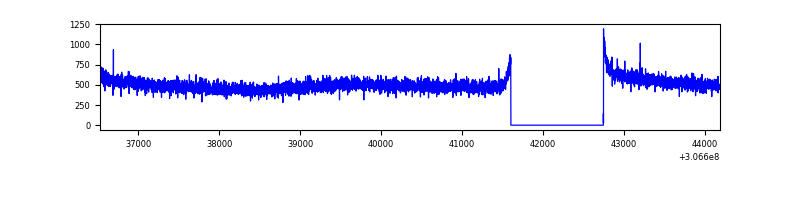

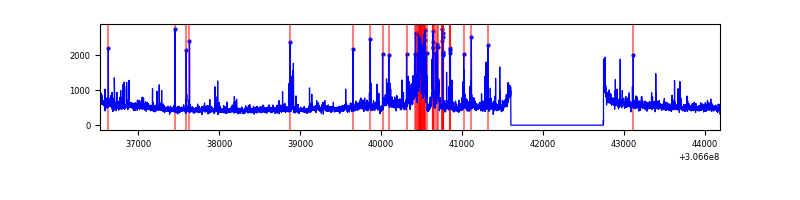

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

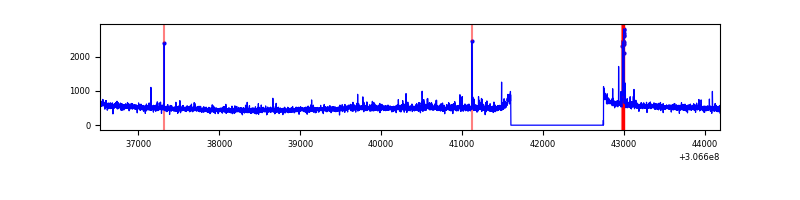

| A | 7662 | 6518 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7662 | 6518 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7662 | 6518 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7662 | 6518 | 61 | 61 | 0.80% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11095 | 62.74 | 817 | 801 | 164.1 |
| A | 0 | 226 | 6909 | 37.23 | 817 | 801 | 164.1 |
| A | 3 | 137 | 6481 | 34.62 | 817 | 801 | 164.1 |
| B | 3 | 64 | 49976 | 315.95 | 824 | 803 | 155.6 |
| B | 0 | 230 | 33172 | 207.98 | 824 | 803 | 155.6 |
| B | 4 | 190 | 23282 | 144.44 | 824 | 803 | 155.6 |
| C | 14 | 238 | 128565 | 691.17 | 795 | 802 | 184.8 |
| C | 0 | 239 | 15058 | 77.12 | 795 | 802 | 184.8 |
| C | 13 | 61 | 5641 | 26.18 | 795 | 802 | 184.8 |
| D | 14 | 35 | 332586 | 1742.19 | 795 | 773 | 190.5 |
| D | 13 | 174 | 231100 | 1209.33 | 795 | 773 | 190.5 |
| D | 13 | 153 | 65429 | 339.48 | 795 | 773 | 190.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

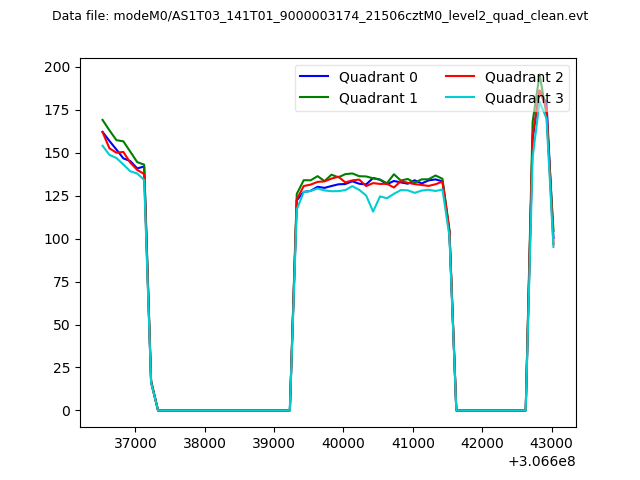

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

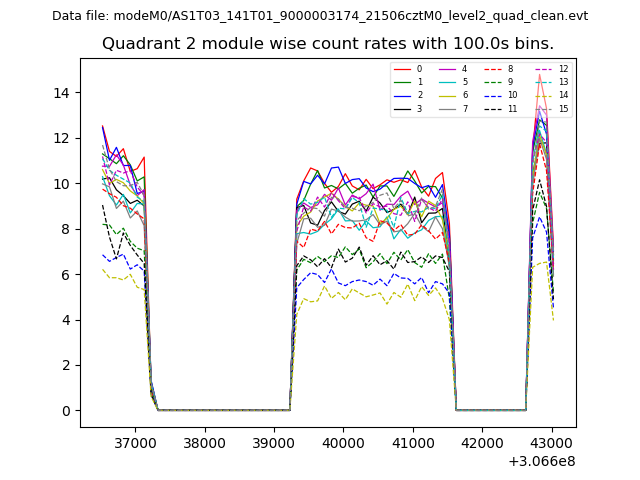

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

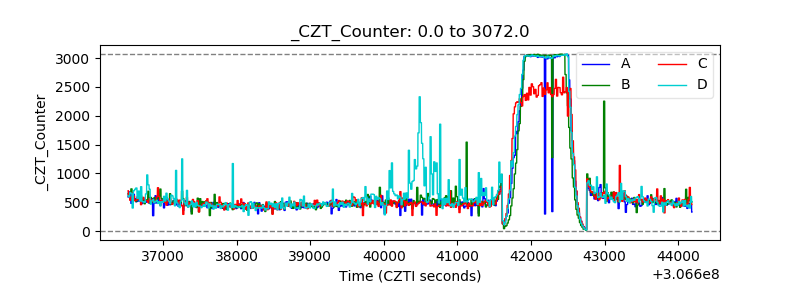

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

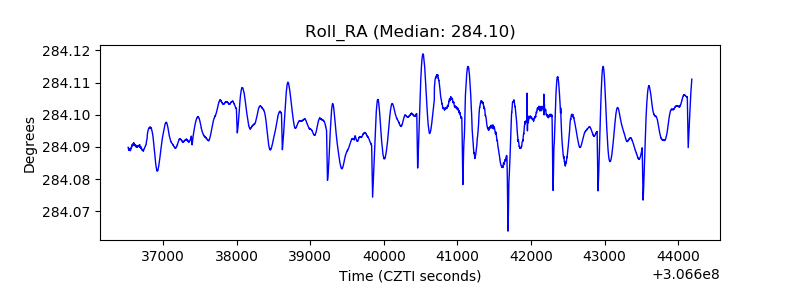

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
