| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_141T01_9000003174_21515cztM0_level2.evt | modeM0/AS1T03_141T01_9000003174_21515cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,484,800 | 100,923,840 |
| Size | 518.3 MB | 96.2 MB |
| Events in quadrant A | 3,358,878 | 650,846 |
| Events in quadrant B | 3,604,553 | 663,989 |
| Events in quadrant C | 3,367,676 | 641,946 |
| Events in quadrant D | 5,637,247 | 595,491 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14775 | 0 |
| B | 0 | 15334 | 0 |
| C | 0 | 14793 | 0 |
| D | 0 | 21728 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7239 | 15 | 0.207211% |
| B | 7240 | 35 | 0.483425% |
| C | 7240 | 45 | 0.621547% |
| D | 7240 | 547 | 7.555249% |

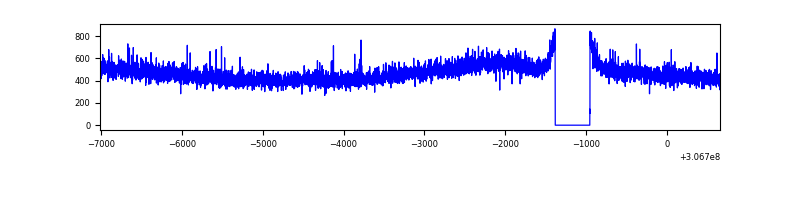

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 7240 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7670 | 7241 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7670 | 7241 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7670 | 7241 | 602 | 602 | 7.85% | 8.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 48 | 24973 | 138.33 | 865 | 846 | 174.4 |
| A | 13 | 254 | 12149 | 64.81 | 865 | 846 | 174.4 |
| A | 0 | 226 | 7557 | 38.48 | 865 | 846 | 174.4 |
| B | 0 | 230 | 104616 | 620.19 | 864 | 843 | 167.3 |
| B | 0 | 189 | 36957 | 215.83 | 864 | 843 | 167.3 |
| B | 3 | 64 | 21983 | 126.34 | 864 | 843 | 167.3 |
| C | 14 | 238 | 128972 | 663.46 | 824 | 830 | 193.1 |
| C | 8 | 128 | 11967 | 57.66 | 824 | 830 | 193.1 |
| C | 8 | 112 | 6395 | 28.81 | 824 | 830 | 193.1 |
| D | 7 | 38 | 1134544 | 5702.97 | 813 | 787 | 198.8 |
| D | 1 | 52 | 491661 | 2469.17 | 813 | 787 | 198.8 |
| D | 13 | 153 | 356713 | 1790.36 | 813 | 787 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

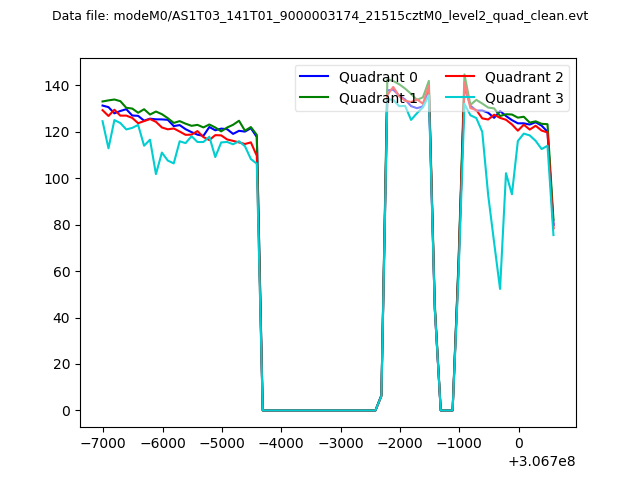

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

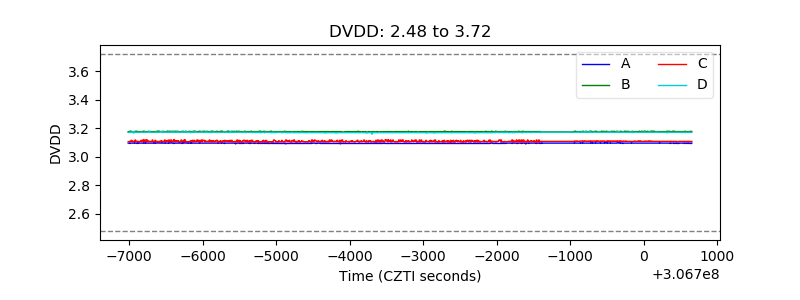

| D_VDD |  |

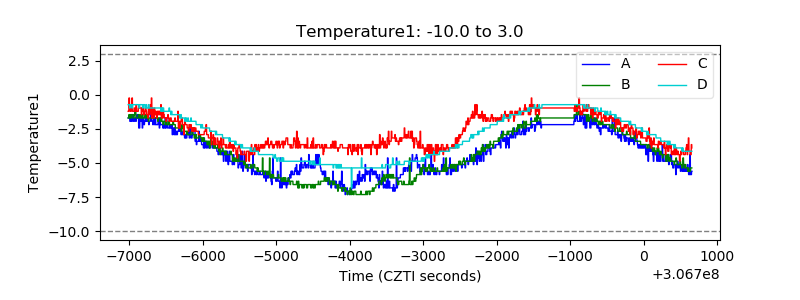

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

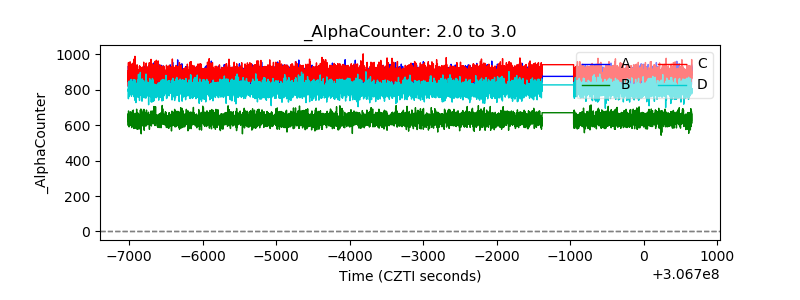

| Alpha Counter |  |

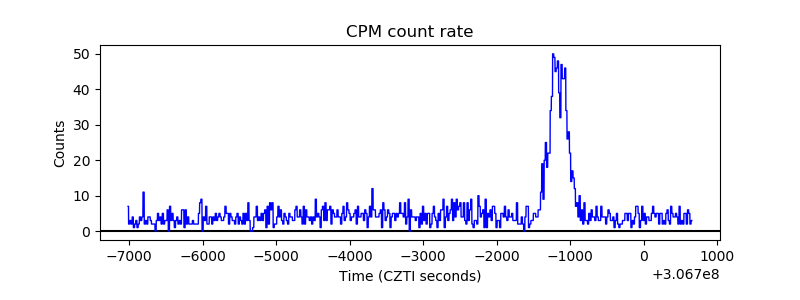

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

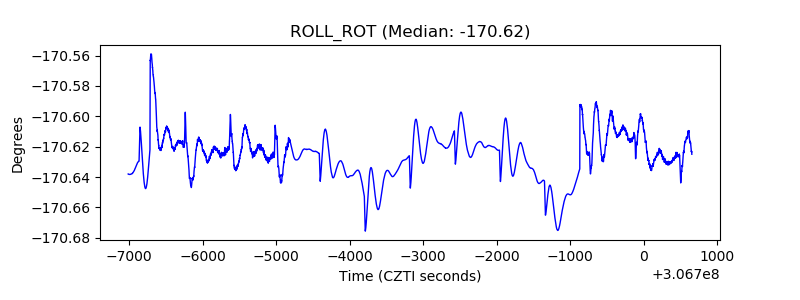

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

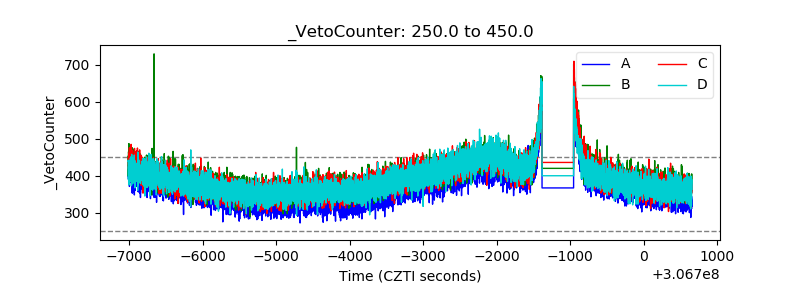

| Veto Counter |  |
