| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000003176_21519cztM0_level2.evt | modeM0/AS1A05_144T02_9000003176_21519cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,678,080 | 112,193,280 |
| Size | 470.8 MB | 107.0 MB |
| Events in quadrant A | 3,107,242 | 733,243 |
| Events in quadrant B | 3,244,684 | 751,841 |
| Events in quadrant C | 3,183,000 | 739,505 |
| Events in quadrant D | 4,961,689 | 706,735 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13741 | 2 |
| B | 0 | 14127 | 2 |
| C | 0 | 13968 | 2 |
| D | 0 | 19442 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6694 | 23 | 0.343591% |
| B | 6694 | 25 | 0.373469% |
| C | 6694 | 67 | 1.000896% |
| D | 6694 | 351 | 5.243502% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 6695 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7769 | 6695 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7769 | 6695 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7769 | 6695 | 256 | 256 | 3.30% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 14778 | 86.78 | 801 | 785 | 161.3 |
| A | 13 | 254 | 10191 | 58.33 | 801 | 785 | 161.3 |
| A | 0 | 226 | 6754 | 37.02 | 801 | 785 | 161.3 |
| B | 0 | 230 | 48405 | 311.72 | 805 | 785 | 152.8 |
| B | 12 | 111 | 18246 | 114.3 | 805 | 785 | 152.8 |
| B | 0 | 229 | 16575 | 103.36 | 805 | 785 | 152.8 |
| C | 14 | 238 | 124572 | 683.04 | 782 | 788 | 181.2 |
| C | 13 | 61 | 5529 | 26.16 | 782 | 788 | 181.2 |
| C | 8 | 128 | 5340 | 25.12 | 782 | 788 | 181.2 |
| D | 1 | 52 | 1421268 | 7091.7 | 756 | 742 | 200.3 |
| D | 7 | 38 | 369035 | 1838.63 | 756 | 742 | 200.3 |
| D | 14 | 35 | 133825 | 664.39 | 756 | 742 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

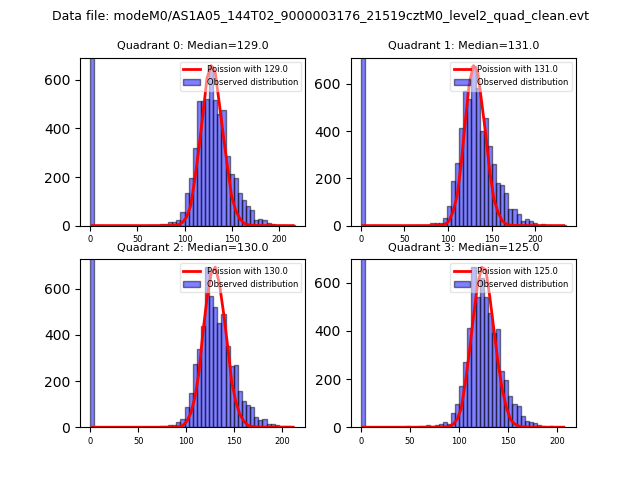

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

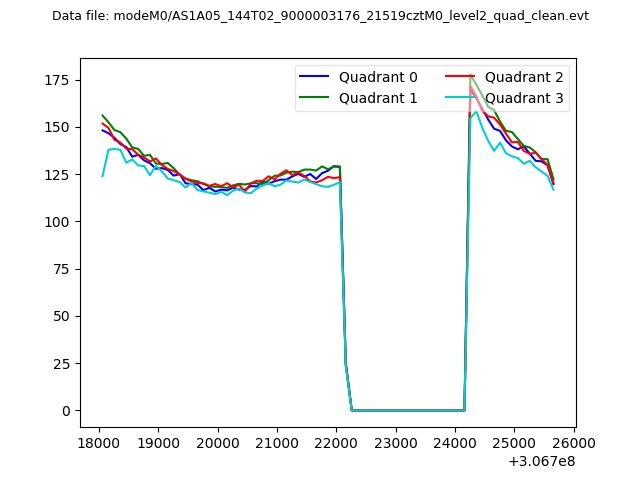

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

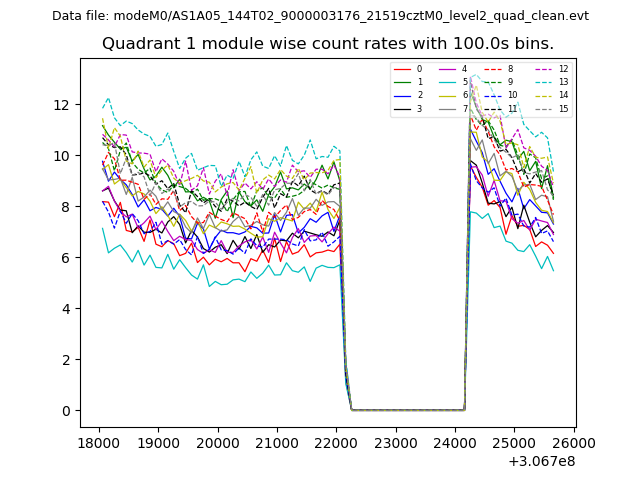

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

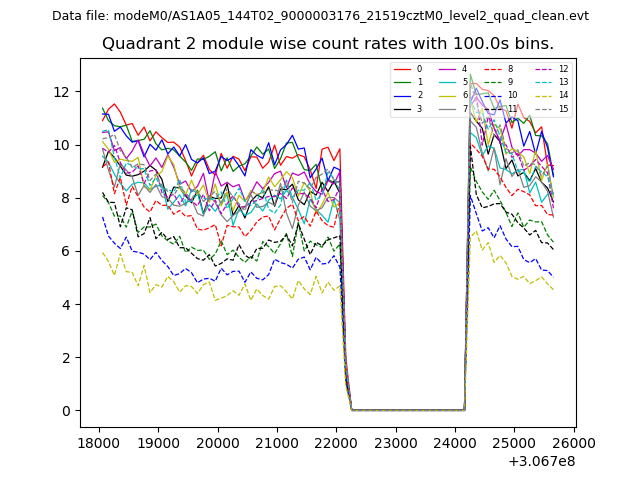

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

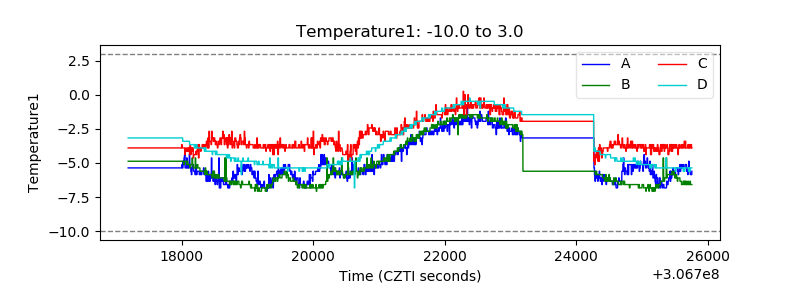

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

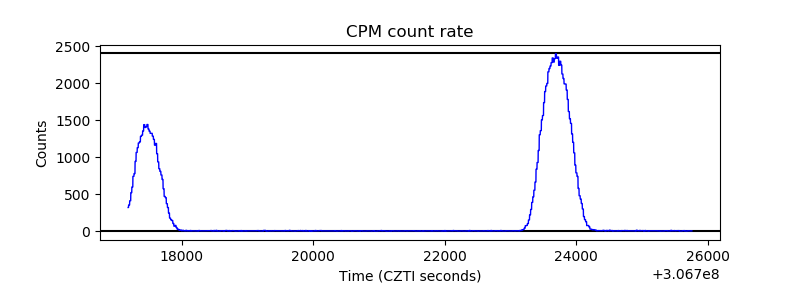

| _CPM_Rate |  |

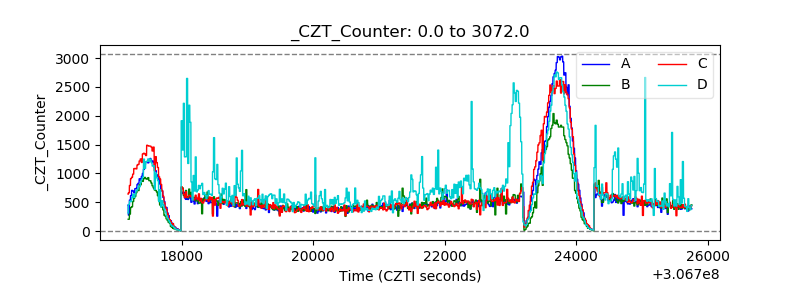

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

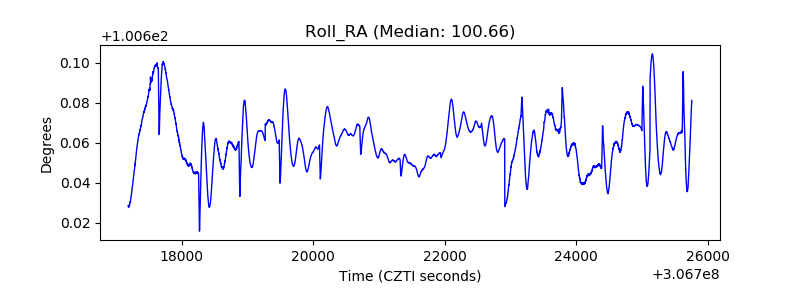

| _Roll_RA |  |
| Veto Counter |  |
