| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000003176_21523cztM0_level2.evt | modeM0/AS1A05_144T02_9000003176_21523cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,212,480 | 92,439,360 |
| Size | 438.9 MB | 88.2 MB |
| Events in quadrant A | 2,869,714 | 608,069 |
| Events in quadrant B | 2,936,596 | 624,765 |
| Events in quadrant C | 2,845,107 | 594,197 |
| Events in quadrant D | 4,896,457 | 571,285 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11910 | 1 |
| B | 0 | 12079 | 1 |
| C | 0 | 11872 | 1 |
| D | 0 | 18518 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5742 | 33 | 0.574713% |
| B | 5742 | 39 | 0.679206% |
| C | 5742 | 57 | 0.992685% |
| D | 5742 | 328 | 5.712295% |

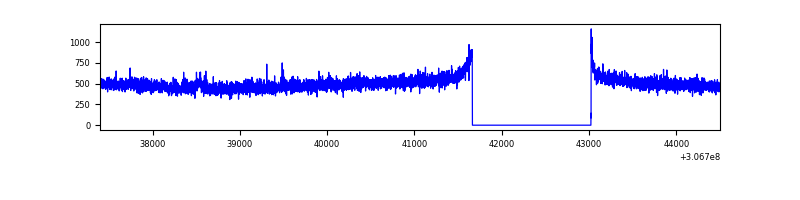

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7102 | 5743 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7102 | 5743 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7102 | 5743 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7102 | 5743 | 266 | 266 | 3.75% | 4.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 27400 | 181.95 | 736 | 722 | 146.6 |
| A | 13 | 254 | 8717 | 54.53 | 736 | 722 | 146.6 |
| A | 0 | 226 | 6454 | 39.09 | 736 | 722 | 146.6 |
| B | 0 | 190 | 20964 | 150.41 | 731 | 717 | 134.6 |
| B | 0 | 230 | 19201 | 137.31 | 731 | 717 | 134.6 |
| B | 12 | 111 | 15662 | 111.02 | 731 | 717 | 134.6 |
| C | 14 | 238 | 114789 | 719.77 | 696 | 701 | 158.5 |
| C | 3 | 233 | 14674 | 88.15 | 696 | 701 | 158.5 |
| C | 13 | 61 | 5034 | 27.34 | 696 | 701 | 158.5 |
| D | 1 | 52 | 1848513 | 10314.03 | 689 | 675 | 179.2 |
| D | 13 | 153 | 197724 | 1099.86 | 689 | 675 | 179.2 |
| D | 7 | 38 | 109491 | 607.38 | 689 | 675 | 179.2 |

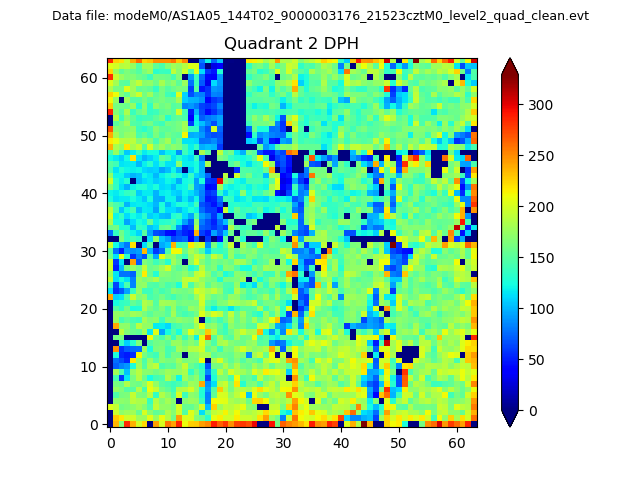

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

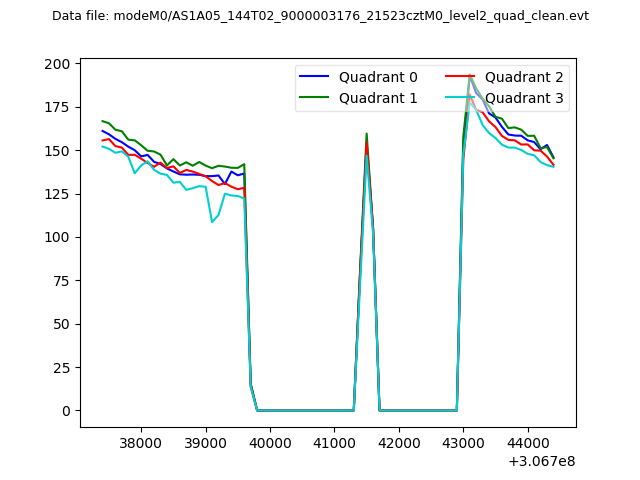

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

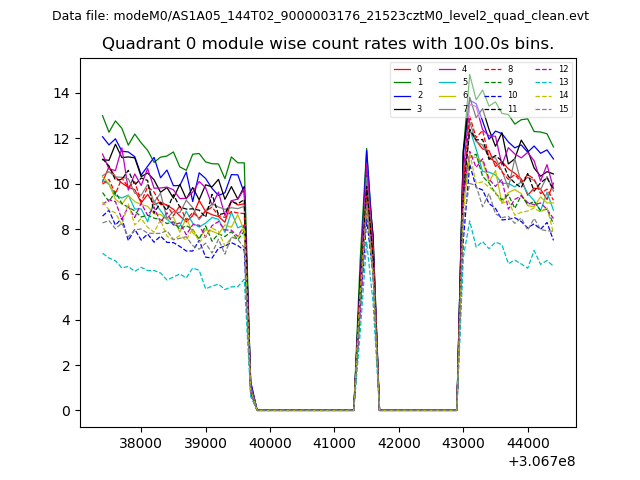

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

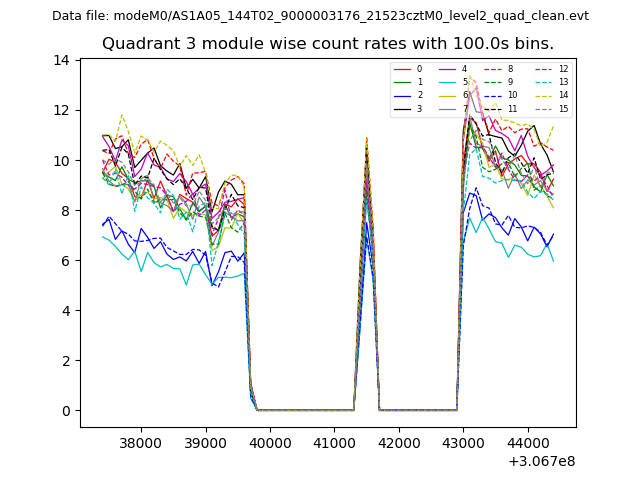

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

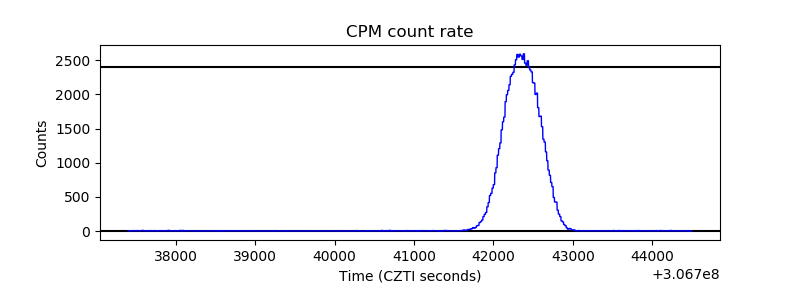

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

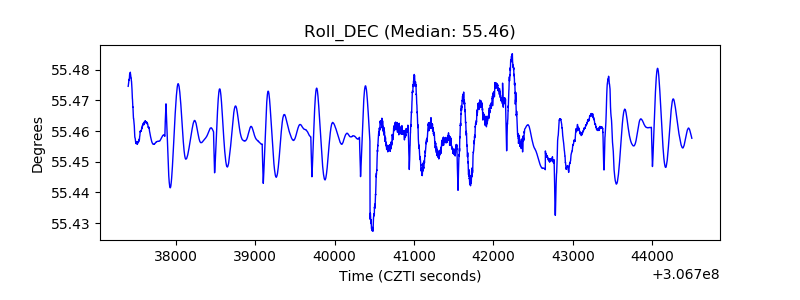

| _Roll_DEC |  |
| _Roll_RA |  |

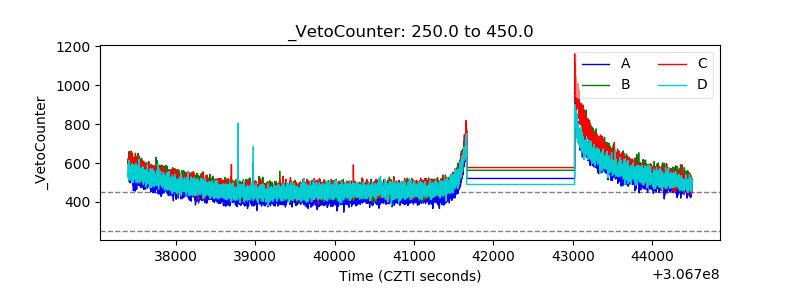

| Veto Counter |  |
