| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000003176_21524cztM0_level2.evt | modeM0/AS1A05_144T02_9000003176_21524cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,174,086,720 | 229,435,200 |
| Size | 1.1 GB | 218.8 MB |
| Events in quadrant A | 7,542,460 | 1,499,541 |
| Events in quadrant B | 7,770,275 | 1,530,642 |
| Events in quadrant C | 7,480,677 | 1,465,438 |
| Events in quadrant D | 11,739,985 | 1,407,430 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31540 | 4 |
| B | 0 | 32188 | 3 |
| C | 0 | 31449 | 3 |
| D | 0 | 45344 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 310 | 0 |
| B | 0 | 310 | 0 |
| C | 0 | 310 | 0 |
| D | 0 | 310 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15157 | 111 | 0.732335% |
| B | 15157 | 156 | 1.029227% |
| C | 15157 | 168 | 1.108399% |
| D | 15158 | 871 | 5.746141% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19137 | 15160 | 4 | 4 | 0.02% | 0.03% |  |
| B | 19137 | 15160 | 7 | 7 | 0.04% | 0.05% |  |
| C | 19137 | 15160 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19138 | 15161 | 646 | 646 | 3.38% | 4.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 51943 | 130.69 | 1939 | 1906 | 382.9 |
| A | 13 | 254 | 24209 | 58.25 | 1939 | 1906 | 382.9 |
| A | 15 | 48 | 21204 | 50.4 | 1939 | 1906 | 382.9 |
| B | 3 | 64 | 71302 | 196.65 | 1922 | 1880 | 353.0 |
| B | 0 | 230 | 70884 | 195.46 | 1922 | 1880 | 353.0 |
| B | 0 | 190 | 52211 | 142.57 | 1922 | 1880 | 353.0 |
| C | 14 | 238 | 298977 | 714.08 | 1833 | 1849 | 416.1 |
| C | 3 | 233 | 26198 | 58.52 | 1833 | 1849 | 416.1 |
| C | 13 | 61 | 12933 | 26.64 | 1833 | 1849 | 416.1 |
| D | 1 | 52 | 3154908 | 6689.53 | 1815 | 1777 | 471.4 |
| D | 7 | 38 | 826692 | 1750.1 | 1815 | 1777 | 471.4 |
| D | 13 | 153 | 429396 | 907.22 | 1815 | 1777 | 471.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

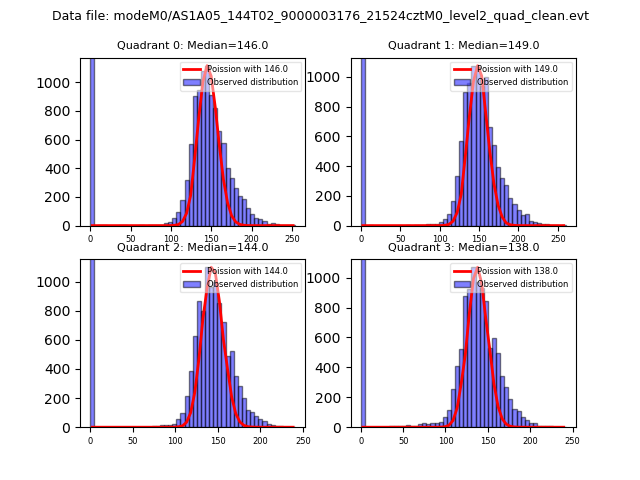

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

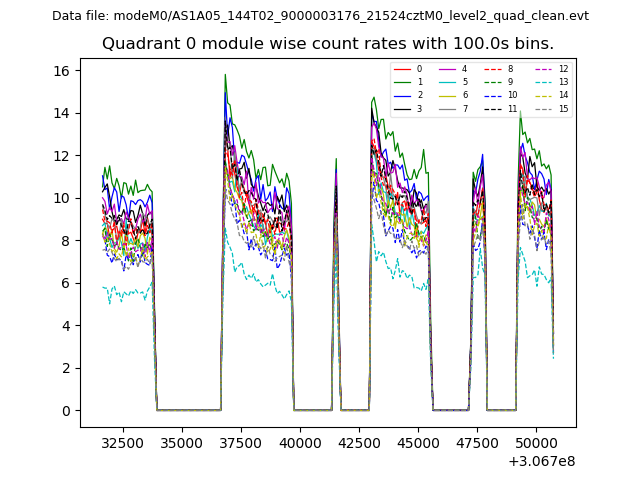

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

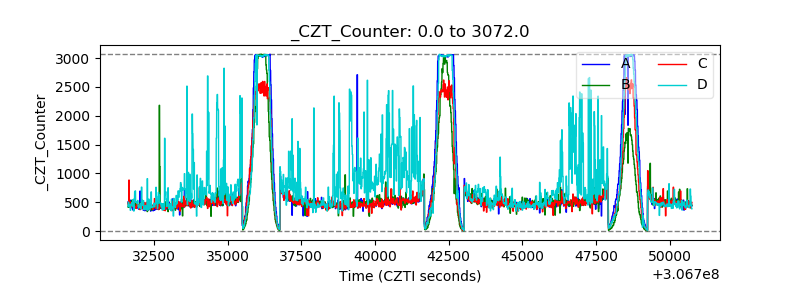

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
