| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_144T02_9000003176_21527cztM0_level2.evt | modeM0/AS1A05_144T02_9000003176_21527cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,327,360 | 100,811,520 |
| Size | 546.8 MB | 96.1 MB |
| Events in quadrant A | 3,392,378 | 644,625 |
| Events in quadrant B | 3,543,450 | 651,214 |
| Events in quadrant C | 4,990,061 | 627,631 |
| Events in quadrant D | 4,947,307 | 626,254 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14736 | 2 |
| B | 0 | 15043 | 2 |
| C | 0 | 19499 | 2 |
| D | 0 | 19472 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7230 | 66 | 0.912863% |
| B | 7230 | 92 | 1.272476% |
| C | 7231 | 303 | 4.190292% |
| D | 7231 | 446 | 6.167888% |

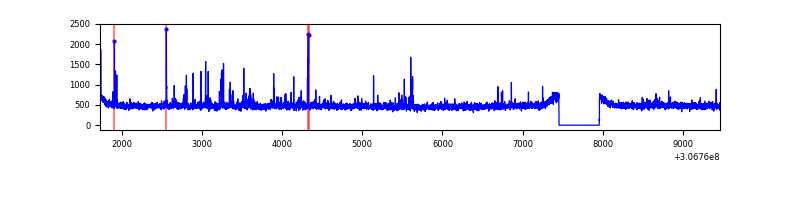

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

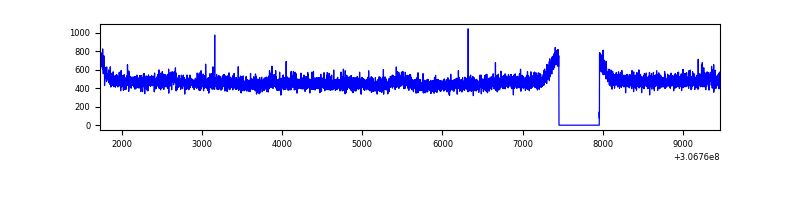

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 7231 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7735 | 7231 | 4 | 4 | 0.05% | 0.06% |  |

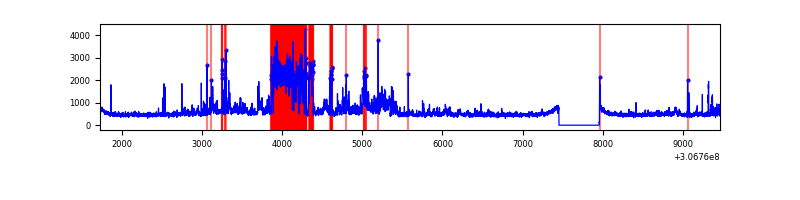

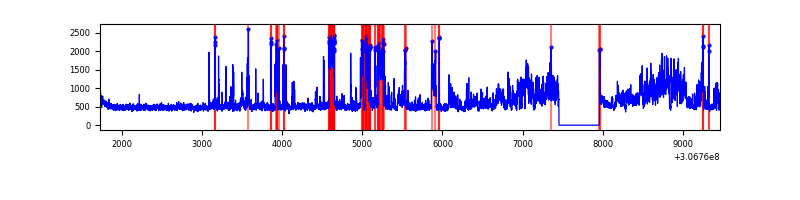

| C | 7736 | 7232 | 111 | 111 | 1.43% | 1.53% |  |
| D | 7736 | 7232 | 338 | 338 | 4.37% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 203 | 21596 | 117.87 | 871 | 853 | 176.0 |
| A | 13 | 254 | 12370 | 65.44 | 871 | 853 | 176.0 |
| A | 15 | 48 | 9270 | 47.83 | 871 | 853 | 176.0 |
| B | 0 | 230 | 36807 | 219.87 | 864 | 841 | 163.6 |
| B | 4 | 190 | 32704 | 194.79 | 864 | 841 | 163.6 |
| B | 0 | 219 | 26722 | 158.22 | 864 | 841 | 163.6 |
| C | 3 | 233 | 1639631 | 8587.86 | 824 | 830 | 190.8 |
| C | 14 | 238 | 129396 | 673.73 | 824 | 830 | 190.8 |
| C | 10 | 91 | 9954 | 47.81 | 824 | 830 | 190.8 |
| D | 7 | 38 | 900335 | 4322.68 | 820 | 798 | 208.1 |
| D | 14 | 35 | 346646 | 1661.96 | 820 | 798 | 208.1 |
| D | 5 | 222 | 286646 | 1373.63 | 820 | 798 | 208.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

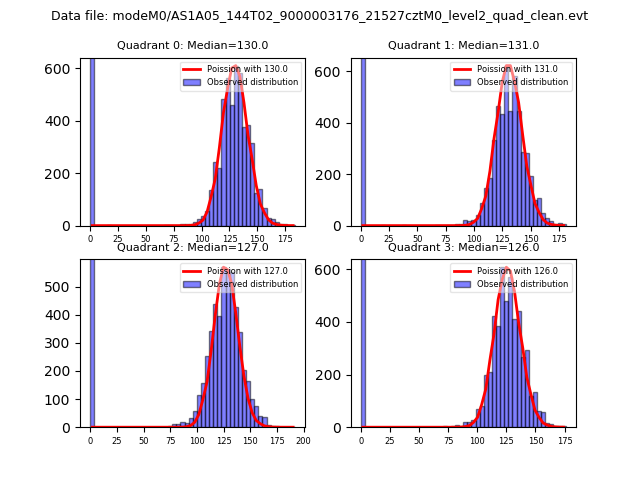

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

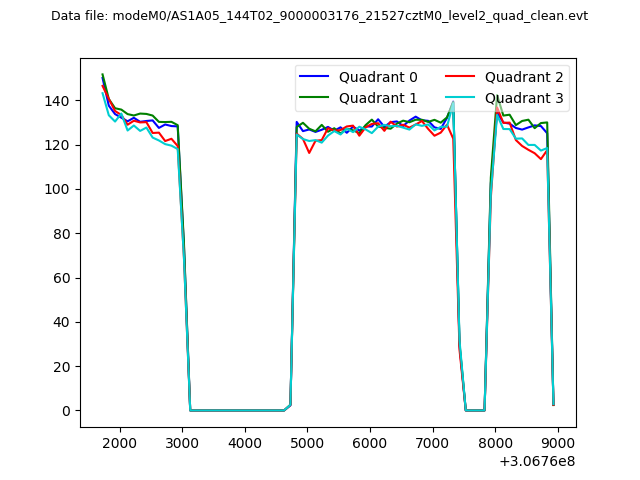

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

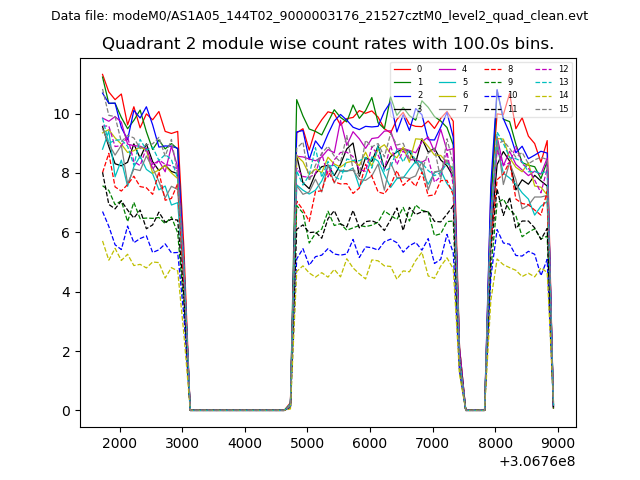

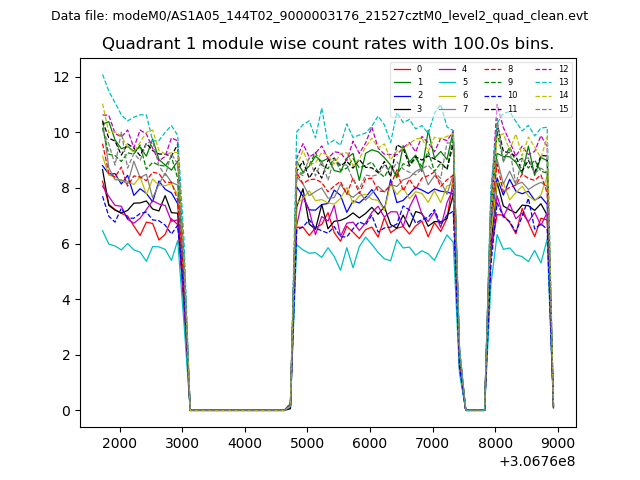

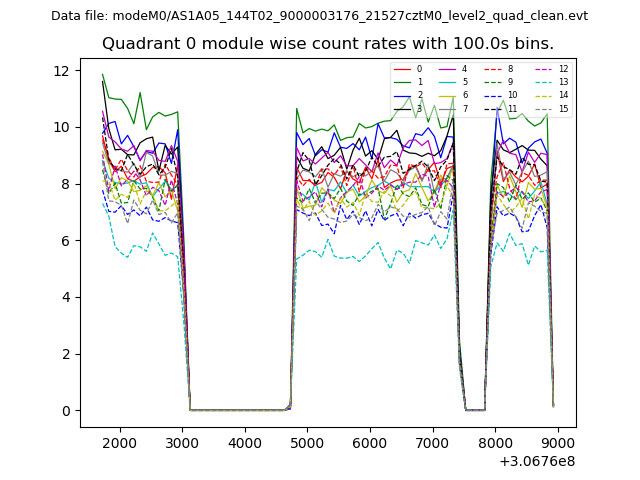

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

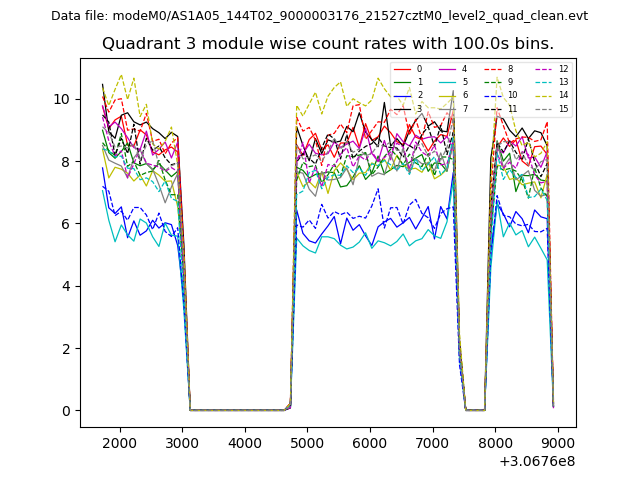

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

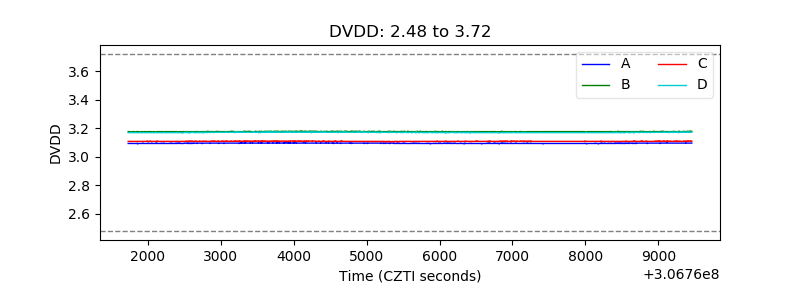

| D_VDD |  |

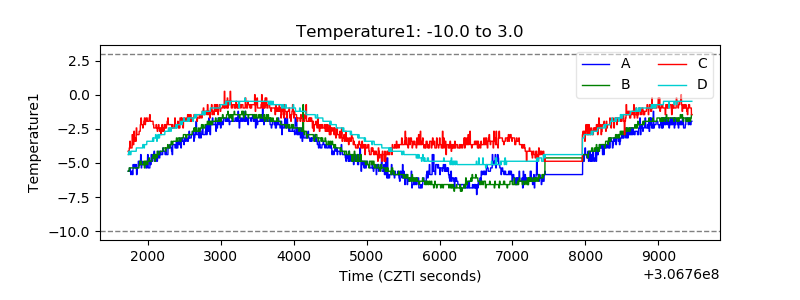

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

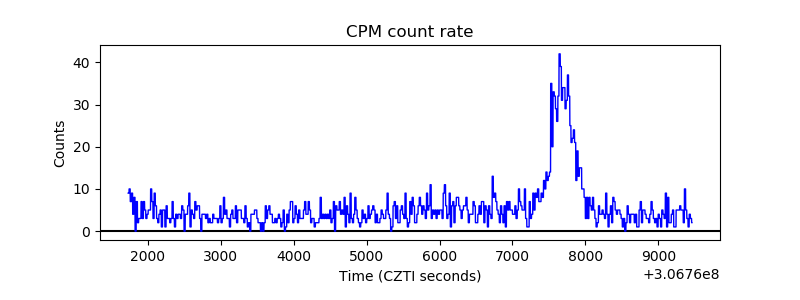

| _CPM_Rate |  |

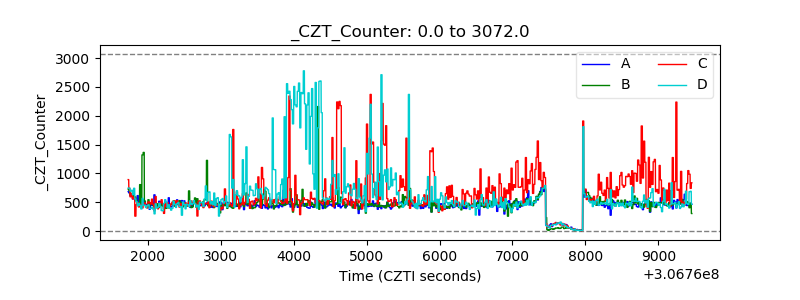

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

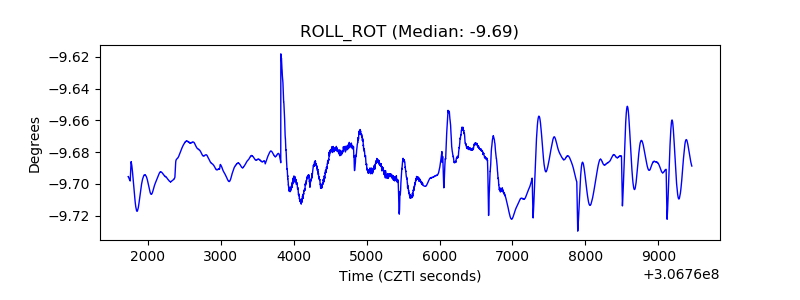

| _ROLL_ROT |  |

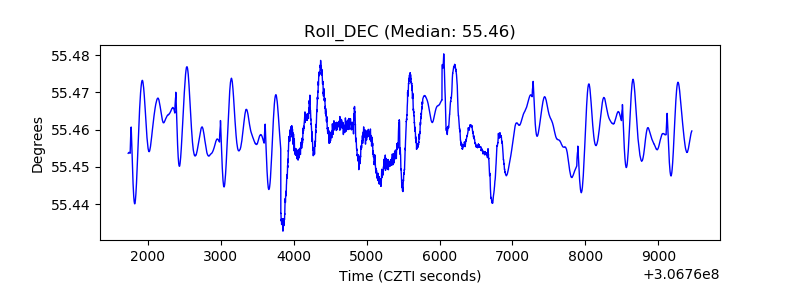

| _Roll_DEC |  |

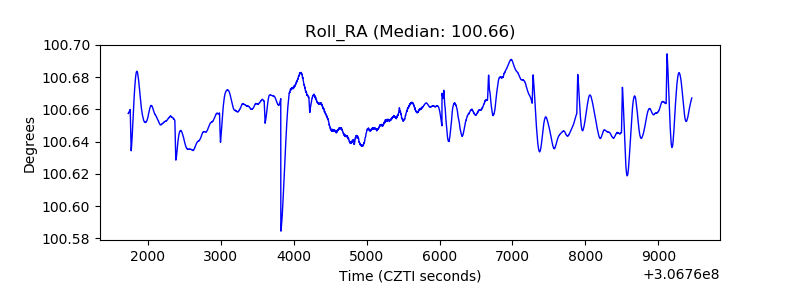

| _Roll_RA |  |

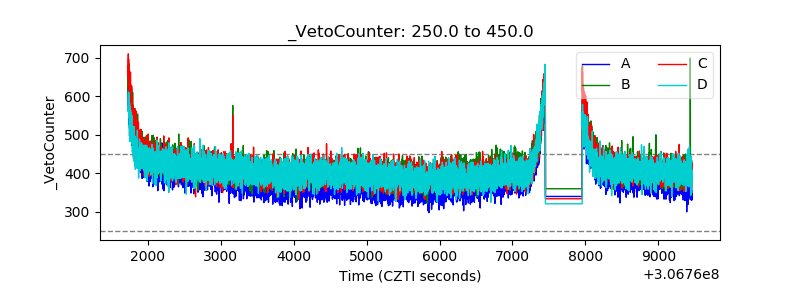

| Veto Counter |  |
