| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_166T01_9000003192_21544cztM0_level2.evt | modeM0/AS1A05_166T01_9000003192_21544cztM0_level2_quad_clean.evt |
| Size (bytes) | 162,999,360 | 43,989,120 |
| Size | 155.4 MB | 42.0 MB |
| Events in quadrant A | 1,087,993 | 295,138 |
| Events in quadrant B | 1,105,449 | 300,512 |
| Events in quadrant C | 1,081,390 | 290,921 |
| Events in quadrant D | 1,505,151 | 281,550 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4675 | 1 |
| B | 0 | 4721 | 1 |
| C | 0 | 4677 | 1 |
| D | 0 | 5983 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2266 | 9 | 0.397176% |
| B | 2266 | 16 | 0.706090% |
| C | 2266 | 17 | 0.750221% |
| D | 2266 | 32 | 1.412180% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2691 | 2267 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2691 | 2267 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2691 | 2267 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2691 | 2267 | 40 | 40 | 1.49% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 3502 | 54.76 | 281 | 275 | 58.9 |
| A | 3 | 137 | 2548 | 38.57 | 281 | 275 | 58.9 |
| A | 0 | 226 | 2548 | 38.57 | 281 | 275 | 58.9 |
| B | 0 | 230 | 9743 | 169.38 | 278 | 270 | 55.9 |
| B | 12 | 111 | 6636 | 113.83 | 278 | 270 | 55.9 |
| B | 11 | 111 | 5820 | 99.24 | 278 | 270 | 55.9 |
| C | 14 | 238 | 41850 | 641.53 | 265 | 266 | 64.8 |
| C | 3 | 233 | 4032 | 58.1 | 265 | 266 | 64.8 |
| C | 13 | 61 | 1846 | 24.38 | 265 | 266 | 64.8 |
| D | 1 | 52 | 236228 | 3511.4 | 269 | 261 | 67.2 |
| D | 14 | 35 | 177524 | 2637.83 | 269 | 261 | 67.2 |
| D | 13 | 153 | 28032 | 413.26 | 269 | 261 | 67.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

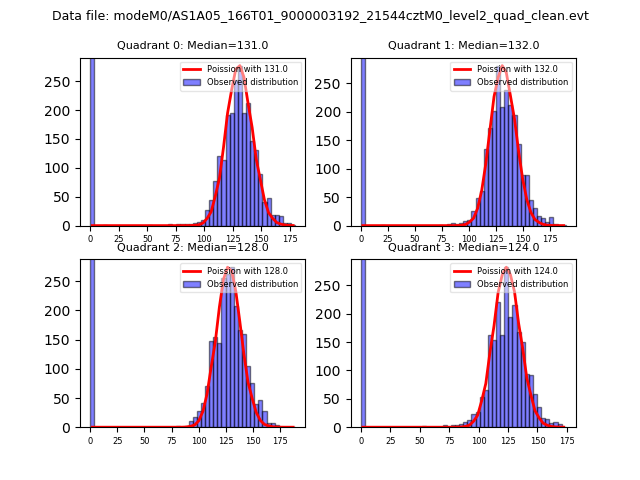

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

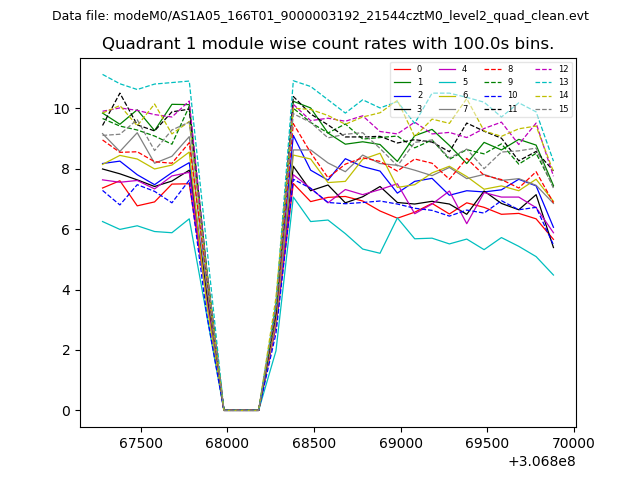

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

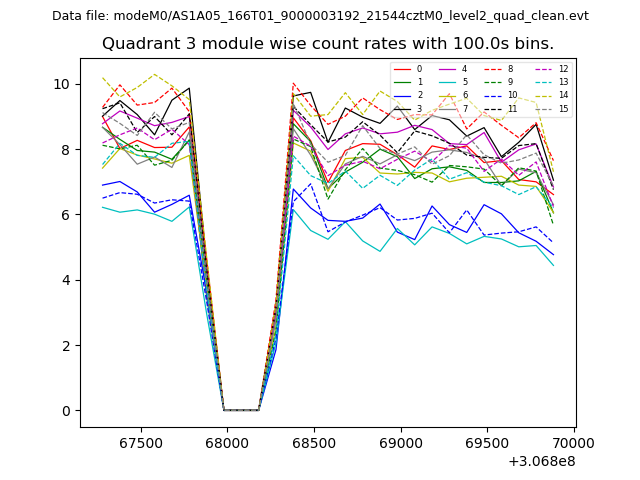

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

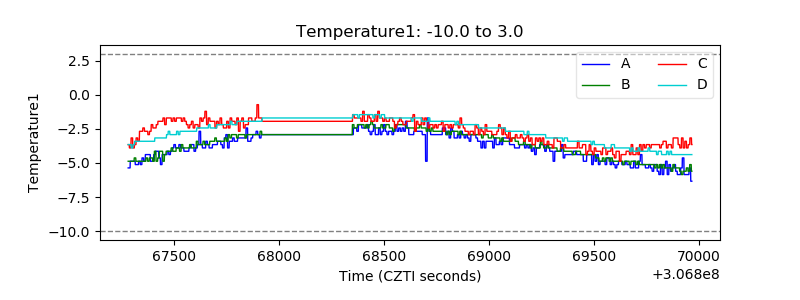

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

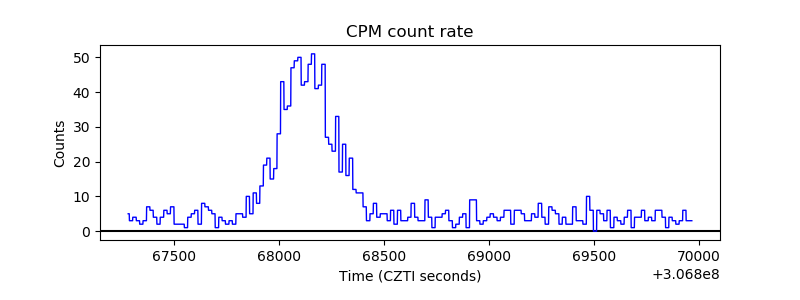

| _CPM_Rate |  |

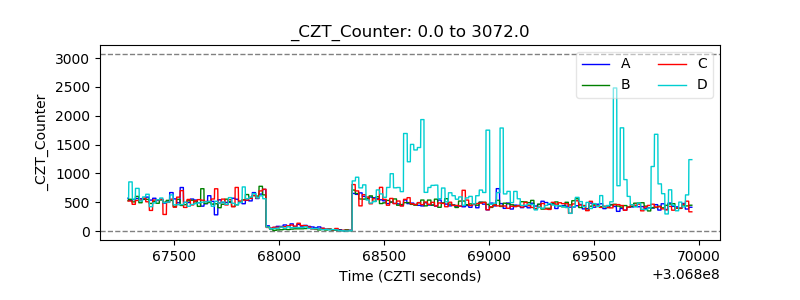

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
