| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_166T01_9000003192_21550cztM0_level2.evt | modeM0/AS1A05_166T01_9000003192_21550cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,641,920 | 71,112,960 |
| Size | 417.4 MB | 67.8 MB |
| Events in quadrant A | 3,121,168 | 431,885 |
| Events in quadrant B | 3,306,329 | 440,547 |
| Events in quadrant C | 3,201,018 | 431,761 |
| Events in quadrant D | 3,206,521 | 418,694 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13063 | 1 |
| B | 0 | 13665 | 2 |
| C | 0 | 13219 | 1 |
| D | 0 | 13507 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 27 | 0.438098% |
| B | 6162 | 38 | 0.616683% |
| C | 6163 | 58 | 0.941100% |
| D | 6163 | 34 | 0.551679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 6164 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7382 | 6163 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7383 | 6164 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7383 | 6164 | 17 | 17 | 0.23% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 81281 | 513.05 | 789 | 774 | 156.9 |
| A | 13 | 254 | 9069 | 52.86 | 789 | 774 | 156.9 |
| A | 0 | 226 | 6828 | 38.58 | 789 | 774 | 156.9 |
| B | 0 | 230 | 72753 | 488.63 | 793 | 776 | 147.3 |
| B | 0 | 228 | 34806 | 231.02 | 793 | 776 | 147.3 |
| B | 3 | 64 | 33131 | 219.65 | 793 | 776 | 147.3 |
| C | 14 | 238 | 125129 | 705.6 | 768 | 776 | 176.2 |
| C | 3 | 233 | 80822 | 454.2 | 768 | 776 | 176.2 |
| C | 13 | 61 | 5333 | 25.86 | 768 | 776 | 176.2 |
| D | 1 | 52 | 138523 | 738.59 | 772 | 751 | 186.5 |
| D | 13 | 153 | 44200 | 232.93 | 772 | 751 | 186.5 |
| D | 2 | 234 | 25481 | 132.58 | 772 | 751 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

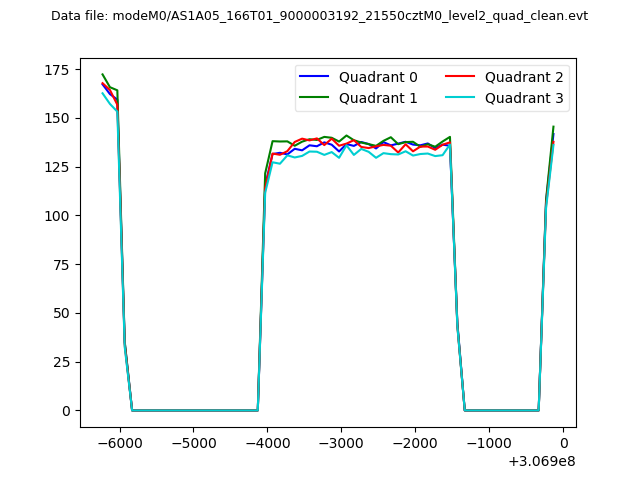

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

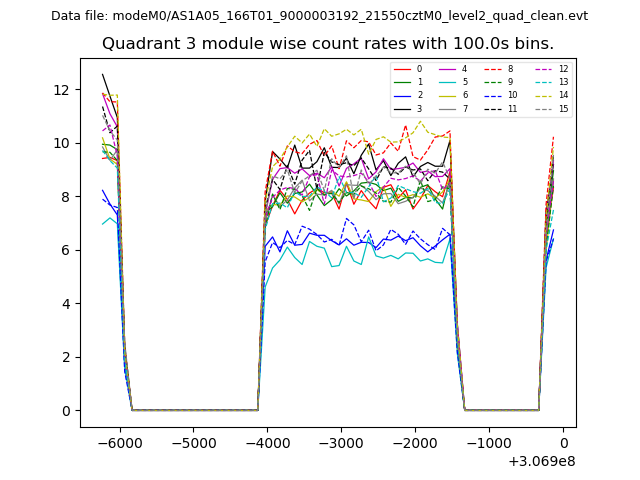

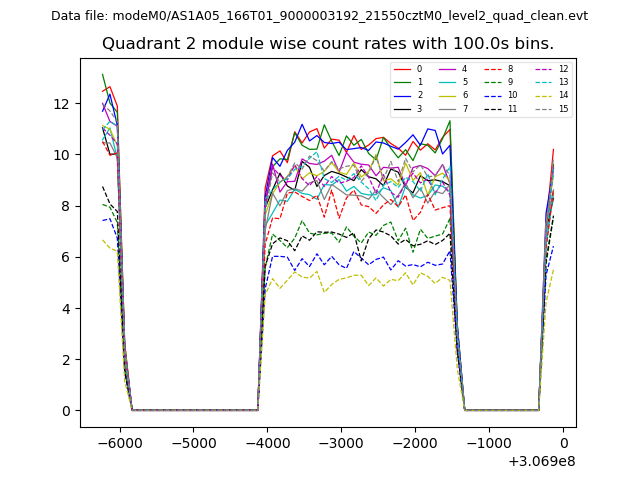

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

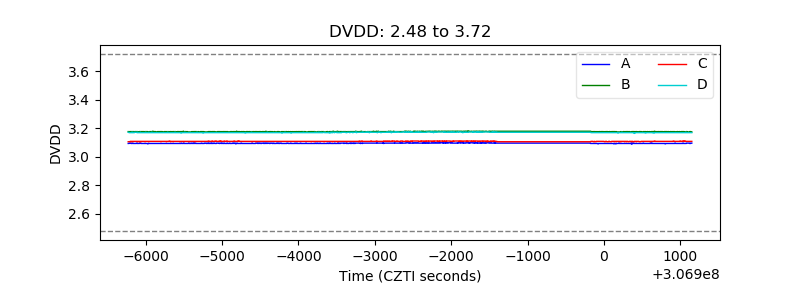

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

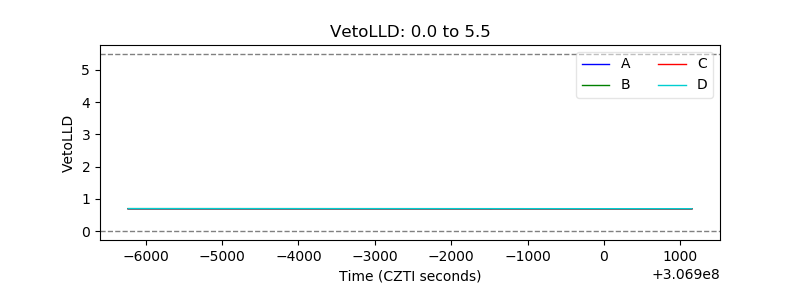

| Veto LLD |  |
| Alpha Counter |  |

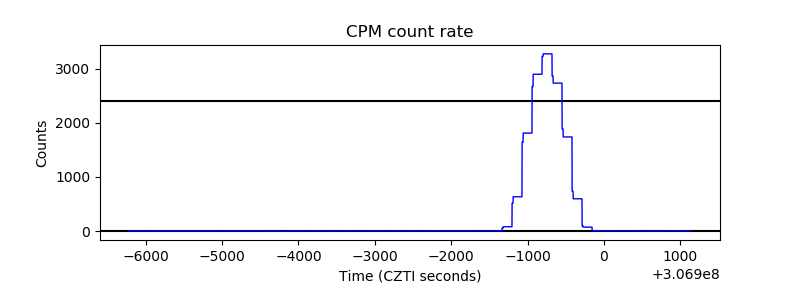

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
