| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_166T01_9000003192_21557cztM0_level2.evt | modeM0/AS1A05_166T01_9000003192_21557cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,090,601,280 | 212,584,320 |
| Size | 1.0 GB | 202.7 MB |
| Events in quadrant A | 6,258,083 | 1,413,003 |
| Events in quadrant B | 6,920,554 | 1,415,903 |
| Events in quadrant C | 6,421,686 | 1,393,937 |
| Events in quadrant D | 12,534,918 | 1,301,522 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27234 | 2 |
| B | 0 | 28823 | 2 |
| C | 0 | 27749 | 2 |
| D | 0 | 46514 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 0 |
| B | 0 | 268 | 0 |
| C | 0 | 268 | 0 |
| D | 0 | 268 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13239 | 189 | 1.427600% |
| B | 13239 | 219 | 1.654203% |
| C | 13240 | 245 | 1.850453% |
| D | 13240 | 1000 | 7.552870% |

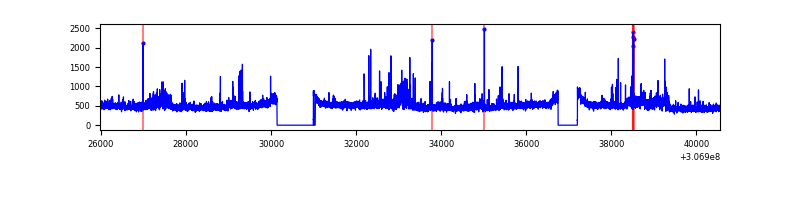

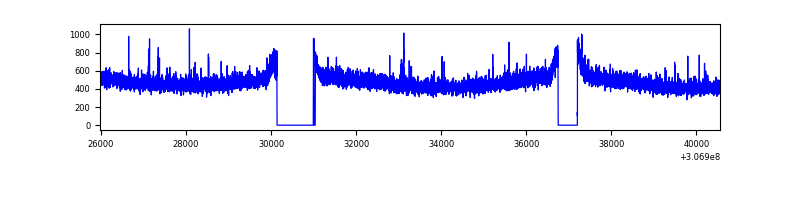

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14579 | 13242 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14579 | 13242 | 7 | 7 | 0.05% | 0.05% |  |
| C | 14580 | 13243 | 1 | 1 | 0.01% | 0.01% |  |
| D | 14580 | 13243 | 792 | 792 | 5.43% | 5.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 24429 | 70.6 | 1617 | 1584 | 323.6 |
| A | 13 | 254 | 21652 | 62.02 | 1617 | 1584 | 323.6 |
| A | 0 | 226 | 14024 | 38.45 | 1617 | 1584 | 323.6 |
| B | 0 | 228 | 166972 | 550.44 | 1605 | 1567 | 300.5 |
| B | 0 | 189 | 158823 | 523.32 | 1605 | 1567 | 300.5 |
| B | 0 | 230 | 148676 | 489.56 | 1605 | 1567 | 300.5 |
| C | 14 | 238 | 243085 | 679.36 | 1539 | 1548 | 355.5 |
| C | 3 | 233 | 175594 | 489.53 | 1539 | 1548 | 355.5 |
| C | 13 | 61 | 10982 | 26.53 | 1539 | 1548 | 355.5 |
| D | 1 | 52 | 5110952 | 13797.47 | 1532 | 1489 | 370.3 |
| D | 2 | 136 | 464253 | 1249.64 | 1532 | 1489 | 370.3 |
| D | 14 | 35 | 415054 | 1116.78 | 1532 | 1489 | 370.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

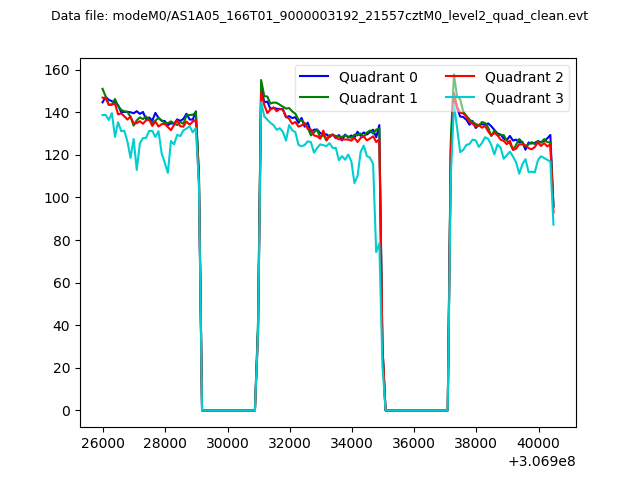

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

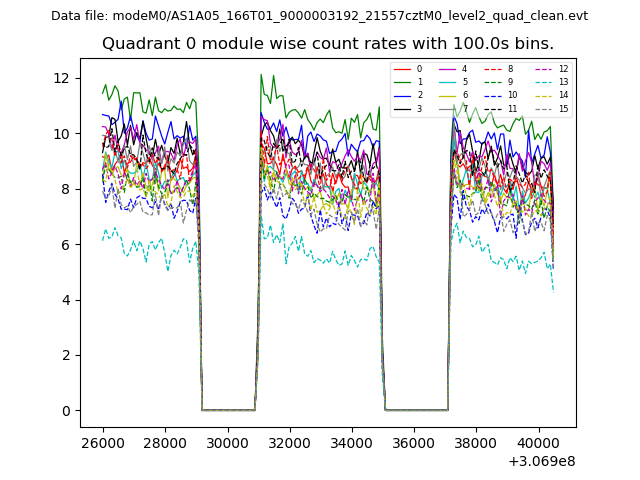

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

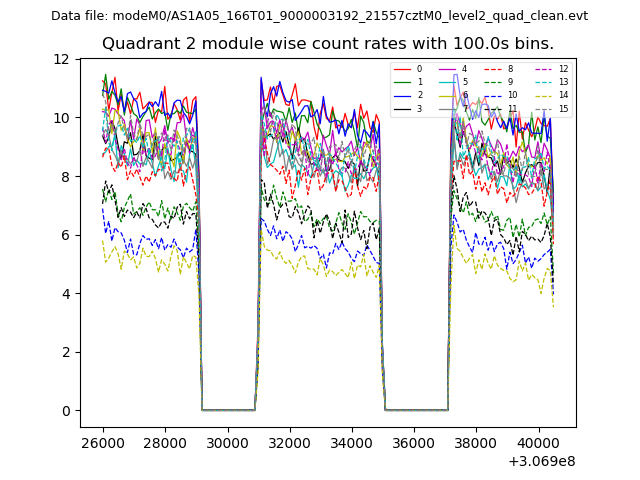

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

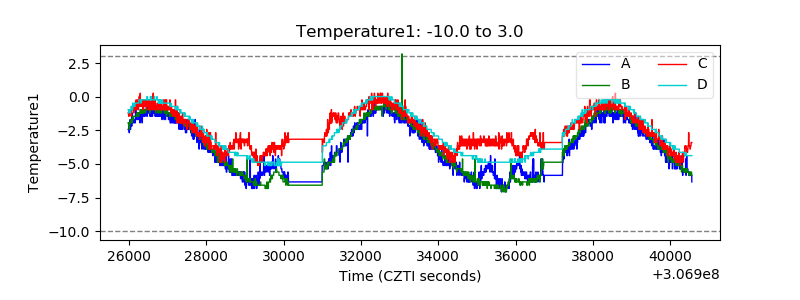

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

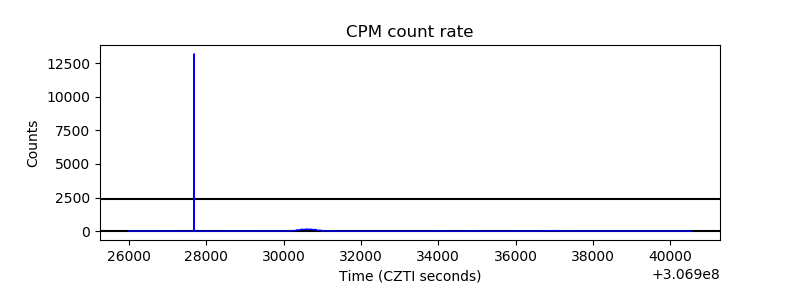

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

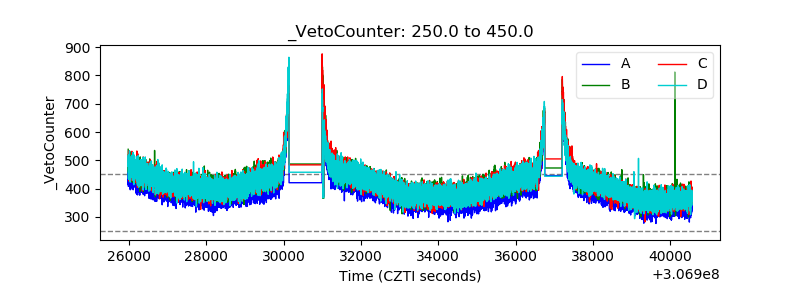

| Veto Counter |  |
