| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_138T03_9000003178_21536cztM0_level2.evt | modeM0/AS1T03_138T03_9000003178_21536cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,160,640 | 89,403,840 |
| Size | 430.3 MB | 85.3 MB |
| Events in quadrant A | 3,125,875 | 583,569 |
| Events in quadrant B | 3,229,919 | 600,375 |
| Events in quadrant C | 3,134,462 | 560,348 |
| Events in quadrant D | 3,753,456 | 531,820 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13011 | 2 |
| B | 0 | 13428 | 2 |
| C | 0 | 13118 | 2 |
| D | 0 | 15214 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6178 | 17 | 0.275170% |
| B | 6179 | 22 | 0.356045% |
| C | 6179 | 49 | 0.793009% |
| D | 6179 | 117 | 1.893510% |

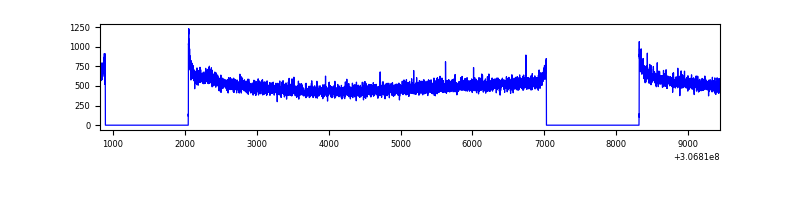

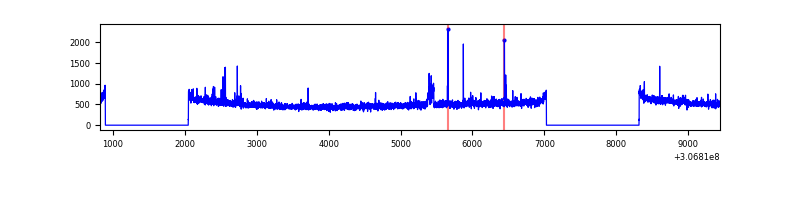

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8623 | 6180 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8624 | 6181 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8624 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8624 | 6181 | 75 | 75 | 0.87% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 43747 | 271.35 | 800 | 788 | 158.3 |
| A | 13 | 254 | 9162 | 52.89 | 800 | 788 | 158.3 |
| A | 0 | 226 | 6976 | 39.09 | 800 | 788 | 158.3 |
| B | 0 | 230 | 56224 | 365.36 | 804 | 786 | 151.7 |
| B | 12 | 111 | 17879 | 112.65 | 804 | 786 | 151.7 |
| B | 11 | 111 | 15590 | 97.57 | 804 | 786 | 151.7 |
| C | 14 | 238 | 122889 | 685.01 | 765 | 772 | 178.3 |
| C | 3 | 233 | 21357 | 115.47 | 765 | 772 | 178.3 |
| C | 13 | 61 | 5349 | 25.67 | 765 | 772 | 178.3 |
| D | 1 | 52 | 521843 | 2861.41 | 758 | 738 | 182.1 |
| D | 14 | 35 | 126605 | 691.14 | 758 | 738 | 182.1 |
| D | 7 | 38 | 81324 | 442.5 | 758 | 738 | 182.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

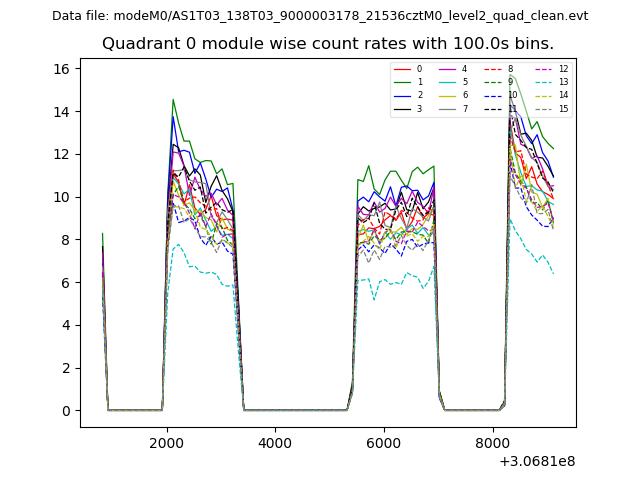

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

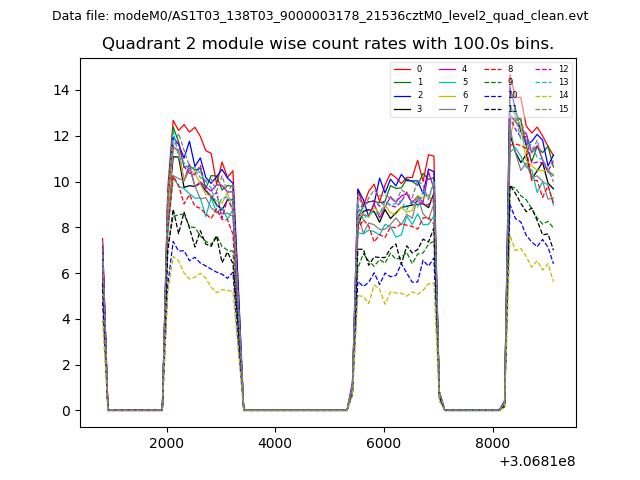

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

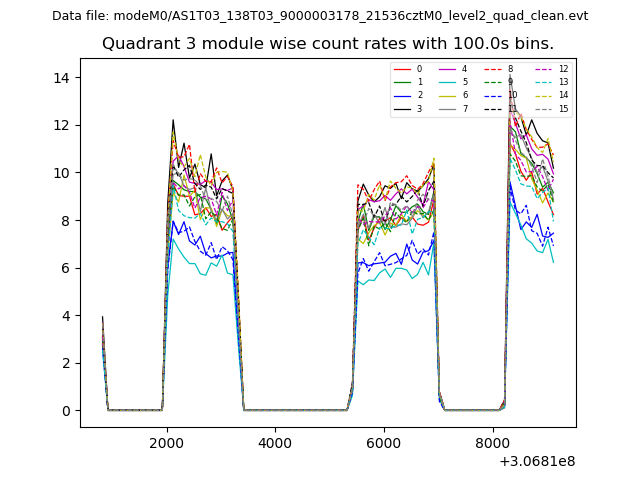

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

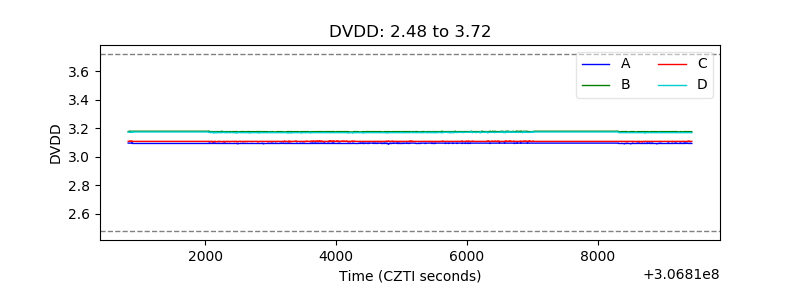

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

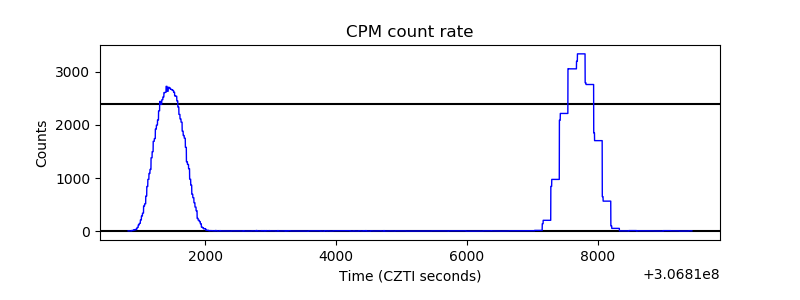

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

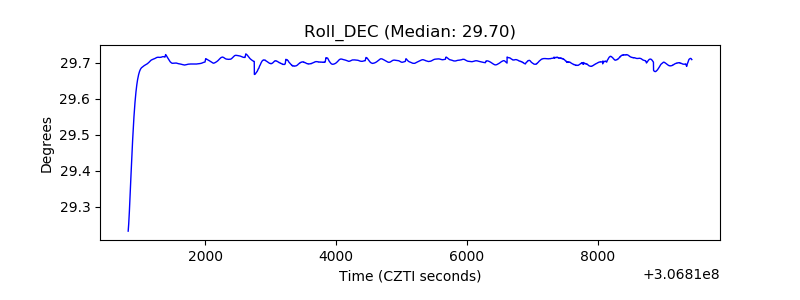

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
