| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_138T05_9000003182_21540cztM0_level2.evt | modeM0/AS1T03_138T05_9000003182_21540cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,213,440 | 64,722,240 |
| Size | 493.3 MB | 61.7 MB |
| Events in quadrant A | 2,561,540 | 450,127 |
| Events in quadrant B | 2,573,602 | 458,833 |
| Events in quadrant C | 2,538,417 | 429,456 |
| Events in quadrant D | 7,649,756 | 268,680 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10513 | 1 |
| B | 0 | 10510 | 1 |
| C | 0 | 10401 | 1 |
| D | 0 | 26067 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5018 | 8 | 0.159426% |
| B | 5018 | 20 | 0.398565% |
| C | 5018 | 25 | 0.498206% |
| D | 5018 | 1940 | 38.660821% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5018 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5018 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5018 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5018 | 5018 | 1900 | 1900 | 37.86% | 37.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 40986 | 309.16 | 653 | 641 | 130.5 |
| A | 13 | 254 | 8008 | 56.45 | 653 | 641 | 130.5 |
| A | 0 | 226 | 5597 | 37.98 | 653 | 641 | 130.5 |
| B | 12 | 111 | 14697 | 115.1 | 650 | 636 | 122.2 |
| B | 11 | 111 | 12784 | 99.44 | 650 | 636 | 122.2 |
| B | 14 | 111 | 11591 | 89.67 | 650 | 636 | 122.2 |
| C | 14 | 238 | 99712 | 688.98 | 619 | 626 | 143.8 |
| C | 0 | 239 | 15412 | 102.81 | 619 | 626 | 143.8 |
| C | 4 | 175 | 8324 | 53.53 | 619 | 626 | 143.8 |
| D | 1 | 52 | 5475343 | 44358.78 | 507 | 492 | 123.4 |
| D | 14 | 35 | 158149 | 1277.38 | 507 | 492 | 123.4 |
| D | 1 | 20 | 54739 | 439.52 | 507 | 492 | 123.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

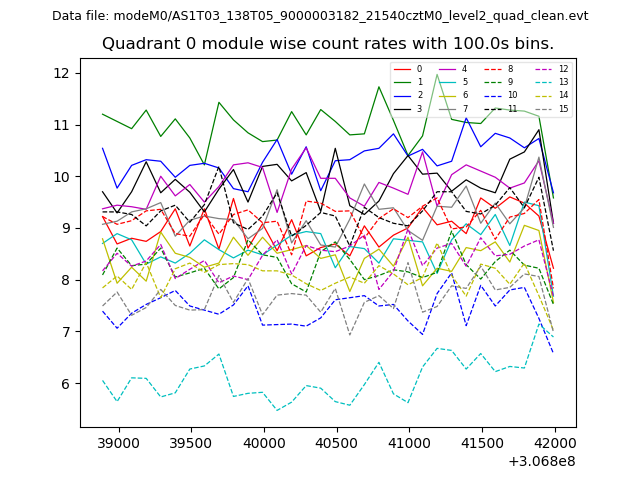

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

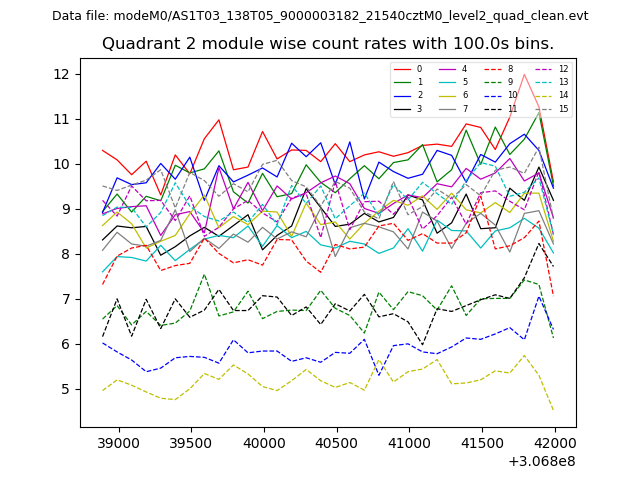

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

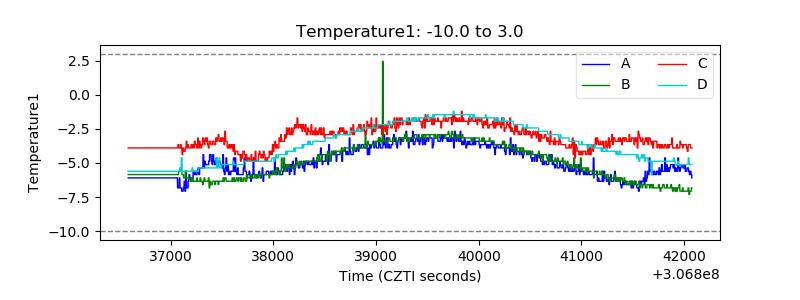

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

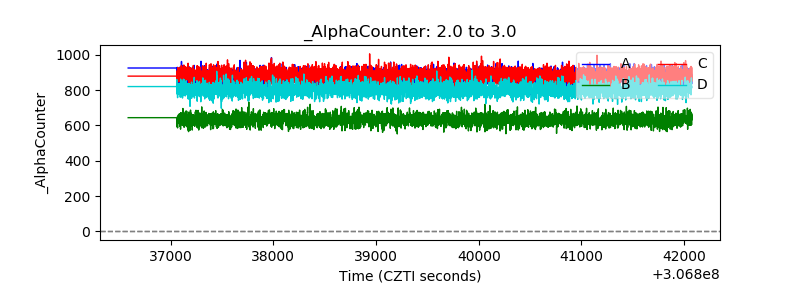

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

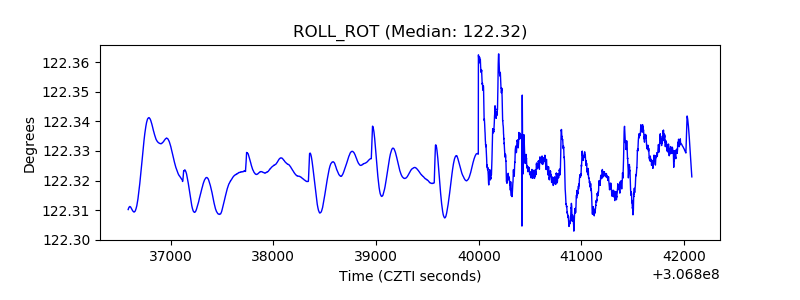

| _ROLL_ROT |  |
| _Roll_DEC |  |

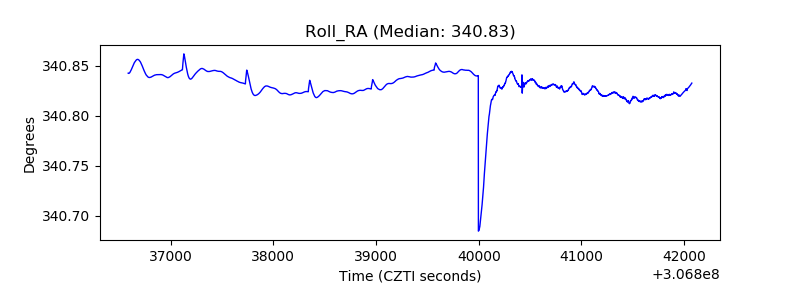

| _Roll_RA |  |
| Veto Counter |  |
