| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_138T09_9000003190_21544cztM0_level2.evt | modeM0/AS1T03_138T09_9000003190_21544cztM0_level2_quad_clean.evt |
| Size (bytes) | 285,960,960 | 69,177,600 |
| Size | 272.7 MB | 66.0 MB |
| Events in quadrant A | 2,020,725 | 457,218 |
| Events in quadrant B | 2,002,424 | 465,791 |
| Events in quadrant C | 1,978,408 | 442,830 |
| Events in quadrant D | 2,373,687 | 434,932 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8842 | 1 |
| B | 0 | 8766 | 1 |
| C | 0 | 8683 | 1 |
| D | 0 | 9709 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 139949759953800 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4178 | 101 | 2.417425% |
| B | 4178 | 120 | 2.872188% |
| C | 4178 | 124 | 2.967927% |
| D | 4178 | 96 | 2.297750% |

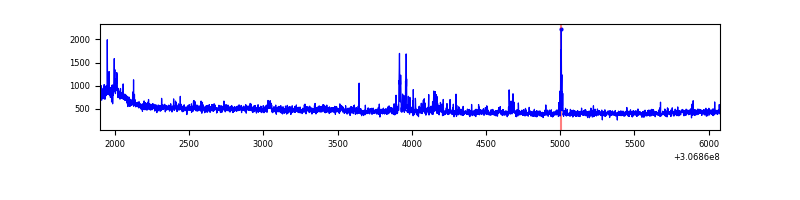

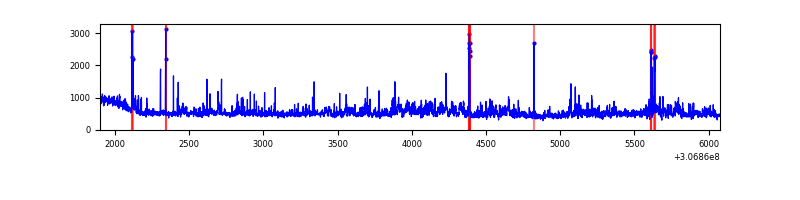

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4178 | 4178 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4178 | 4178 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4178 | 4178 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4178 | 4178 | 18 | 18 | 0.43% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 98142 | 946.98 | 497 | 485 | 103.1 |
| A | 13 | 254 | 6229 | 55.7 | 497 | 485 | 103.1 |
| A | 12 | 96 | 4455 | 38.5 | 497 | 485 | 103.1 |
| B | 0 | 230 | 34798 | 352.91 | 496 | 482 | 97.2 |
| B | 0 | 190 | 15002 | 149.32 | 496 | 482 | 97.2 |
| B | 12 | 111 | 11626 | 114.6 | 496 | 482 | 97.2 |
| C | 14 | 238 | 75786 | 658.11 | 480 | 484 | 114.4 |
| C | 0 | 239 | 20299 | 173.18 | 480 | 484 | 114.4 |
| C | 3 | 233 | 5086 | 40.22 | 480 | 484 | 114.4 |
| D | 14 | 35 | 304162 | 2505.77 | 489 | 474 | 121.2 |
| D | 1 | 52 | 170754 | 1405.0 | 489 | 474 | 121.2 |
| D | 13 | 153 | 28224 | 228.97 | 489 | 474 | 121.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

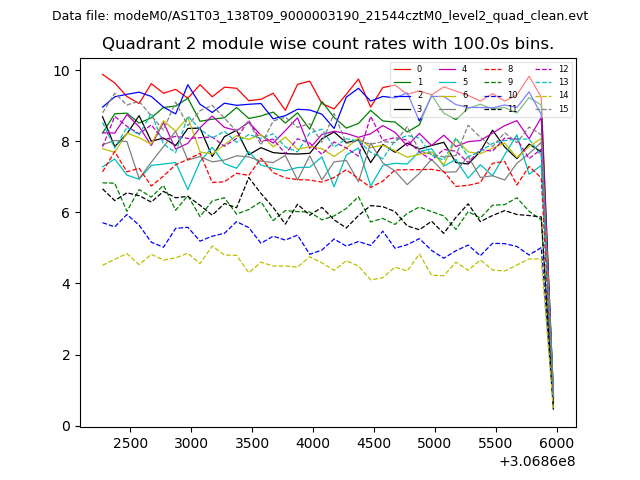

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

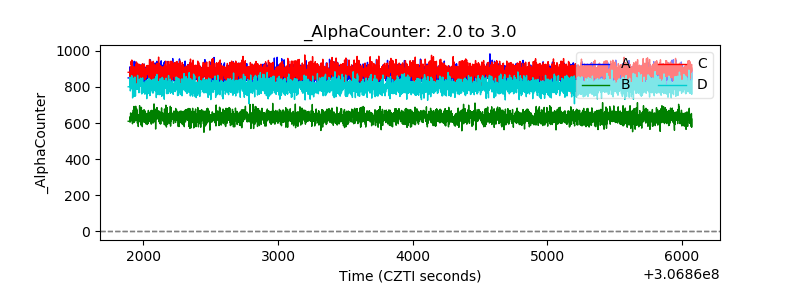

| Alpha Counter |  |

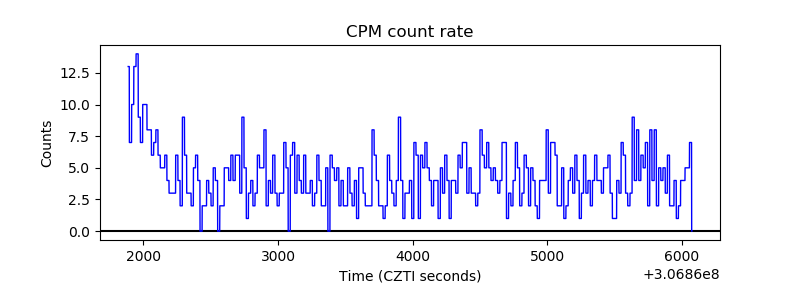

| _CPM_Rate |  |

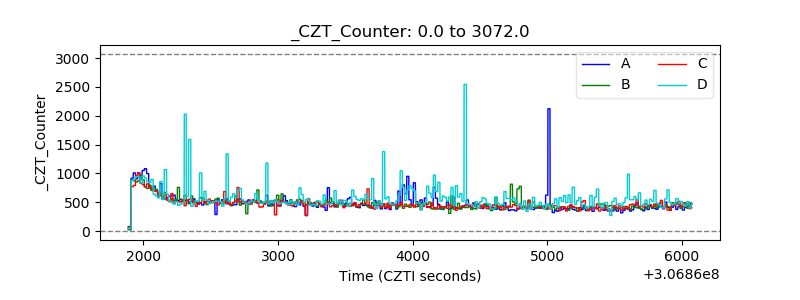

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

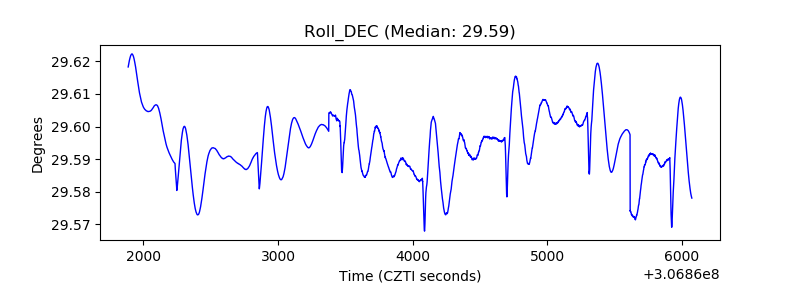

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
