| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T02_9000003194_21557cztM0_level2.evt | modeM0/AS1A06_009T02_9000003194_21557cztM0_level2_quad_clean.evt |
| Size (bytes) | 334,670,400 | 49,835,520 |
| Size | 319.2 MB | 47.5 MB |
| Events in quadrant A | 2,094,611 | 311,056 |
| Events in quadrant B | 2,191,725 | 316,861 |
| Events in quadrant C | 2,080,112 | 308,145 |
| Events in quadrant D | 3,491,952 | 285,670 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8681 | 1 |
| B | 0 | 8891 | 1 |
| C | 0 | 8643 | 1 |
| D | 0 | 13350 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4073 | 88 | 2.160570% |
| B | 4073 | 115 | 2.823472% |
| C | 4073 | 99 | 2.430641% |
| D | 4072 | 239 | 5.869352% |

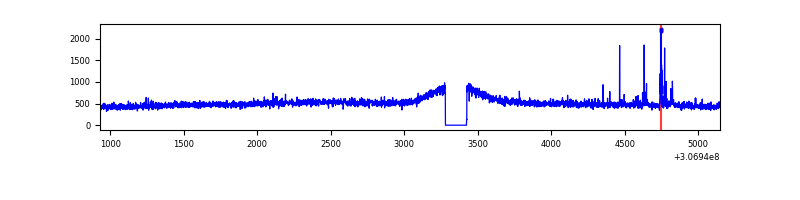

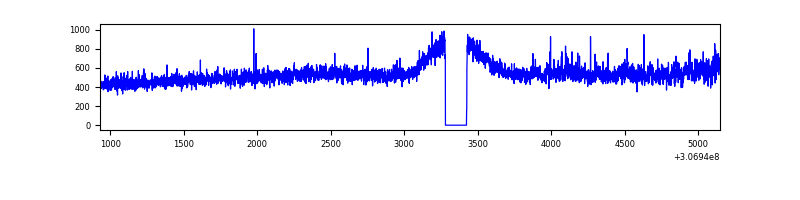

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4218 | 4074 | 2 | 2 | 0.05% | 0.05% |  |
| B | 4218 | 4074 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4218 | 4074 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4217 | 4073 | 122 | 122 | 2.89% | 3.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 36333 | 328.36 | 534 | 523 | 109.1 |
| A | 13 | 254 | 5287 | 43.68 | 534 | 523 | 109.1 |
| A | 3 | 137 | 4642 | 37.77 | 534 | 523 | 109.1 |
| B | 0 | 189 | 54384 | 522.32 | 530 | 517 | 103.1 |
| B | 0 | 230 | 29195 | 278.08 | 530 | 517 | 103.1 |
| B | 0 | 219 | 24920 | 236.62 | 530 | 517 | 103.1 |
| C | 14 | 238 | 79021 | 652.48 | 510 | 513 | 120.3 |
| C | 8 | 128 | 3738 | 26.8 | 510 | 513 | 120.3 |
| C | 3 | 233 | 3602 | 25.67 | 510 | 513 | 120.3 |
| D | 1 | 52 | 1012101 | 8009.04 | 513 | 497 | 126.3 |
| D | 2 | 136 | 242893 | 1919.09 | 513 | 497 | 126.3 |
| D | 14 | 35 | 104523 | 823.59 | 513 | 497 | 126.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

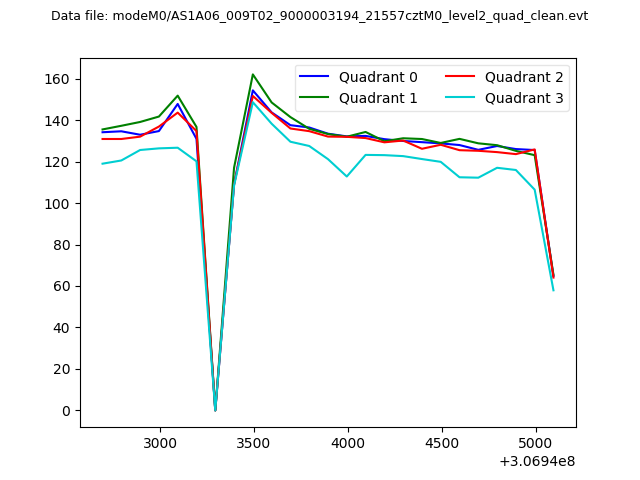

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

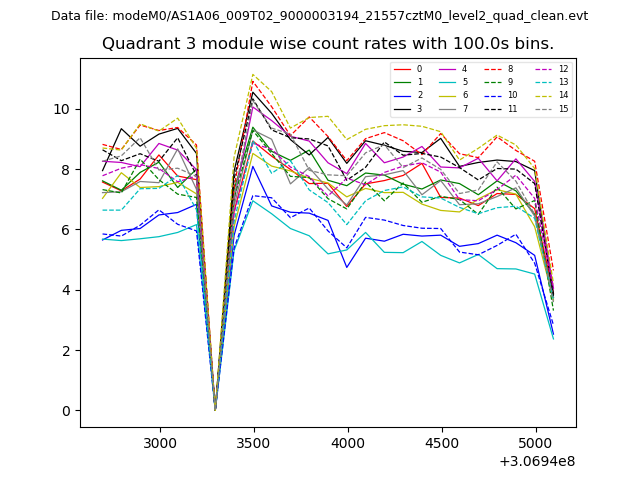

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

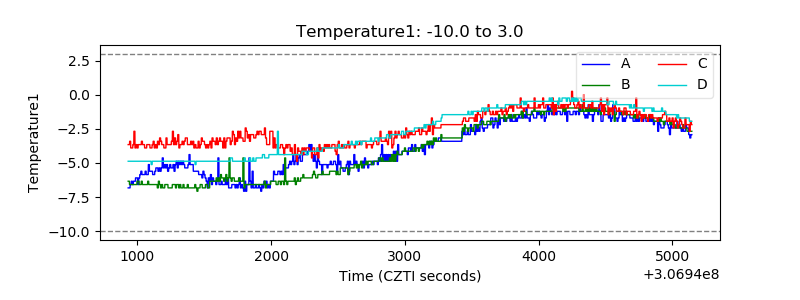

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

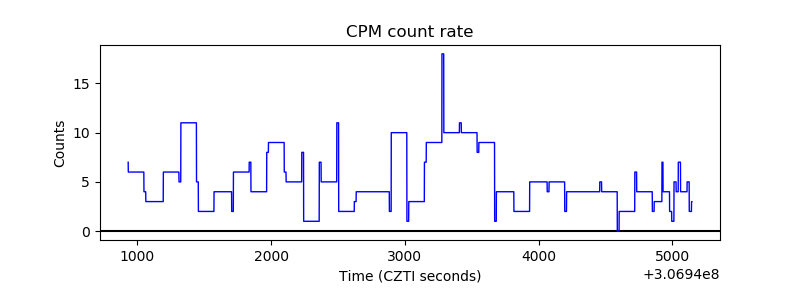

| _CPM_Rate |  |

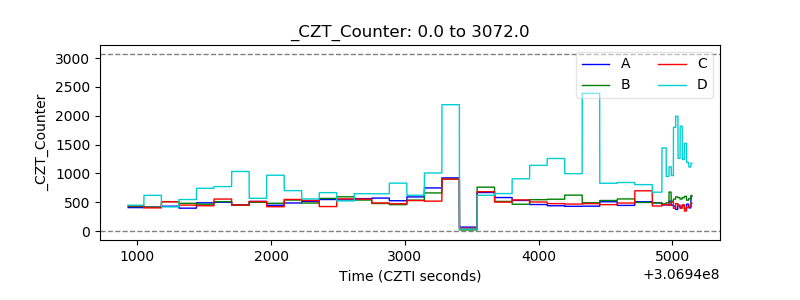

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

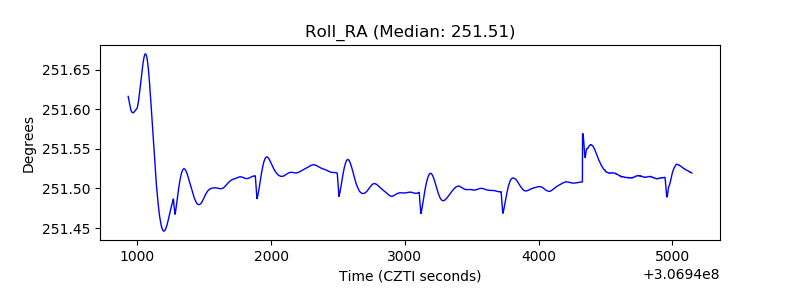

| _Roll_RA |  |
| Veto Counter |  |
