| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T05_9000003196_21564cztM0_level2.evt | modeM0/AS1A06_009T05_9000003196_21564cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,753,600 | 75,934,080 |
| Size | 452.8 MB | 72.4 MB |
| Events in quadrant A | 3,218,249 | 468,355 |
| Events in quadrant B | 3,431,350 | 476,203 |
| Events in quadrant C | 3,246,198 | 457,404 |
| Events in quadrant D | 4,035,990 | 439,151 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13581 | 2 |
| B | 0 | 14204 | 2 |
| C | 0 | 13635 | 2 |
| D | 0 | 16315 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6568 | 28 | 0.426309% |
| B | 6568 | 51 | 0.776492% |
| C | 6568 | 66 | 1.004872% |
| D | 6568 | 205 | 3.121194% |

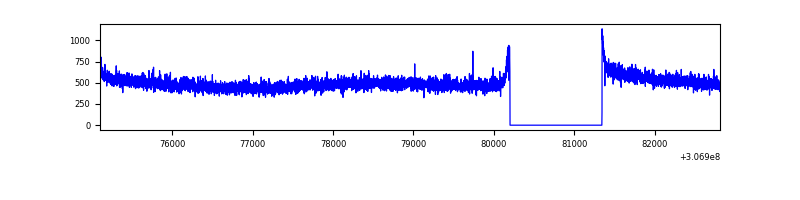

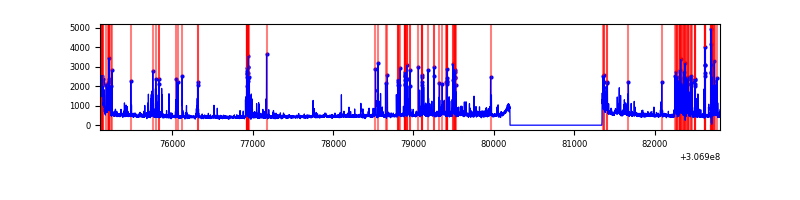

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7713 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7713 | 6569 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7713 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7713 | 6569 | 154 | 154 | 2.00% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10165 | 56.66 | 830 | 813 | 165.0 |
| A | 13 | 210 | 9356 | 51.76 | 830 | 813 | 165.0 |
| A | 0 | 226 | 7237 | 38.92 | 830 | 813 | 165.0 |
| B | 0 | 228 | 57868 | 367.0 | 835 | 817 | 155.5 |
| B | 0 | 230 | 51698 | 327.31 | 835 | 817 | 155.5 |
| B | 0 | 190 | 25316 | 157.6 | 835 | 817 | 155.5 |
| C | 14 | 238 | 127522 | 684.12 | 799 | 805 | 185.2 |
| C | 3 | 233 | 5930 | 27.67 | 799 | 805 | 185.2 |
| C | 13 | 61 | 5594 | 25.85 | 799 | 805 | 185.2 |
| D | 1 | 52 | 402159 | 2081.25 | 798 | 776 | 192.9 |
| D | 2 | 136 | 265419 | 1372.23 | 798 | 776 | 192.9 |
| D | 7 | 38 | 127817 | 658.73 | 798 | 776 | 192.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

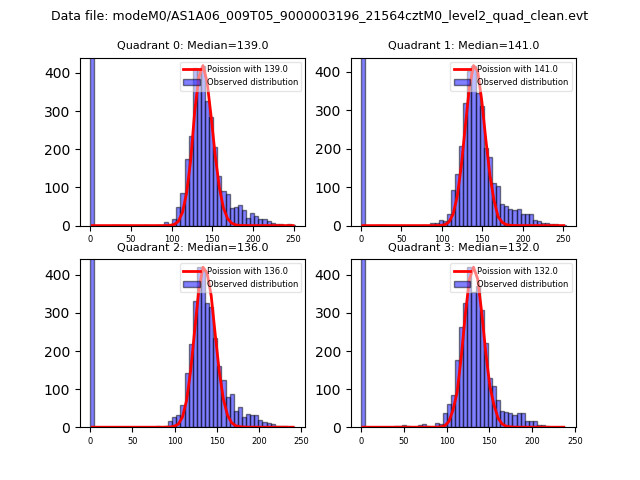

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

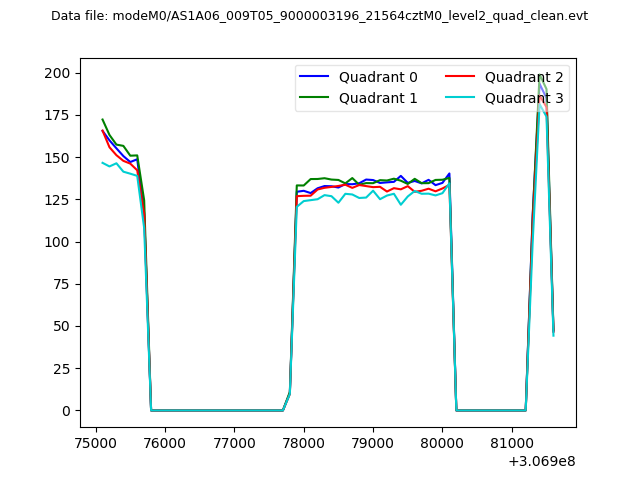

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

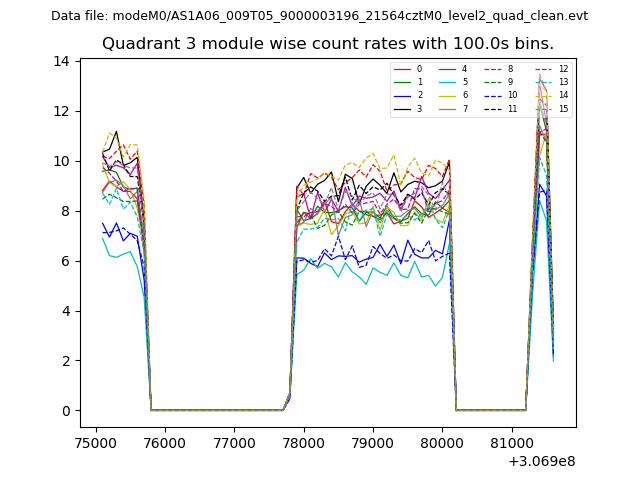

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

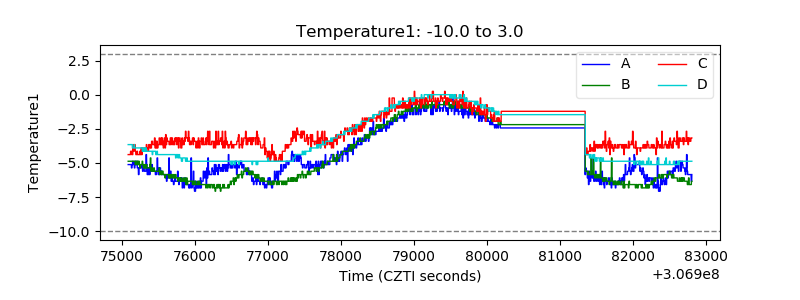

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

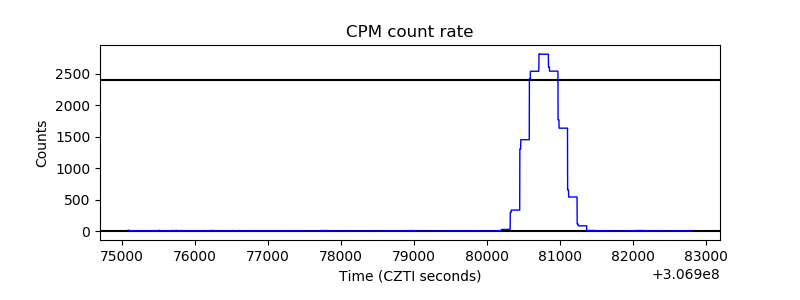

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

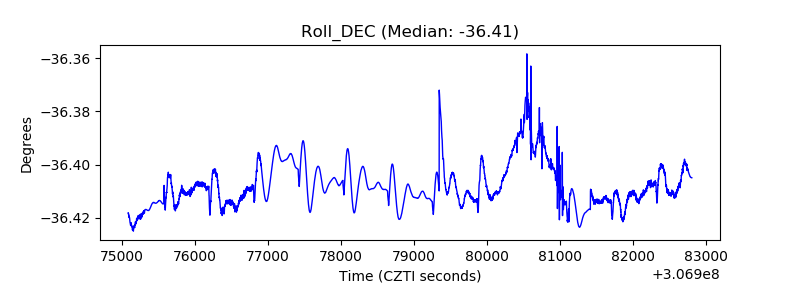

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
