| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T05_9000003196_21565cztM0_level2.evt | modeM0/AS1A06_009T05_9000003196_21565cztM0_level2_quad_clean.evt |
| Size (bytes) | 360,936,000 | 62,971,200 |
| Size | 344.2 MB | 60.1 MB |
| Events in quadrant A | 2,423,768 | 399,102 |
| Events in quadrant B | 2,537,776 | 402,316 |
| Events in quadrant C | 2,454,470 | 389,420 |
| Events in quadrant D | 3,183,539 | 374,261 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10036 | 1 |
| B | 0 | 10380 | 1 |
| C | 0 | 10117 | 1 |
| D | 0 | 12547 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4864 | 5 | 0.102796% |
| B | 4864 | 13 | 0.267270% |
| C | 4864 | 21 | 0.431743% |
| D | 4864 | 170 | 3.495066% |

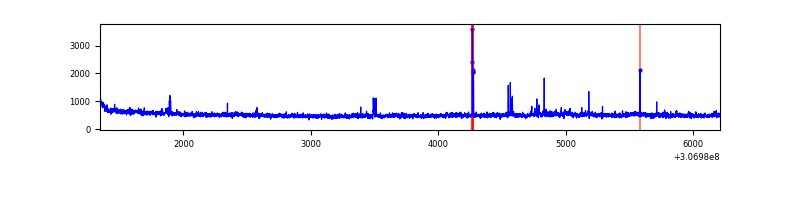

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4864 | 4864 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4864 | 4864 | 6 | 6 | 0.12% | 0.12% |  |
| C | 4864 | 4864 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4864 | 4864 | 123 | 123 | 2.53% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7065 | 51.08 | 627 | 613 | 126.3 |
| A | 0 | 226 | 5353 | 37.52 | 627 | 613 | 126.3 |
| A | 3 | 137 | 4748 | 32.73 | 627 | 613 | 126.3 |
| B | 3 | 64 | 36753 | 307.69 | 627 | 614 | 117.5 |
| B | 0 | 230 | 26997 | 224.63 | 627 | 614 | 117.5 |
| B | 12 | 111 | 13344 | 108.39 | 627 | 614 | 117.5 |
| C | 14 | 238 | 95937 | 683.73 | 603 | 608 | 139.4 |
| C | 3 | 233 | 6902 | 45.14 | 603 | 608 | 139.4 |
| C | 13 | 61 | 4210 | 25.83 | 603 | 608 | 139.4 |
| D | 1 | 52 | 577360 | 3947.0 | 602 | 585 | 146.1 |
| D | 2 | 136 | 120518 | 820.73 | 602 | 585 | 146.1 |
| D | 13 | 153 | 110023 | 748.91 | 602 | 585 | 146.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

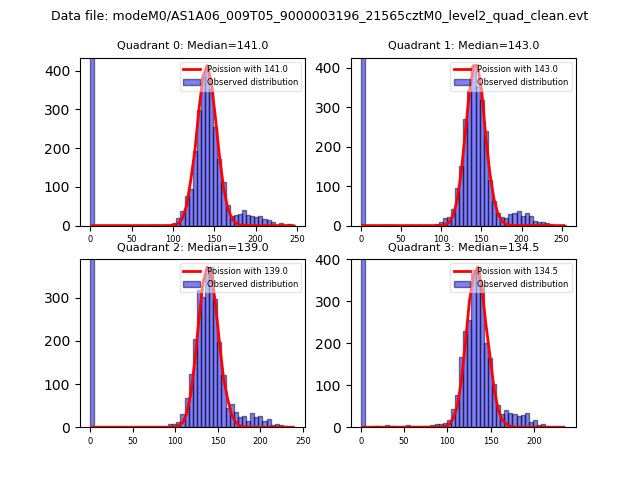

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

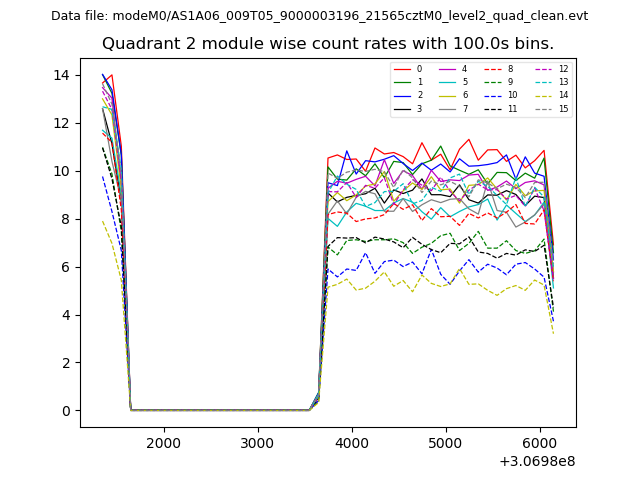

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

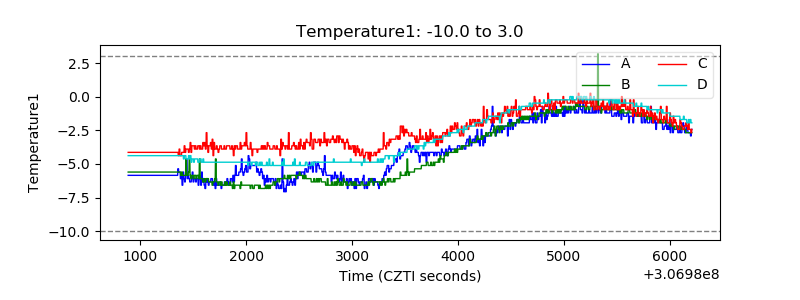

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

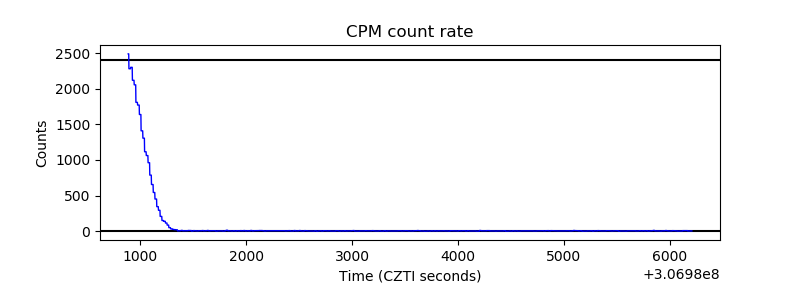

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

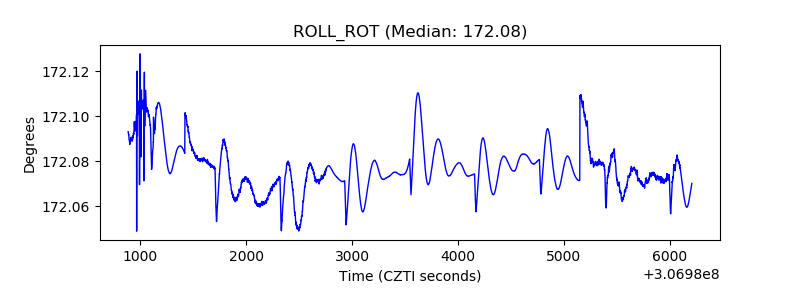

| _ROLL_ROT |  |
| _Roll_DEC |  |

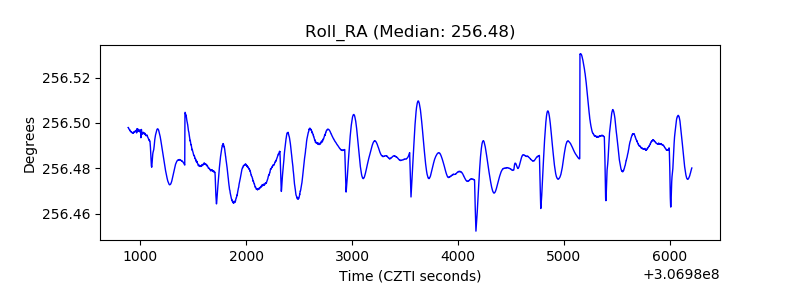

| _Roll_RA |  |

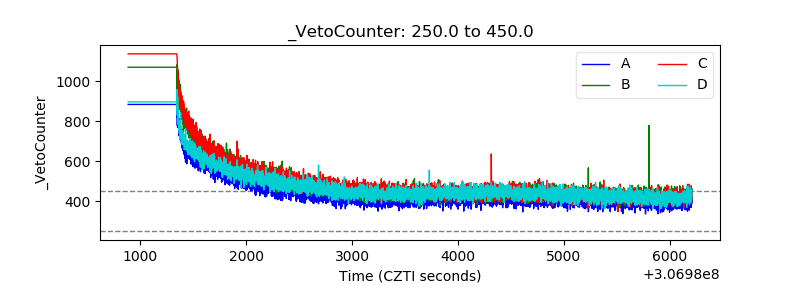

| Veto Counter |  |
