| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_155T02_9000003200_21572cztM0_level2.evt | modeM0/AS1A05_155T02_9000003200_21572cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,053,120 | 79,513,920 |
| Size | 487.4 MB | 75.8 MB |
| Events in quadrant A | 3,564,150 | 475,737 |
| Events in quadrant B | 3,737,153 | 484,541 |
| Events in quadrant C | 3,714,533 | 466,513 |
| Events in quadrant D | 3,956,483 | 463,337 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15425 | 2 |
| B | 0 | 15762 | 2 |
| C | 0 | 15683 | 3 |
| D | 0 | 16716 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7426 | 194 | 2.612443% |
| B | 7427 | 213 | 2.867914% |
| C | 7426 | 198 | 2.666308% |
| D | 7426 | 201 | 2.706706% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 7428 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7552 | 7429 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7551 | 7428 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7551 | 7428 | 61 | 61 | 0.81% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9436 | 45.4 | 924 | 902 | 188.0 |
| A | 0 | 226 | 8129 | 38.45 | 924 | 902 | 188.0 |
| A | 3 | 137 | 7882 | 37.14 | 924 | 902 | 188.0 |
| B | 3 | 64 | 46987 | 258.88 | 915 | 889 | 178.1 |
| B | 0 | 230 | 44935 | 247.35 | 915 | 889 | 178.1 |
| B | 0 | 190 | 27679 | 150.45 | 915 | 889 | 178.1 |
| C | 14 | 238 | 137299 | 653.03 | 886 | 892 | 208.9 |
| C | 3 | 233 | 63205 | 298.31 | 886 | 892 | 208.9 |
| C | 0 | 239 | 32258 | 150.16 | 886 | 892 | 208.9 |
| D | 2 | 136 | 231453 | 1048.79 | 904 | 875 | 219.9 |
| D | 7 | 38 | 135251 | 611.21 | 904 | 875 | 219.9 |
| D | 15 | 145 | 39849 | 177.27 | 904 | 875 | 219.9 |

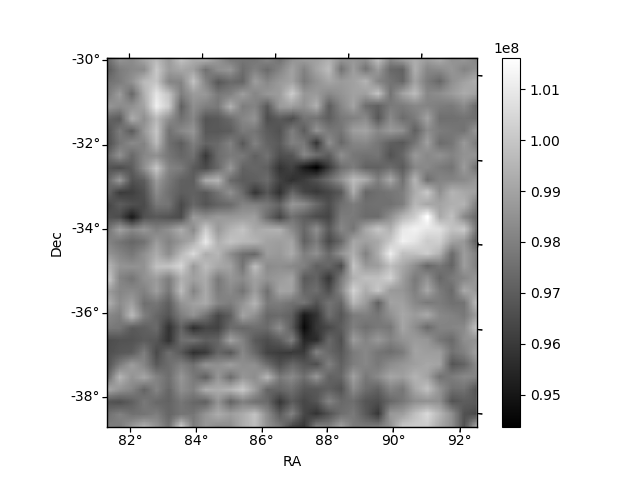

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

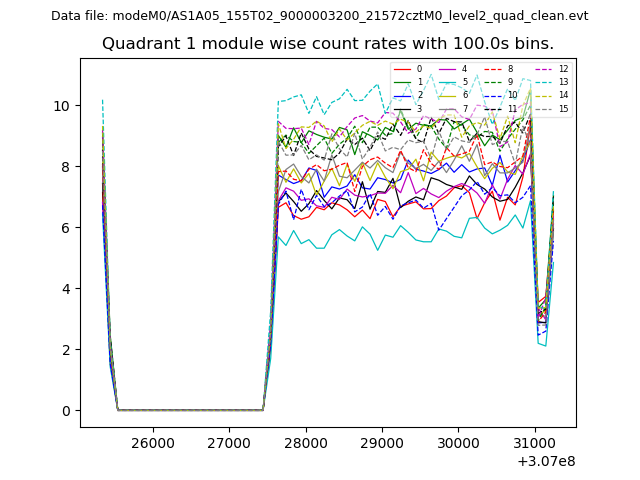

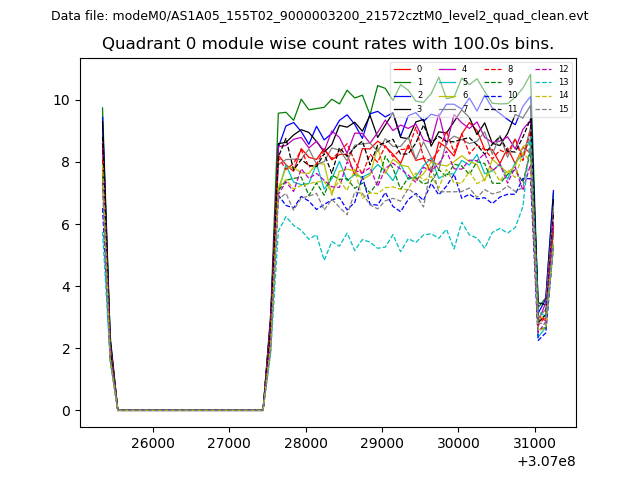

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

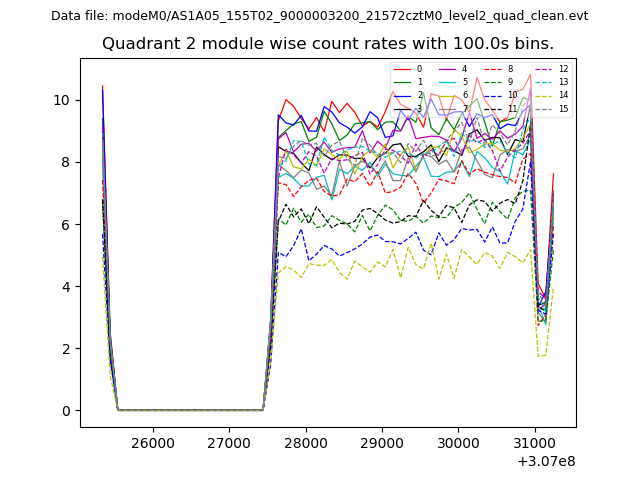

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

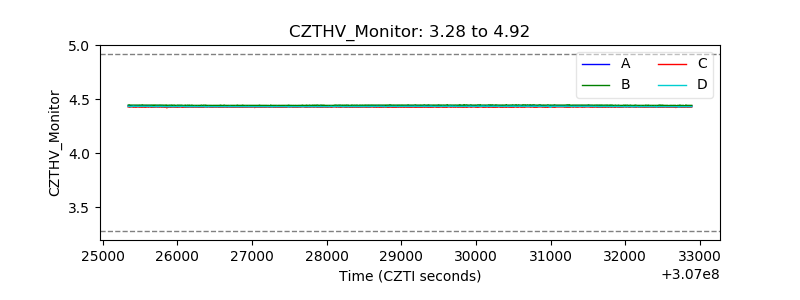

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

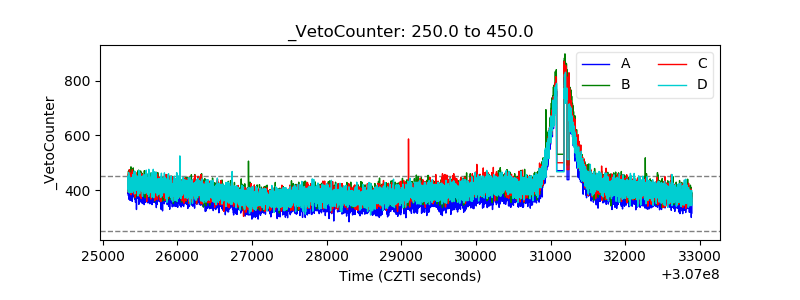

| Veto Counter |  |
