| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_155T02_9000003200_21575cztM0_level2.evt | modeM0/AS1A05_155T02_9000003200_21575cztM0_level2_quad_clean.evt |
| Size (bytes) | 676,416,960 | 102,237,120 |
| Size | 645.1 MB | 97.5 MB |
| Events in quadrant A | 4,572,017 | 637,681 |
| Events in quadrant B | 4,178,134 | 649,555 |
| Events in quadrant C | 4,057,427 | 628,256 |
| Events in quadrant D | 7,099,776 | 588,287 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19154 | 2 |
| B | 0 | 17810 | 2 |
| C | 0 | 17566 | 2 |
| D | 0 | 27081 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8521 | 302 | 3.544185% |
| B | 8522 | 148 | 1.736682% |
| C | 8522 | 153 | 1.795353% |
| D | 8522 | 880 | 10.326215% |

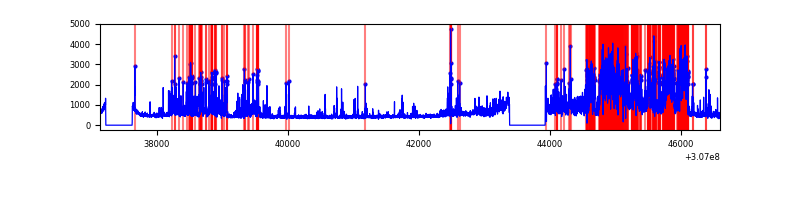

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

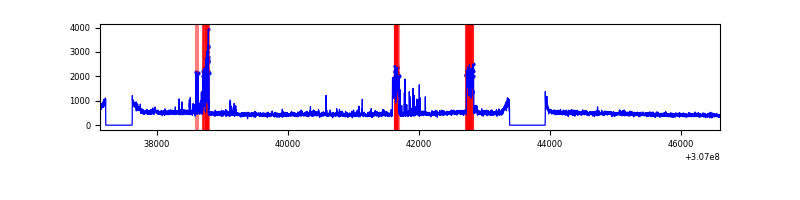

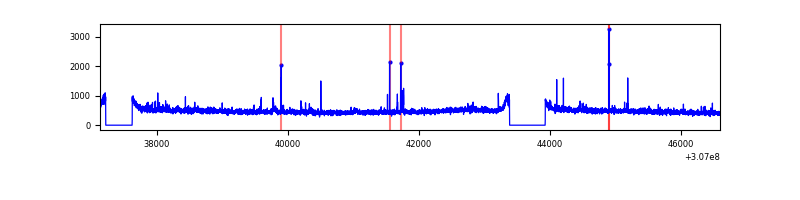

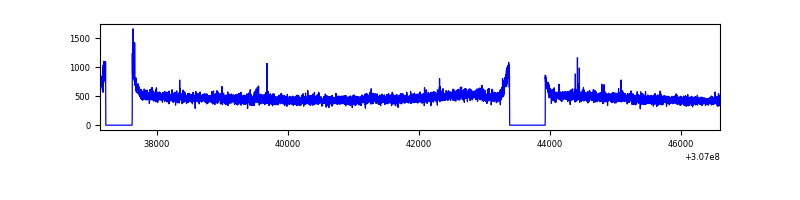

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9471 | 8523 | 89 | 89 | 0.94% | 1.04% |  |
| B | 9472 | 8524 | 5 | 5 | 0.05% | 0.06% |  |
| C | 9472 | 8524 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9472 | 8524 | 678 | 678 | 7.16% | 7.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 575601 | 2795.96 | 1024 | 1000 | 205.5 |
| A | 15 | 174 | 42208 | 200.51 | 1024 | 1000 | 205.5 |
| A | 13 | 254 | 13486 | 60.76 | 1024 | 1000 | 205.5 |
| B | 3 | 64 | 43076 | 213.47 | 1028 | 1002 | 197.1 |
| B | 0 | 230 | 39082 | 193.21 | 1028 | 1002 | 197.1 |
| B | 0 | 228 | 27421 | 134.04 | 1028 | 1002 | 197.1 |
| C | 14 | 238 | 153881 | 653.77 | 991 | 995 | 233.9 |
| C | 3 | 233 | 38596 | 160.79 | 991 | 995 | 233.9 |
| C | 13 | 61 | 6933 | 25.39 | 991 | 995 | 233.9 |
| D | 13 | 153 | 1093107 | 4689.61 | 964 | 937 | 232.9 |
| D | 7 | 38 | 629660 | 2699.64 | 964 | 937 | 232.9 |
| D | 1 | 52 | 617638 | 2648.02 | 964 | 937 | 232.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

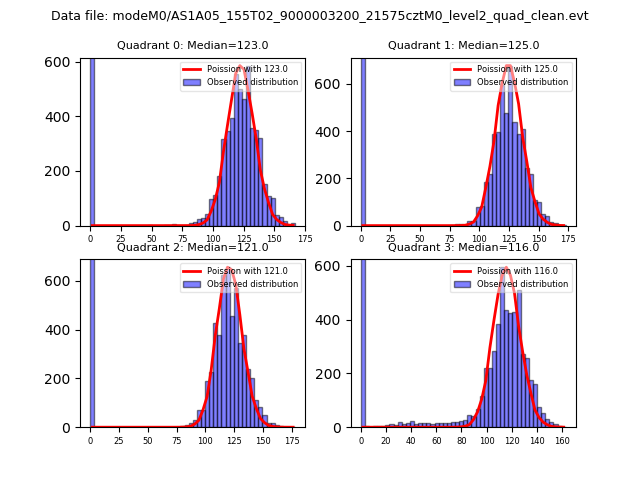

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

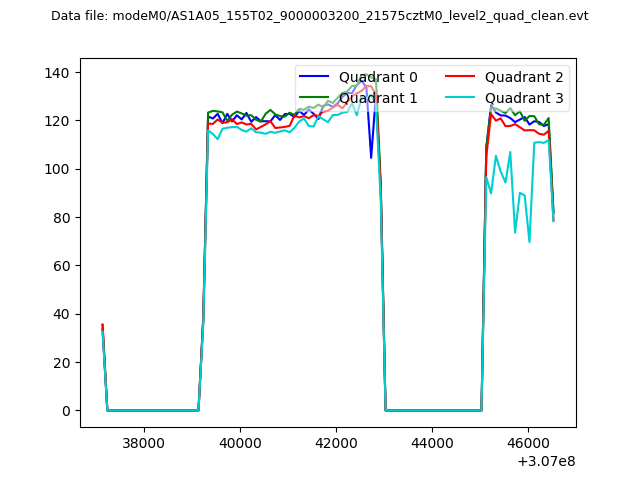

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

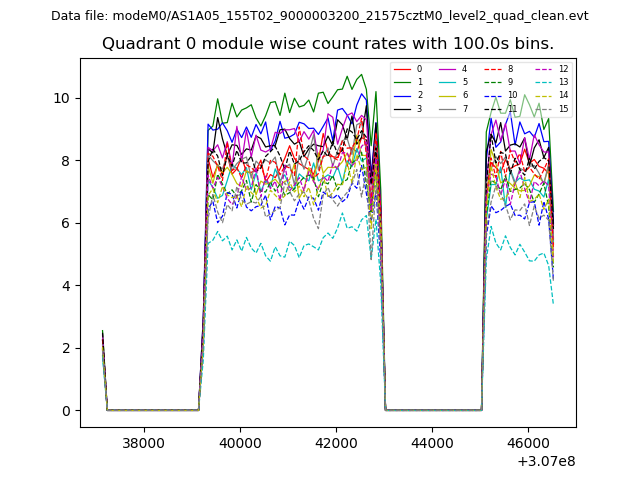

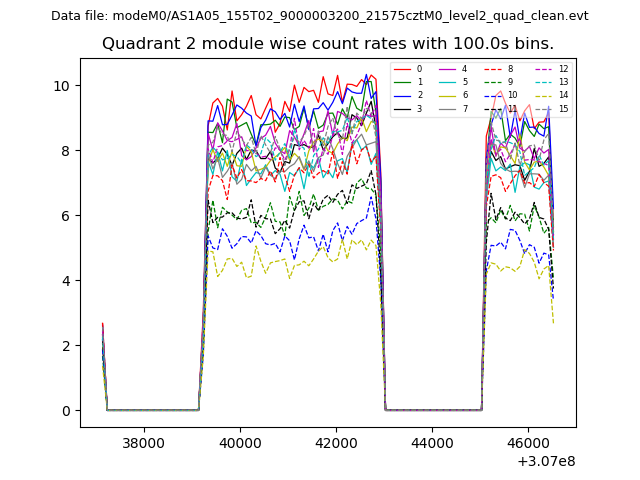

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

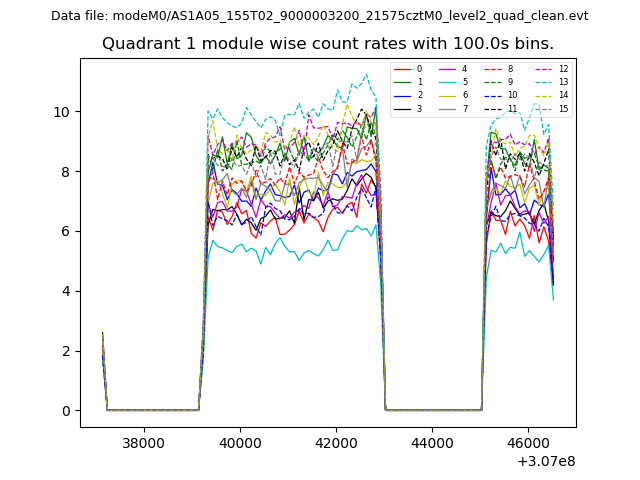

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

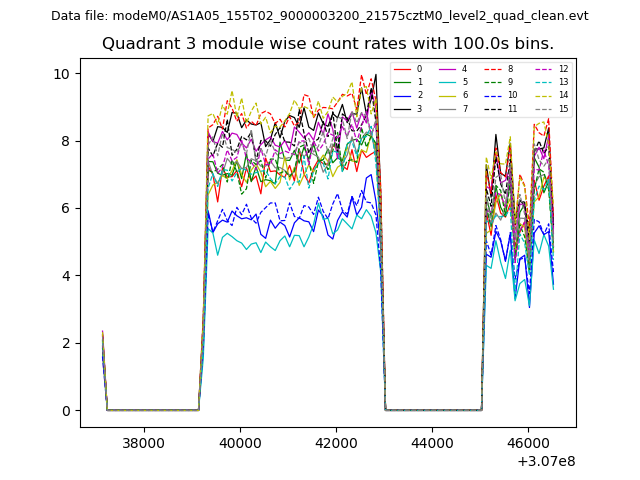

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

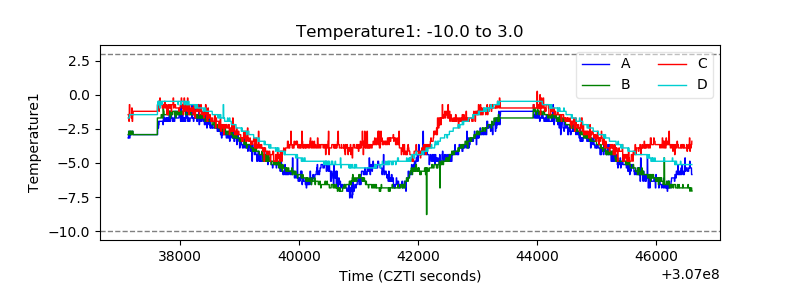

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

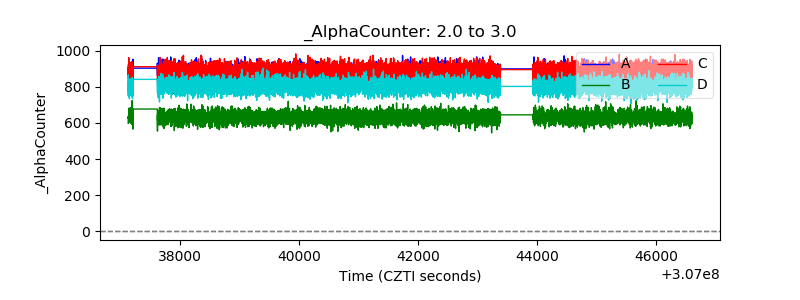

| Alpha Counter |  |
| _CPM_Rate |  |

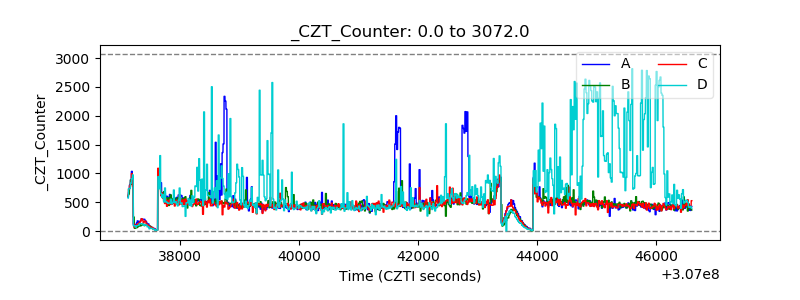

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

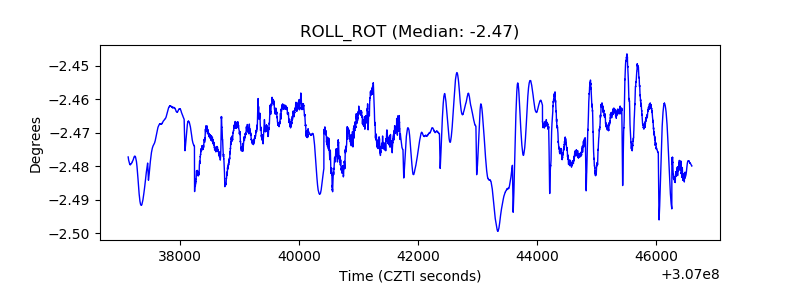

| _ROLL_ROT |  |

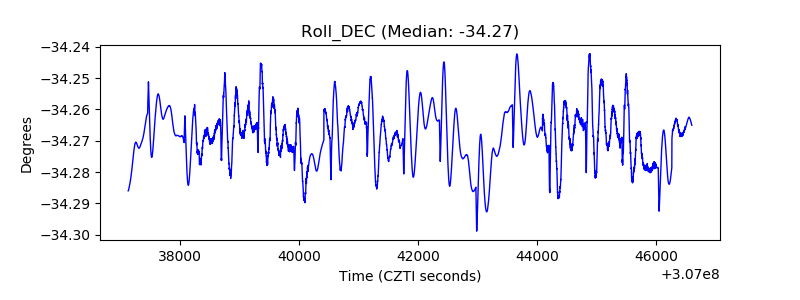

| _Roll_DEC |  |

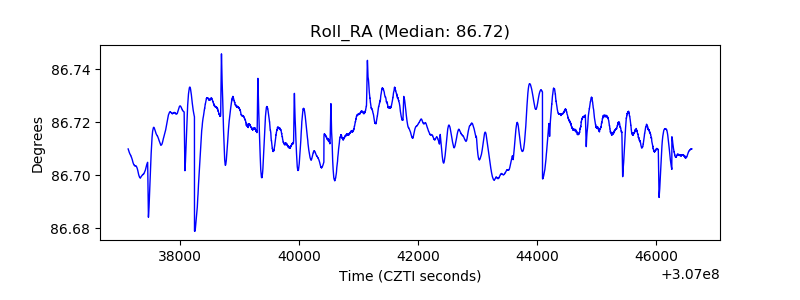

| _Roll_RA |  |

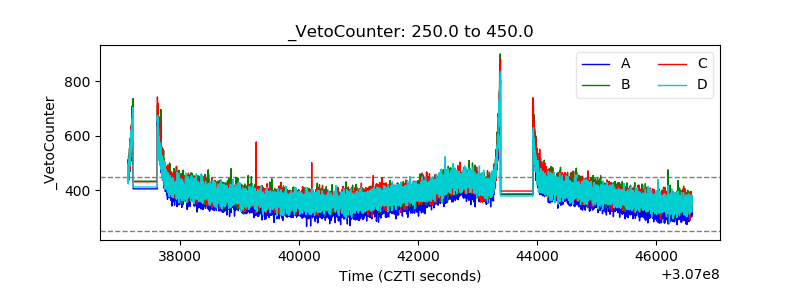

| Veto Counter |  |
