| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003204_21591cztM0_level2.evt | modeM0/AS1A06_002T02_9000003204_21591cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,366,400 | 88,392,960 |
| Size | 480.0 MB | 84.3 MB |
| Events in quadrant A | 3,921,593 | 553,793 |
| Events in quadrant B | 3,514,494 | 559,654 |
| Events in quadrant C | 3,348,661 | 547,858 |
| Events in quadrant D | 3,994,062 | 537,572 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16203 | 0 |
| B | 0 | 14933 | 0 |
| C | 0 | 14394 | 0 |
| D | 0 | 16469 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6850 | 106 | 1.547445% |
| B | 6850 | 108 | 1.576642% |
| C | 6850 | 117 | 1.708029% |
| D | 6850 | 187 | 2.729927% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8710 | 6852 | 10 | 10 | 0.11% | 0.15% |  |
| B | 8710 | 6852 | 21 | 21 | 0.24% | 0.31% |  |
| C | 8710 | 6852 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8710 | 6852 | 81 | 81 | 0.93% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 640288 | 3725.1 | 851 | 830 | 171.7 |
| A | 13 | 254 | 9935 | 53.04 | 851 | 830 | 171.7 |
| A | 0 | 226 | 7321 | 37.81 | 851 | 830 | 171.7 |
| B | 3 | 64 | 108548 | 664.59 | 849 | 828 | 162.1 |
| B | 0 | 229 | 28194 | 168.84 | 849 | 828 | 162.1 |
| B | 0 | 230 | 20850 | 123.53 | 849 | 828 | 162.1 |
| C | 14 | 238 | 131343 | 671.96 | 825 | 832 | 194.2 |
| C | 13 | 61 | 5738 | 25.26 | 825 | 832 | 194.2 |
| C | 10 | 91 | 2307 | 7.59 | 825 | 832 | 194.2 |
| D | 2 | 136 | 430808 | 2116.06 | 830 | 805 | 203.2 |
| D | 1 | 52 | 355024 | 1743.12 | 830 | 805 | 203.2 |
| D | 14 | 35 | 39417 | 190.01 | 830 | 805 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

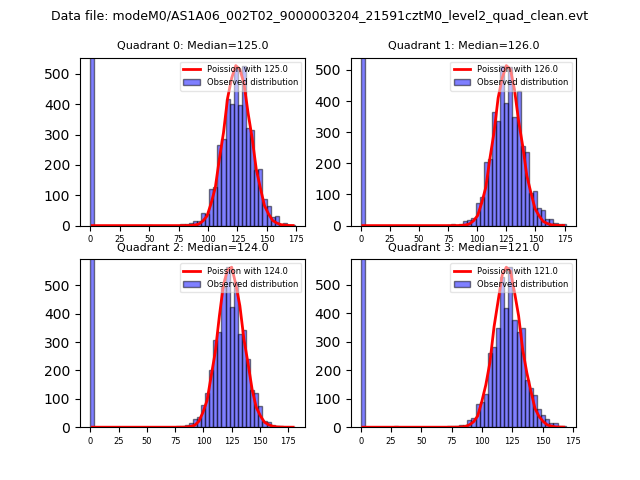

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

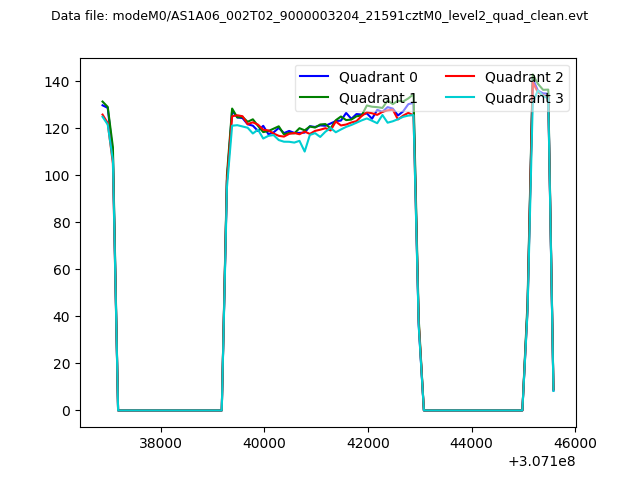

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

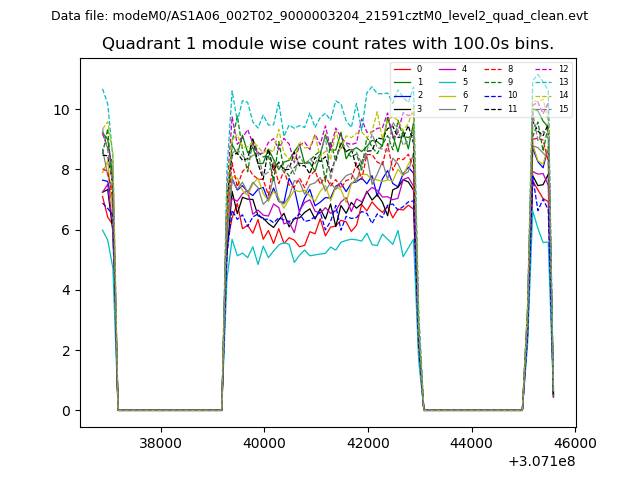

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

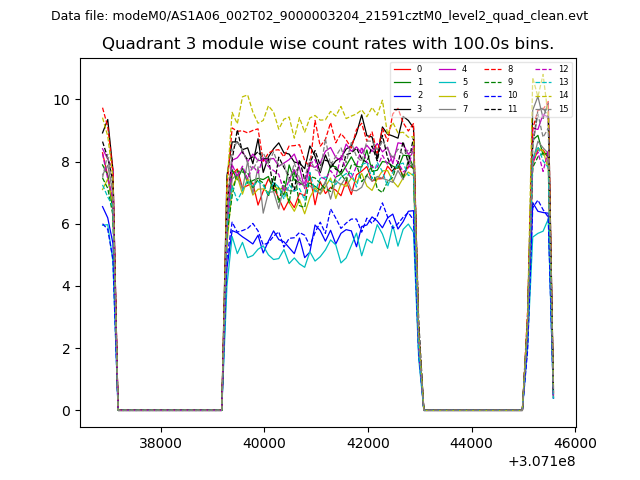

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

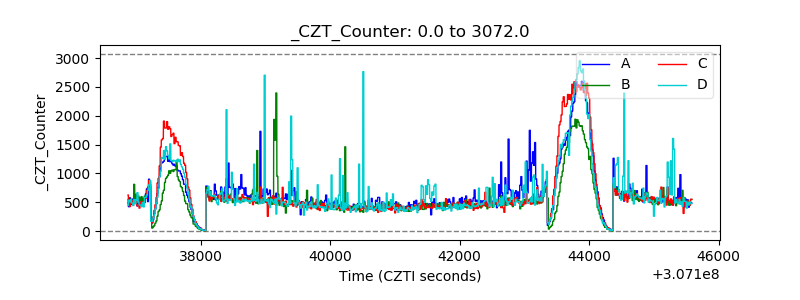

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

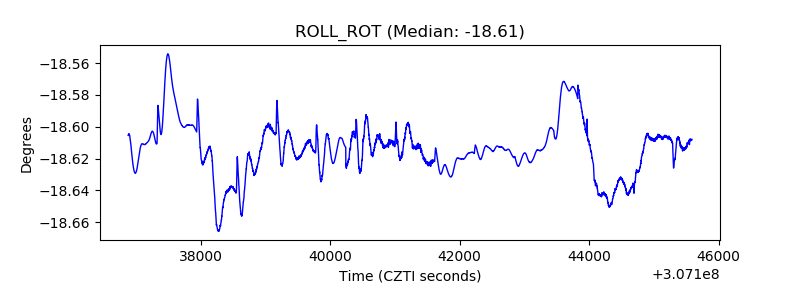

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
