| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21597cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21597cztM0_level2_quad_clean.evt |
| Size (bytes) | 655,519,680 | 83,931,840 |
| Size | 625.2 MB | 80.0 MB |
| Events in quadrant A | 8,640,341 | 489,234 |
| Events in quadrant B | 3,126,491 | 572,708 |
| Events in quadrant C | 2,931,366 | 548,956 |
| Events in quadrant D | 4,750,119 | 513,418 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29560 | 2 |
| B | 0 | 12932 | 1 |
| C | 0 | 12366 | 1 |
| D | 0 | 18254 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5962 | 2544 | 42.670245% |
| B | 5963 | 114 | 1.911789% |
| C | 5963 | 54 | 0.905584% |
| D | 5963 | 680 | 11.403656% |

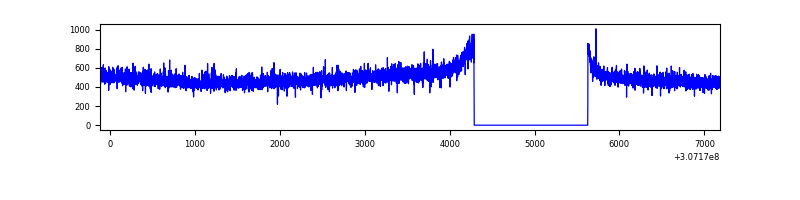

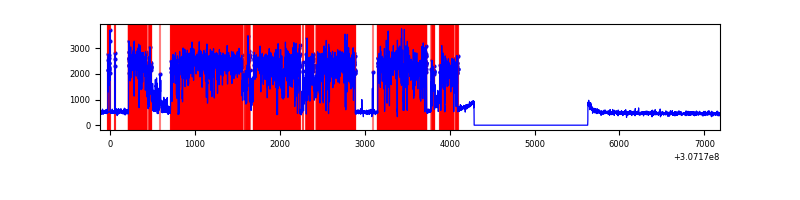

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7302 | 5963 | 2370 | 2370 | 32.46% | 39.75% |  |
| B | 7303 | 5964 | 53 | 53 | 0.73% | 0.89% |  |
| C | 7303 | 5964 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7303 | 5964 | 522 | 522 | 7.15% | 8.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 6098818 | 46482.25 | 660 | 650 | 131.2 |
| A | 13 | 254 | 7185 | 49.81 | 660 | 650 | 131.2 |
| A | 0 | 226 | 5516 | 37.09 | 660 | 650 | 131.2 |
| B | 3 | 64 | 172552 | 1245.54 | 741 | 726 | 138.0 |
| B | 0 | 229 | 20792 | 145.46 | 741 | 726 | 138.0 |
| B | 0 | 190 | 17385 | 120.76 | 741 | 726 | 138.0 |
| C | 14 | 238 | 116458 | 693.04 | 721 | 727 | 167.0 |
| C | 13 | 61 | 5174 | 26.63 | 721 | 727 | 167.0 |
| C | 7 | 221 | 3140 | 14.45 | 721 | 727 | 167.0 |
| D | 1 | 52 | 1992648 | 12085.14 | 681 | 660 | 164.8 |
| D | 2 | 136 | 77795 | 467.97 | 681 | 660 | 164.8 |
| D | 14 | 35 | 25501 | 150.71 | 681 | 660 | 164.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

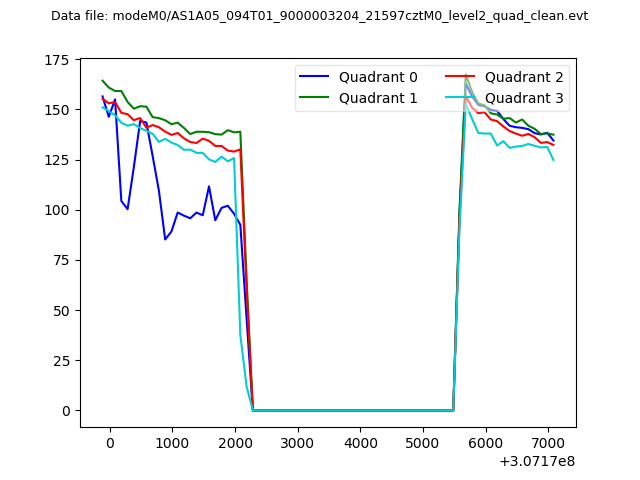

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

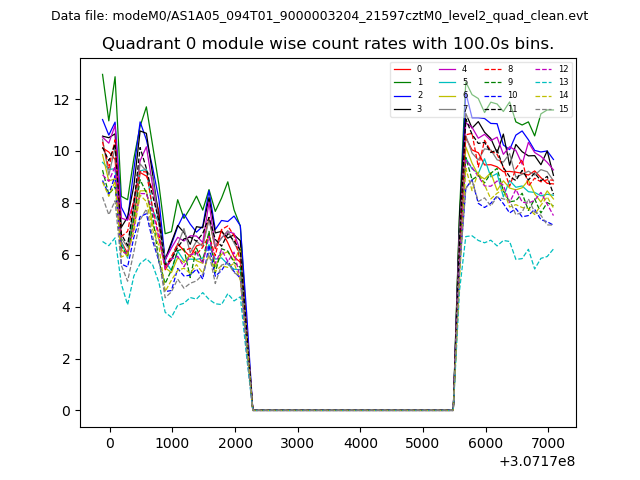

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

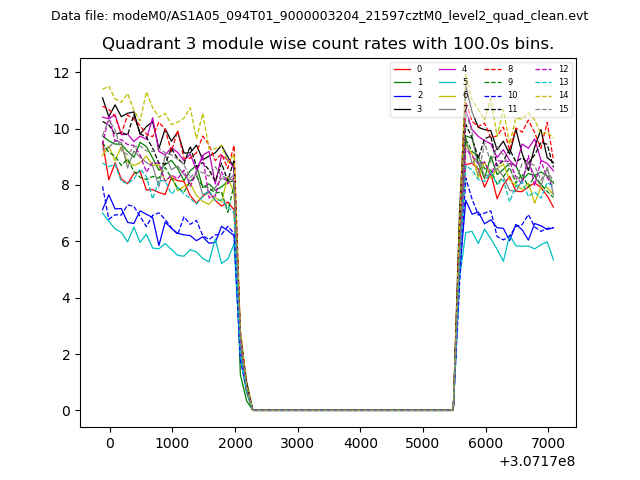

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

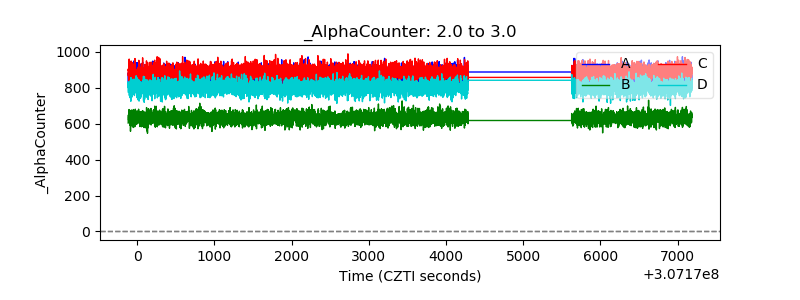

| Alpha Counter |  |
| _CPM_Rate |  |

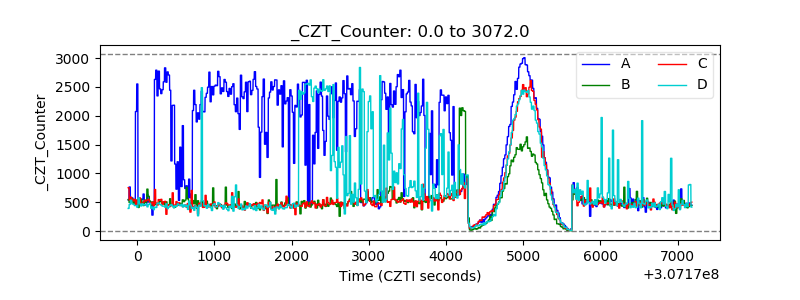

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

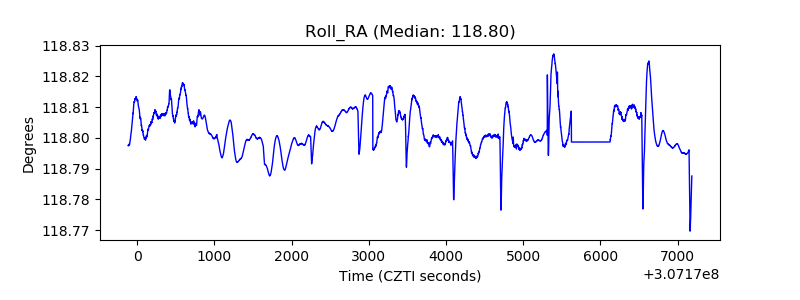

| _Roll_RA |  |
