| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21598cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21598cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,898,240 | 85,314,240 |
| Size | 417.6 MB | 81.4 MB |
| Events in quadrant A | 2,957,491 | 547,633 |
| Events in quadrant B | 3,104,932 | 556,181 |
| Events in quadrant C | 2,962,738 | 535,464 |
| Events in quadrant D | 3,819,699 | 516,108 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12623 | 1 |
| B | 0 | 13101 | 1 |
| C | 0 | 12686 | 1 |
| D | 0 | 15403 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6130 | 67 | 1.092985% |
| B | 6130 | 83 | 1.353997% |
| C | 6130 | 86 | 1.402936% |
| D | 6130 | 186 | 3.034258% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7190 | 6131 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7190 | 6131 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7190 | 6131 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7190 | 6131 | 107 | 107 | 1.49% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8013 | 47.44 | 767 | 752 | 153.1 |
| A | 0 | 226 | 6628 | 38.39 | 767 | 752 | 153.1 |
| A | 3 | 137 | 6296 | 36.22 | 767 | 752 | 153.1 |
| B | 3 | 64 | 71523 | 490.48 | 760 | 741 | 144.3 |
| B | 0 | 229 | 22411 | 150.16 | 760 | 741 | 144.3 |
| B | 0 | 190 | 17765 | 117.97 | 760 | 741 | 144.3 |
| C | 14 | 238 | 115555 | 675.49 | 729 | 733 | 170.0 |
| C | 13 | 61 | 5120 | 25.81 | 729 | 733 | 170.0 |
| C | 4 | 175 | 3601 | 16.87 | 729 | 733 | 170.0 |
| D | 1 | 52 | 874146 | 4902.7 | 732 | 710 | 178.2 |
| D | 2 | 136 | 95464 | 531.87 | 732 | 710 | 178.2 |
| D | 14 | 35 | 30992 | 169.98 | 732 | 710 | 178.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

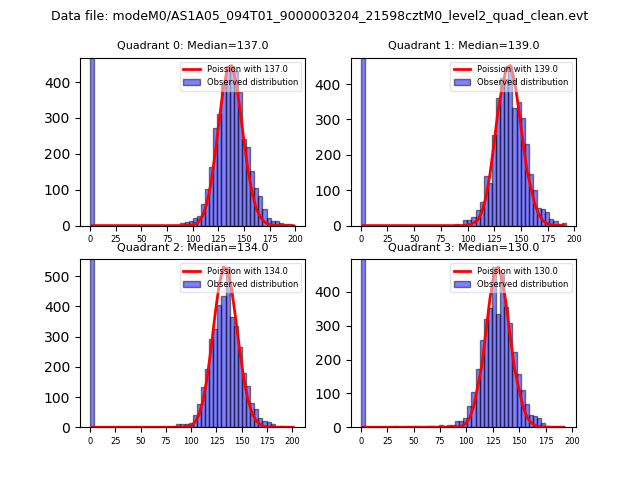

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

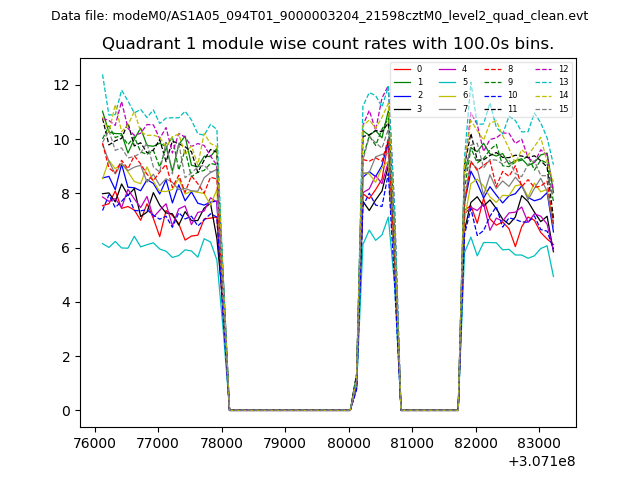

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

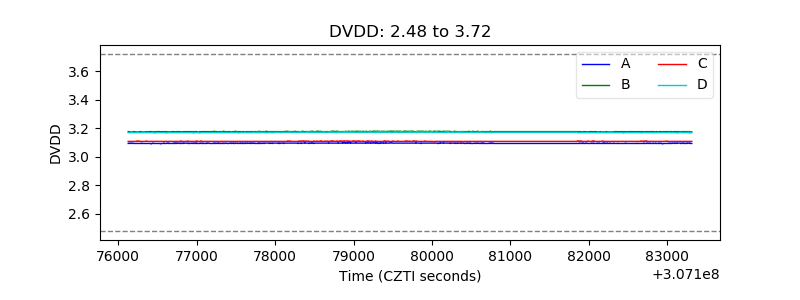

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

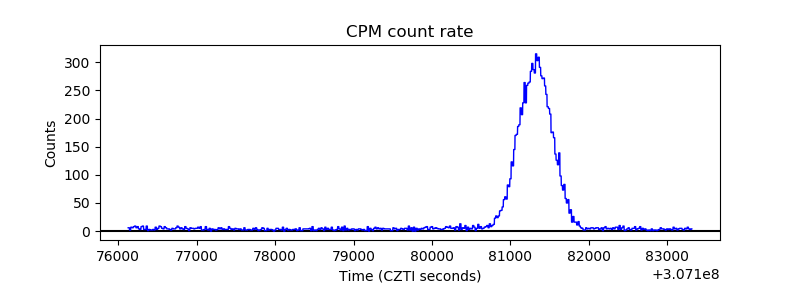

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

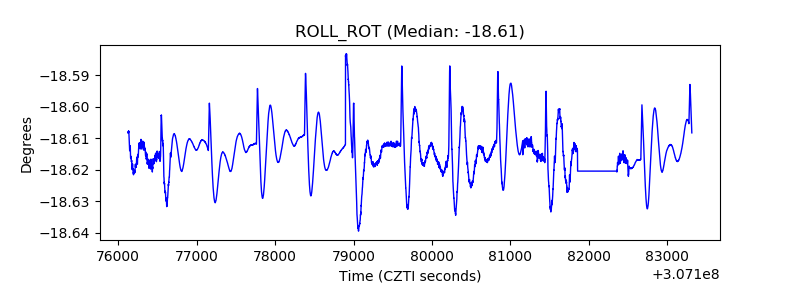

| _ROLL_ROT |  |

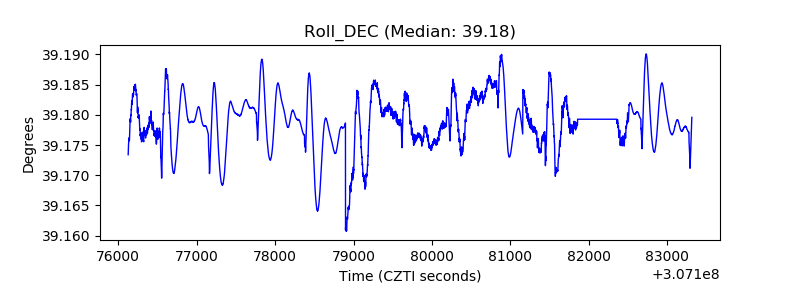

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
