| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21605cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21605cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,063,360 | 81,253,440 |
| Size | 497.9 MB | 77.5 MB |
| Events in quadrant A | 3,318,154 | 504,454 |
| Events in quadrant B | 3,461,081 | 507,318 |
| Events in quadrant C | 3,364,565 | 496,530 |
| Events in quadrant D | 5,199,295 | 471,811 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14314 | 2 |
| B | 0 | 14672 | 2 |
| C | 0 | 14376 | 2 |
| D | 0 | 20326 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6883 | 79 | 1.147755% |
| B | 6884 | 89 | 1.292853% |
| C | 6884 | 119 | 1.728646% |
| D | 6884 | 321 | 4.662987% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8543 | 6885 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8544 | 6886 | 6 | 6 | 0.07% | 0.09% |  |
| C | 8544 | 6886 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8544 | 6886 | 185 | 185 | 2.17% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 21564 | 120.5 | 853 | 833 | 172.0 |
| A | 13 | 254 | 10434 | 55.81 | 853 | 833 | 172.0 |
| A | 0 | 226 | 7485 | 38.67 | 853 | 833 | 172.0 |
| B | 3 | 64 | 28568 | 169.02 | 852 | 831 | 164.1 |
| B | 0 | 190 | 24465 | 144.01 | 852 | 831 | 164.1 |
| B | 0 | 229 | 20665 | 120.86 | 852 | 831 | 164.1 |
| C | 14 | 238 | 128671 | 655.54 | 826 | 831 | 195.0 |
| C | 8 | 128 | 10585 | 50.02 | 826 | 831 | 195.0 |
| C | 8 | 112 | 5868 | 25.83 | 826 | 831 | 195.0 |
| D | 1 | 52 | 1293231 | 6497.68 | 820 | 797 | 198.9 |
| D | 5 | 222 | 498788 | 2503.64 | 820 | 797 | 198.9 |
| D | 14 | 35 | 105268 | 525.23 | 820 | 797 | 198.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

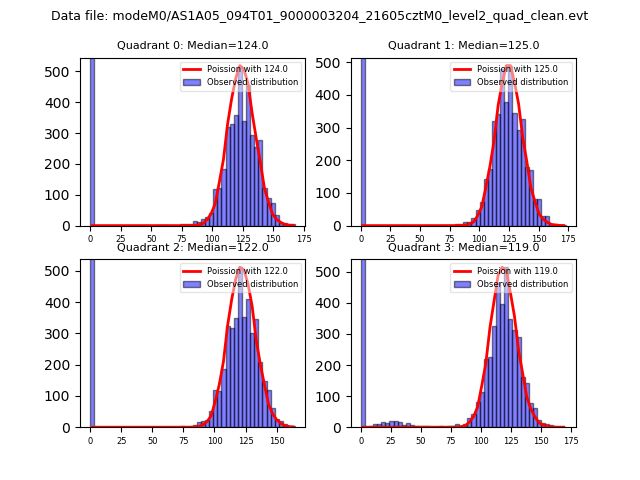

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

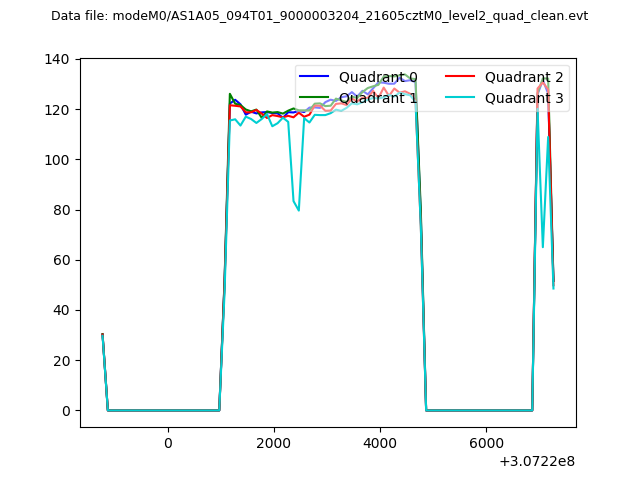

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

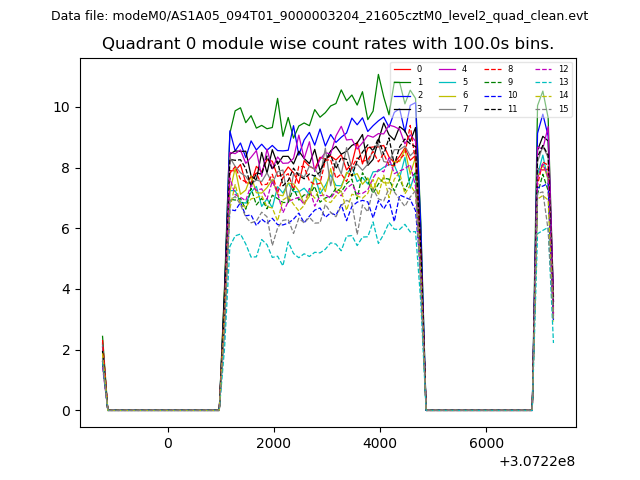

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

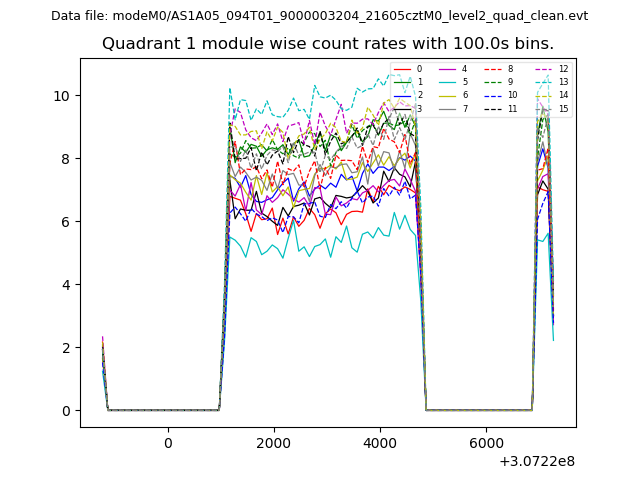

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
