| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21615cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21615cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,625,280 | 96,526,080 |
| Size | 519.4 MB | 92.1 MB |
| Events in quadrant A | 3,471,451 | 610,852 |
| Events in quadrant B | 4,039,723 | 618,862 |
| Events in quadrant C | 3,467,218 | 600,618 |
| Events in quadrant D | 5,016,287 | 580,559 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15142 | 2 |
| B | 0 | 16776 | 2 |
| C | 0 | 15067 | 2 |
| D | 0 | 19963 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7349 | 174 | 2.367669% |
| B | 7350 | 215 | 2.925170% |
| C | 7350 | 185 | 2.517007% |
| D | 7350 | 505 | 6.870748% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 7352 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7470 | 7353 | 23 | 23 | 0.31% | 0.31% |  |
| C | 7470 | 7353 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7470 | 7353 | 253 | 253 | 3.39% | 3.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 48724 | 267.64 | 885 | 866 | 178.8 |
| A | 13 | 254 | 10495 | 53.85 | 885 | 866 | 178.8 |
| A | 5 | 16 | 9295 | 47.14 | 885 | 866 | 178.8 |
| B | 0 | 244 | 373000 | 2201.99 | 877 | 854 | 169.0 |
| B | 3 | 64 | 78810 | 461.27 | 877 | 854 | 169.0 |
| B | 6 | 36 | 53746 | 312.96 | 877 | 854 | 169.0 |
| C | 14 | 238 | 132372 | 662.71 | 847 | 852 | 198.5 |
| C | 8 | 128 | 13096 | 61.7 | 847 | 852 | 198.5 |
| C | 9 | 54 | 10828 | 50.27 | 847 | 852 | 198.5 |
| D | 7 | 238 | 892403 | 4350.94 | 846 | 820 | 204.9 |
| D | 1 | 52 | 367720 | 1790.48 | 846 | 820 | 204.9 |
| D | 13 | 104 | 319774 | 1556.5 | 846 | 820 | 204.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

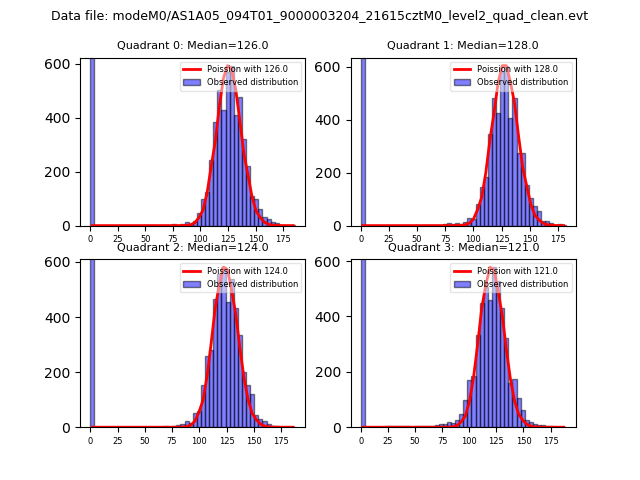

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

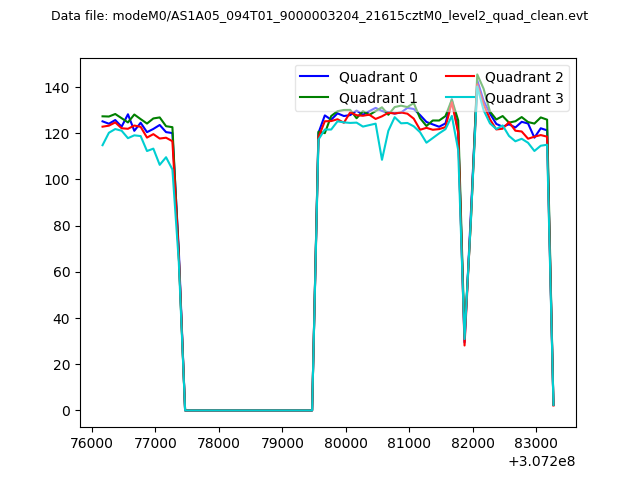

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

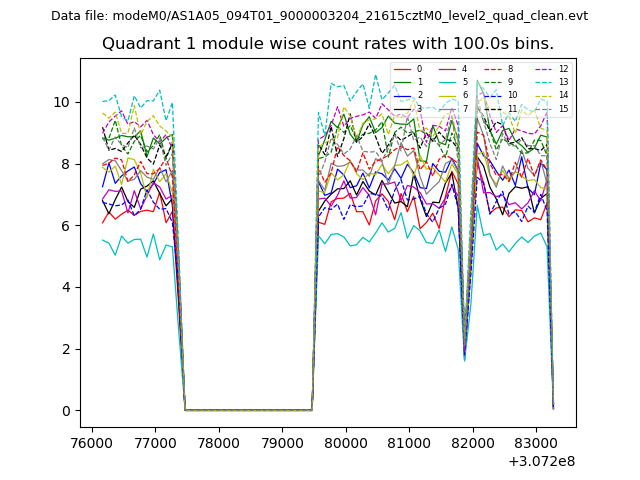

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

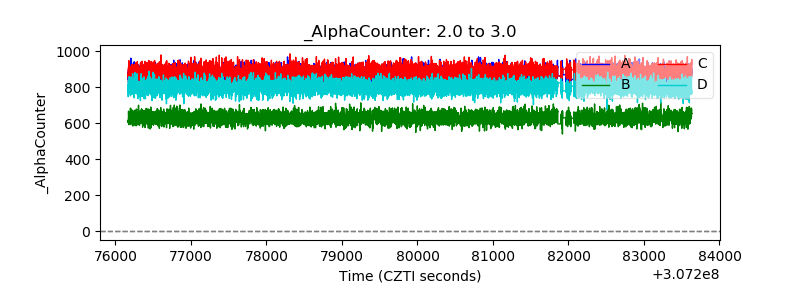

| Alpha Counter |  |

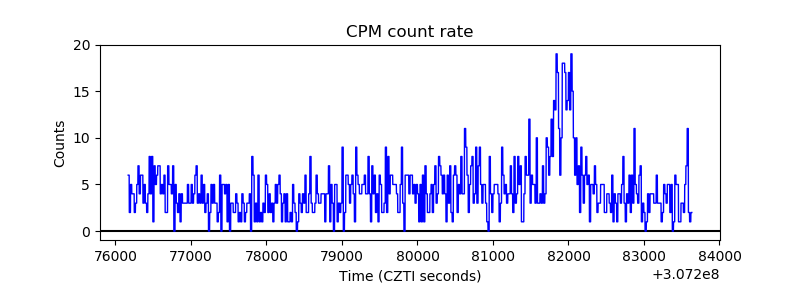

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

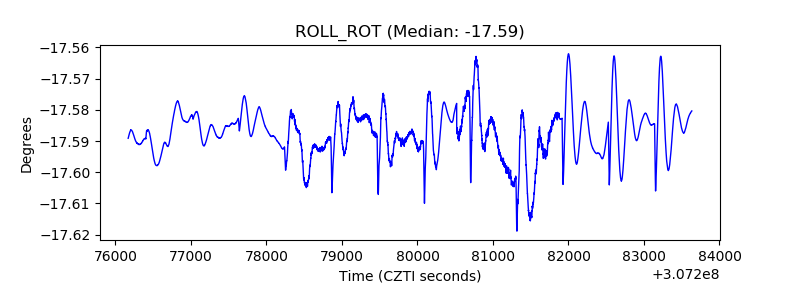

| _ROLL_ROT |  |
| _Roll_DEC |  |

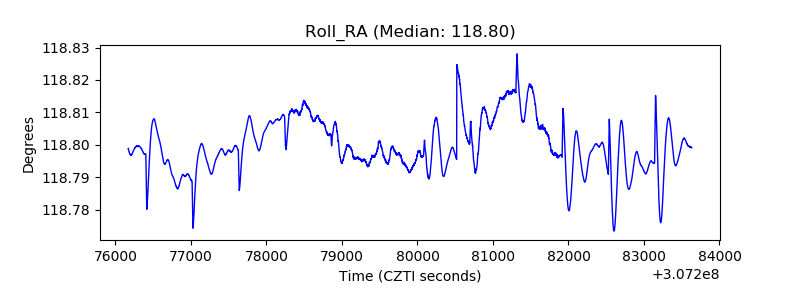

| _Roll_RA |  |
| Veto Counter |  |
