| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21619cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21619cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,500,480 | 111,646,080 |
| Size | 585.1 MB | 106.5 MB |
| Events in quadrant A | 4,209,082 | 701,613 |
| Events in quadrant B | 4,503,265 | 701,517 |
| Events in quadrant C | 4,295,875 | 686,051 |
| Events in quadrant D | 4,970,543 | 676,872 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18170 | 2 |
| B | 0 | 19006 | 2 |
| C | 0 | 18401 | 2 |
| D | 0 | 20800 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 182 | 0 |
| B | 0 | 182 | 0 |
| C | 0 | 182 | 0 |
| D | 0 | 182 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8858 | 58 | 0.654775% |
| B | 8859 | 93 | 1.049780% |
| C | 8859 | 108 | 1.219099% |
| D | 8859 | 246 | 2.776837% |

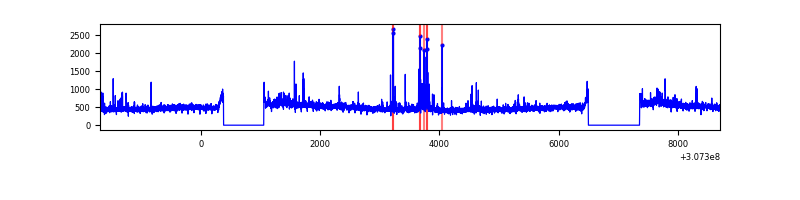

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10393 | 8860 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10394 | 8861 | 8 | 8 | 0.08% | 0.09% |  |
| C | 10394 | 8861 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10394 | 8861 | 116 | 116 | 1.12% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 15670 | 66.33 | 1088 | 1063 | 220.2 |
| A | 13 | 254 | 13793 | 57.81 | 1088 | 1063 | 220.2 |
| A | 3 | 137 | 9464 | 38.15 | 1088 | 1063 | 220.2 |
| B | 3 | 64 | 67511 | 321.73 | 1082 | 1056 | 206.6 |
| B | 0 | 230 | 58409 | 277.66 | 1082 | 1056 | 206.6 |
| B | 0 | 190 | 52223 | 247.72 | 1082 | 1056 | 206.6 |
| C | 14 | 238 | 162093 | 651.68 | 1044 | 1052 | 247.1 |
| C | 9 | 54 | 55116 | 218.78 | 1044 | 1052 | 247.1 |
| C | 13 | 61 | 7426 | 25.79 | 1044 | 1052 | 247.1 |
| D | 7 | 38 | 353995 | 1377.26 | 1051 | 1019 | 256.3 |
| D | 13 | 153 | 126915 | 491.23 | 1051 | 1019 | 256.3 |
| D | 1 | 52 | 107630 | 415.98 | 1051 | 1019 | 256.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

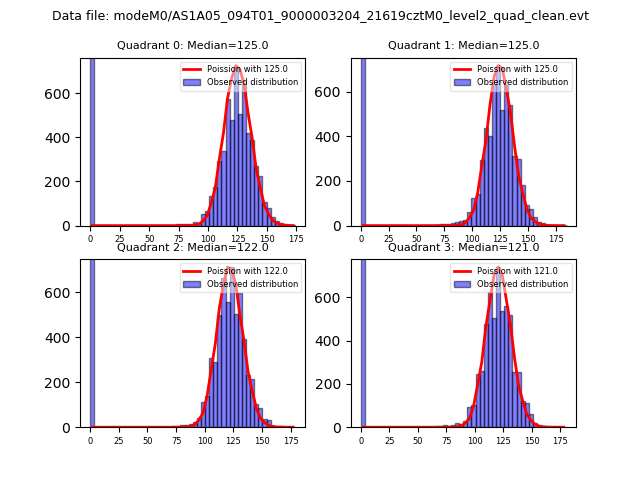

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

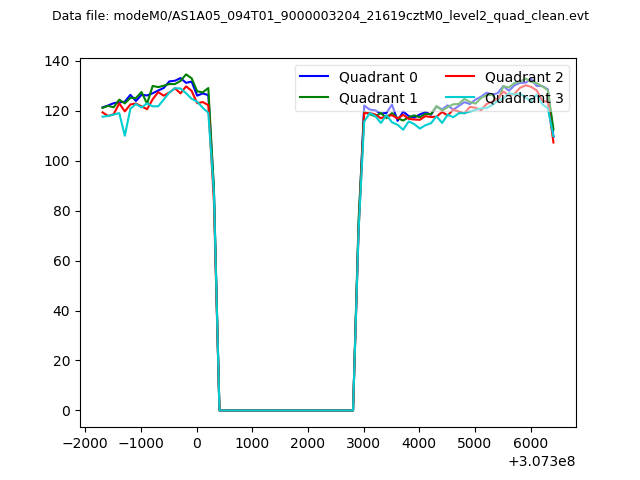

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

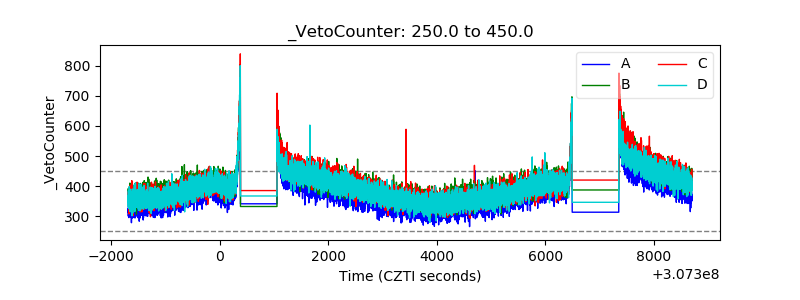

| Veto HV Monitor |  |
| Veto LLD |  |

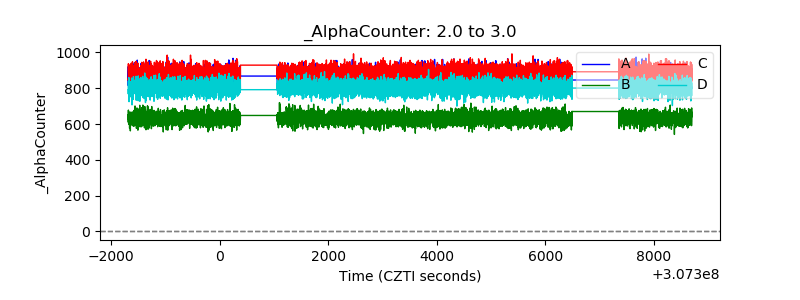

| Alpha Counter |  |

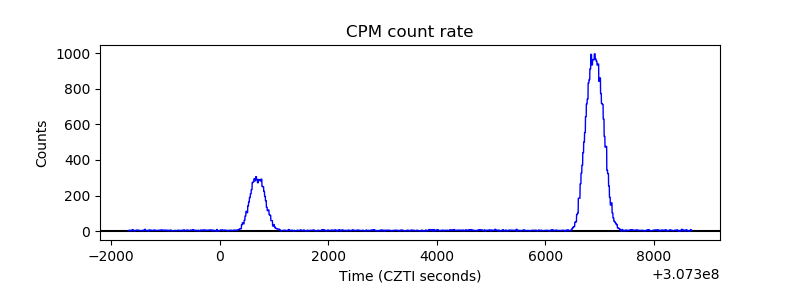

| _CPM_Rate |  |

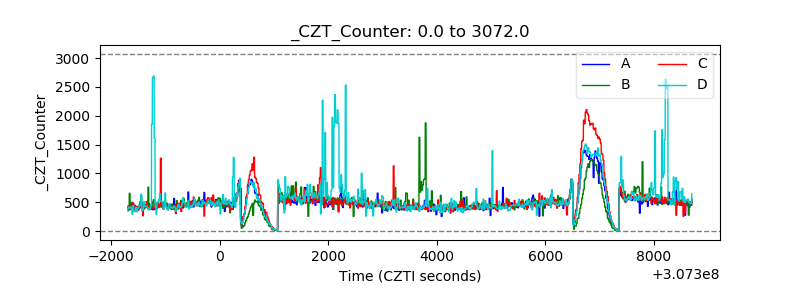

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
