| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21624cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21624cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,314,560 | 111,957,120 |
| Size | 437.1 MB | 106.8 MB |
| Events in quadrant A | 3,166,840 | 746,553 |
| Events in quadrant B | 3,470,257 | 769,293 |
| Events in quadrant C | 3,210,203 | 737,493 |
| Events in quadrant D | 3,610,926 | 703,936 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13338 | 2 |
| B | 0 | 14325 | 2 |
| C | 0 | 13477 | 2 |
| D | 0 | 15054 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6214 | 25 | 0.402317% |
| B | 6214 | 80 | 1.287416% |
| C | 6214 | 66 | 1.062118% |
| D | 6214 | 60 | 0.965562% |

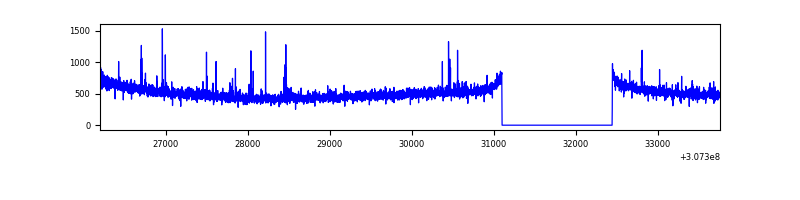

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6215 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7559 | 6215 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7559 | 6215 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7559 | 6215 | 31 | 31 | 0.41% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 42616 | 259.04 | 809 | 795 | 161.4 |
| A | 13 | 254 | 9162 | 51.83 | 809 | 795 | 161.4 |
| A | 0 | 226 | 7059 | 38.8 | 809 | 795 | 161.4 |
| B | 0 | 197 | 113320 | 744.91 | 817 | 798 | 151.1 |
| B | 0 | 230 | 45229 | 294.14 | 817 | 798 | 151.1 |
| B | 3 | 64 | 41474 | 269.28 | 817 | 798 | 151.1 |
| C | 14 | 238 | 127389 | 690.98 | 787 | 795 | 183.2 |
| C | 10 | 22 | 10706 | 54.1 | 787 | 795 | 183.2 |
| C | 13 | 61 | 5623 | 26.35 | 787 | 795 | 183.2 |
| D | 7 | 238 | 255274 | 1357.28 | 780 | 758 | 187.5 |
| D | 2 | 136 | 112541 | 596.12 | 780 | 758 | 187.5 |
| D | 13 | 153 | 111792 | 592.12 | 780 | 758 | 187.5 |

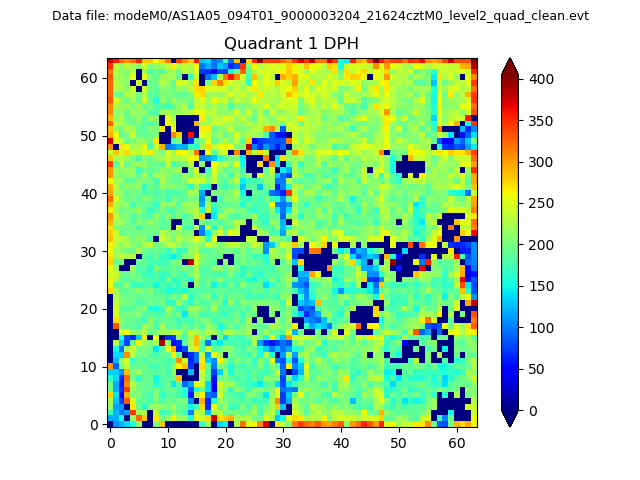

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

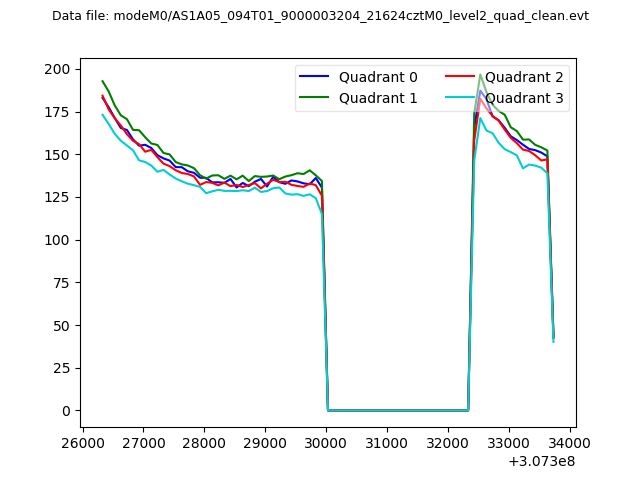

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

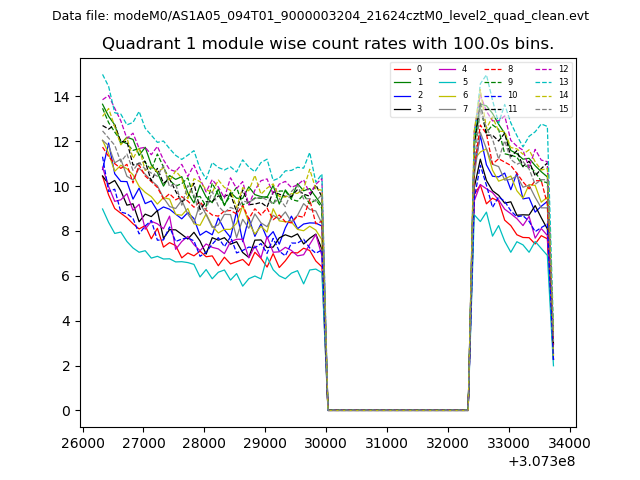

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

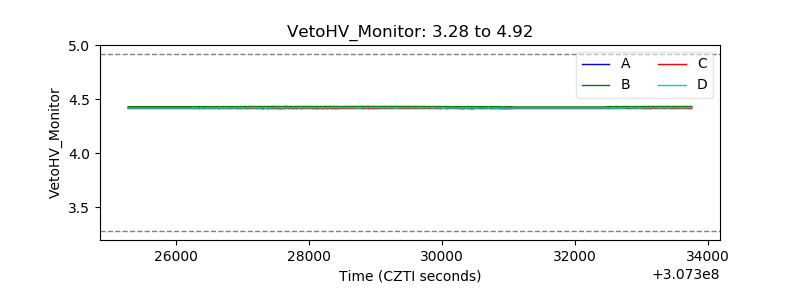

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

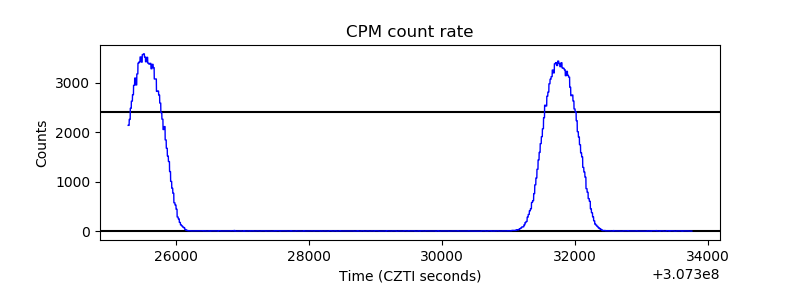

| _CPM_Rate |  |

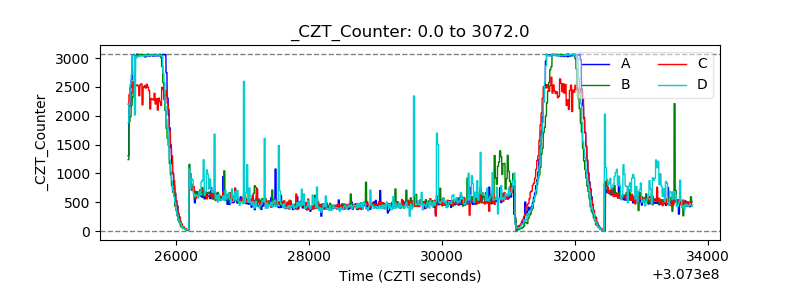

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

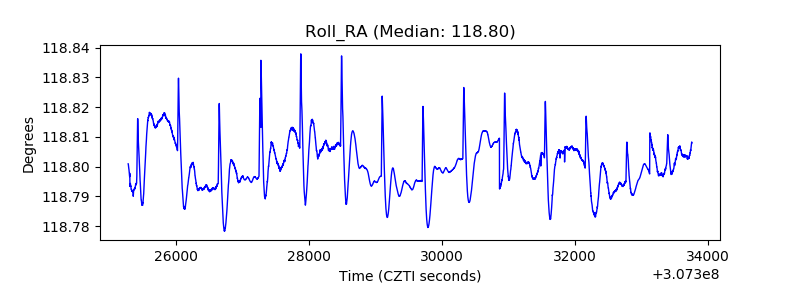

| _Roll_RA |  |
| Veto Counter |  |
