| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21625cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21625cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,407,360 | 112,714,560 |
| Size | 479.1 MB | 107.5 MB |
| Events in quadrant A | 3,296,916 | 750,636 |
| Events in quadrant B | 3,480,163 | 772,999 |
| Events in quadrant C | 3,266,736 | 740,118 |
| Events in quadrant D | 4,732,618 | 698,664 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13776 | 2 |
| B | 0 | 14455 | 2 |
| C | 0 | 13721 | 2 |
| D | 0 | 18536 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6461 | 24 | 0.371460% |
| B | 6462 | 70 | 1.083256% |
| C | 6462 | 53 | 0.820180% |
| D | 6462 | 306 | 4.735376% |

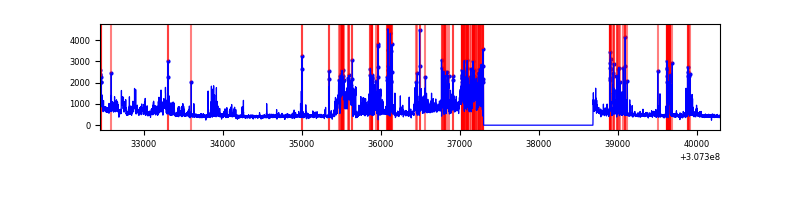

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7846 | 6462 | 5 | 5 | 0.06% | 0.08% |  |
| B | 7847 | 6463 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7847 | 6463 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7847 | 6463 | 180 | 180 | 2.29% | 2.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 64913 | 386.39 | 833 | 818 | 165.9 |
| A | 15 | 236 | 20721 | 119.98 | 833 | 818 | 165.9 |
| A | 13 | 254 | 8901 | 48.73 | 833 | 818 | 165.9 |
| B | 0 | 229 | 72484 | 463.98 | 838 | 819 | 154.5 |
| B | 3 | 64 | 47469 | 302.03 | 838 | 819 | 154.5 |
| B | 0 | 197 | 34394 | 217.37 | 838 | 819 | 154.5 |
| C | 14 | 238 | 127652 | 683.69 | 804 | 812 | 185.5 |
| C | 13 | 61 | 5831 | 27.05 | 804 | 812 | 185.5 |
| C | 0 | 10 | 2550 | 9.37 | 804 | 812 | 185.5 |
| D | 7 | 238 | 1133712 | 5964.48 | 785 | 764 | 189.9 |
| D | 1 | 52 | 314185 | 1650.03 | 785 | 764 | 189.9 |
| D | 13 | 153 | 126391 | 661.37 | 785 | 764 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

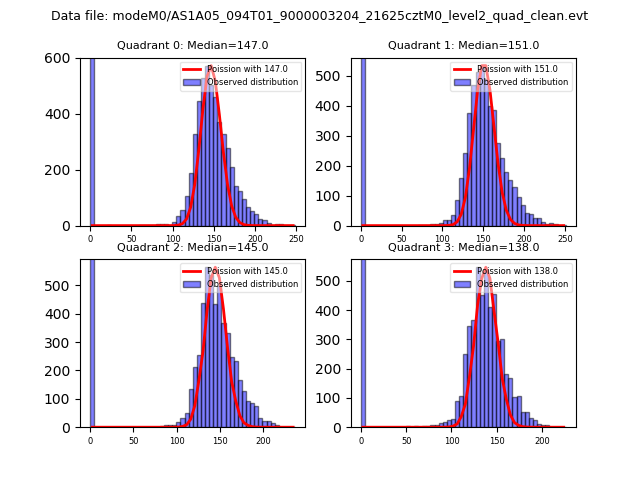

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

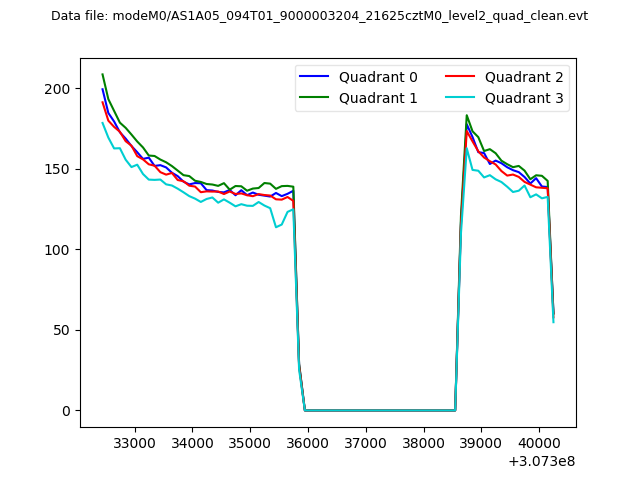

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

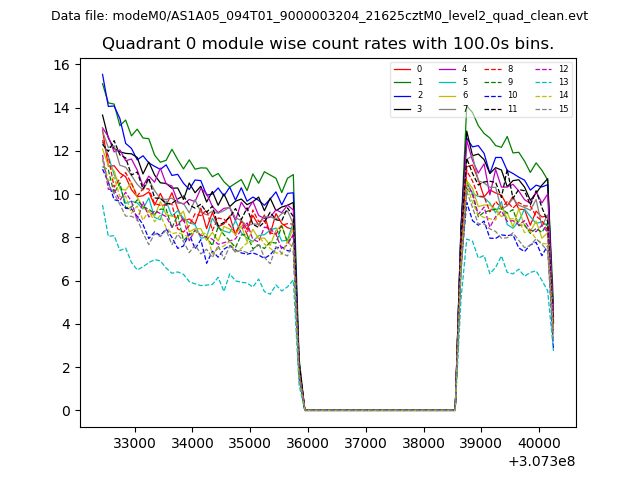

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

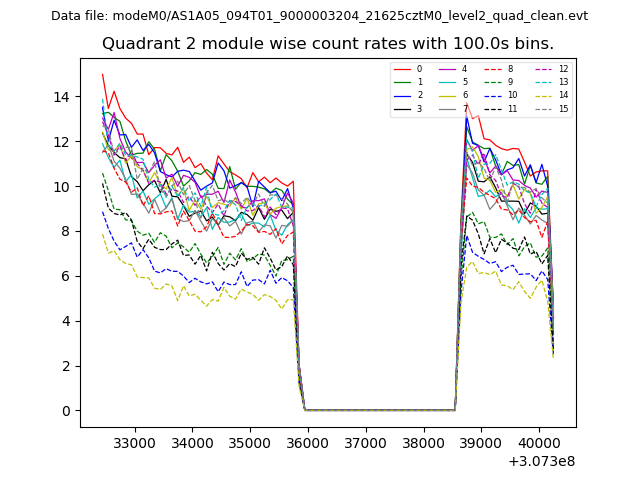

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

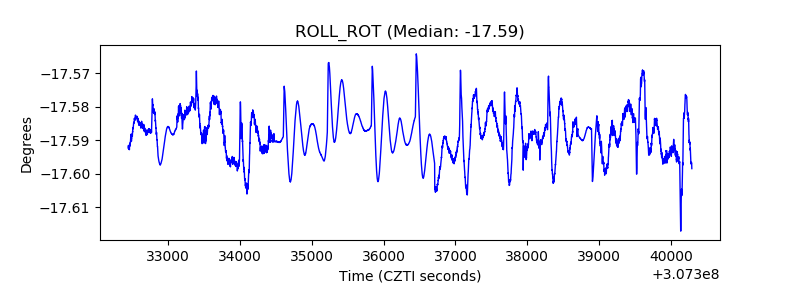

| _ROLL_ROT |  |

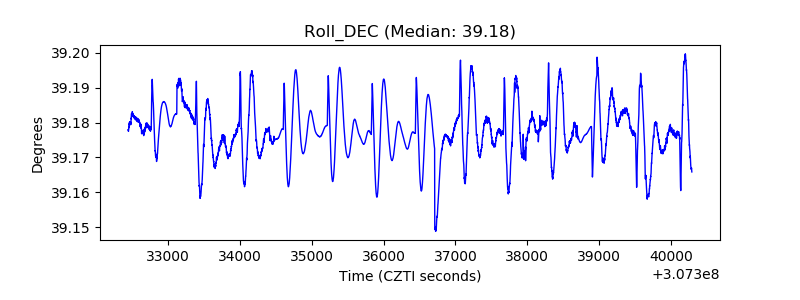

| _Roll_DEC |  |
| _Roll_RA |  |

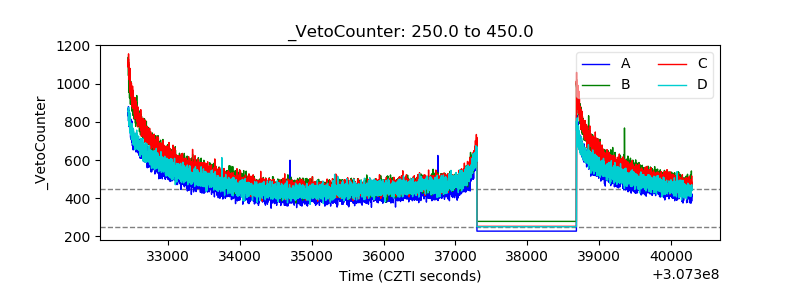

| Veto Counter |  |
