| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003206_21631cztM0_level2.evt | modeM0/AS1A06_002T02_9000003206_21631cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,941,120 | 99,388,800 |
| Size | 473.9 MB | 94.8 MB |
| Events in quadrant A | 3,416,332 | 644,931 |
| Events in quadrant B | 3,524,913 | 655,990 |
| Events in quadrant C | 3,274,187 | 629,651 |
| Events in quadrant D | 4,367,899 | 600,548 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14552 | 1 |
| B | 0 | 14647 | 1 |
| C | 0 | 14114 | 1 |
| D | 0 | 17528 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6878 | 86 | 1.250363% |
| B | 6878 | 86 | 1.250363% |
| C | 6878 | 115 | 1.671998% |
| D | 6879 | 166 | 2.413141% |

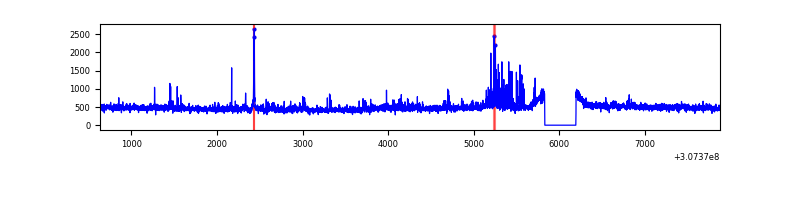

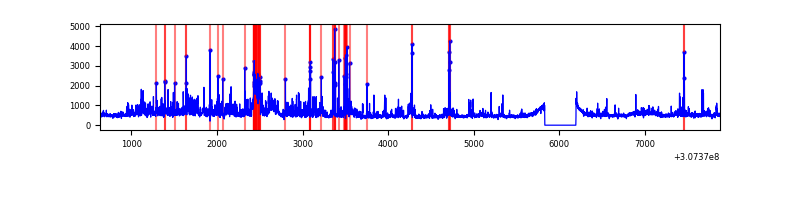

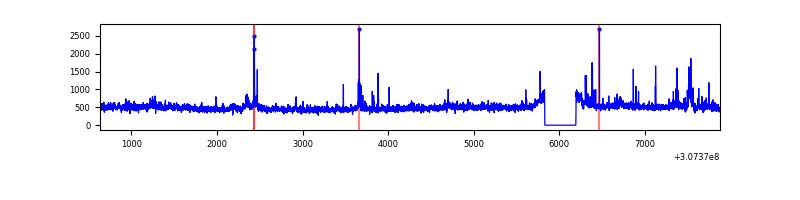

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7243 | 6879 | 4 | 4 | 0.06% | 0.06% |  |
| B | 7243 | 6879 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7243 | 6879 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7244 | 6880 | 69 | 69 | 0.95% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 209015 | 1237.29 | 828 | 810 | 168.3 |
| A | 5 | 16 | 14474 | 81.2 | 828 | 810 | 168.3 |
| A | 13 | 254 | 10092 | 55.16 | 828 | 810 | 168.3 |
| B | 0 | 219 | 59378 | 372.19 | 824 | 802 | 157.4 |
| B | 3 | 64 | 43285 | 269.94 | 824 | 802 | 157.4 |
| B | 0 | 229 | 41583 | 259.12 | 824 | 802 | 157.4 |
| C | 14 | 238 | 125874 | 667.19 | 799 | 806 | 187.5 |
| C | 0 | 207 | 13357 | 66.95 | 799 | 806 | 187.5 |
| C | 9 | 54 | 9698 | 47.44 | 799 | 806 | 187.5 |
| D | 1 | 52 | 623977 | 3156.72 | 806 | 782 | 197.4 |
| D | 2 | 136 | 189742 | 957.15 | 806 | 782 | 197.4 |
| D | 14 | 35 | 166965 | 841.78 | 806 | 782 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

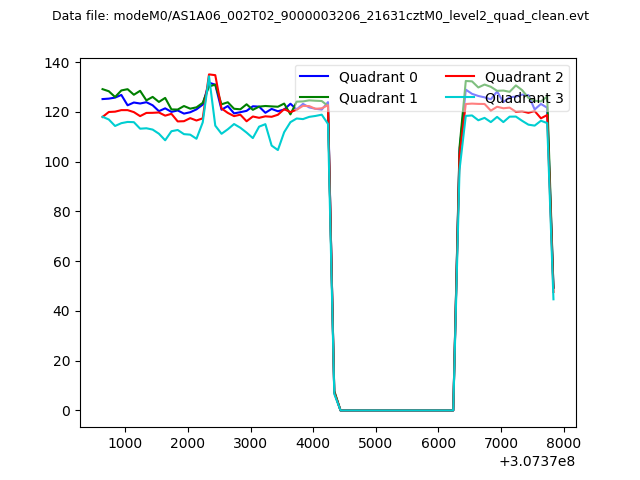

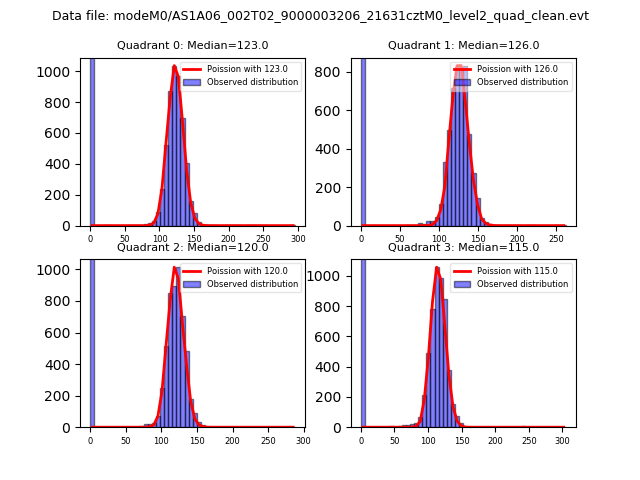

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

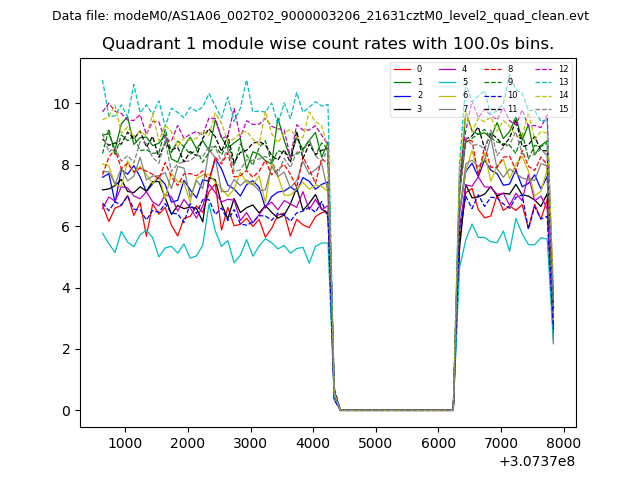

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

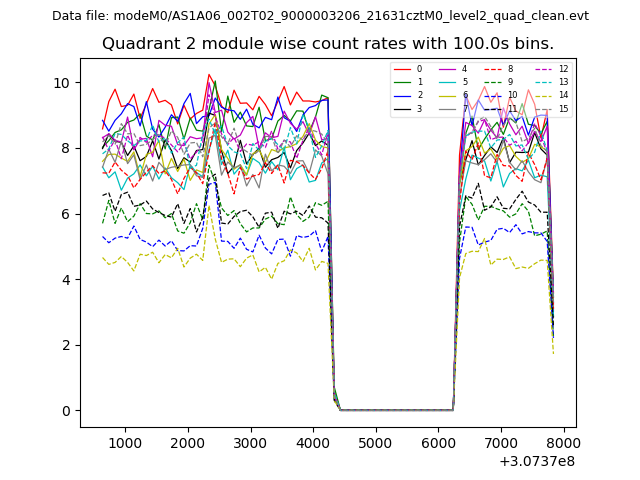

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

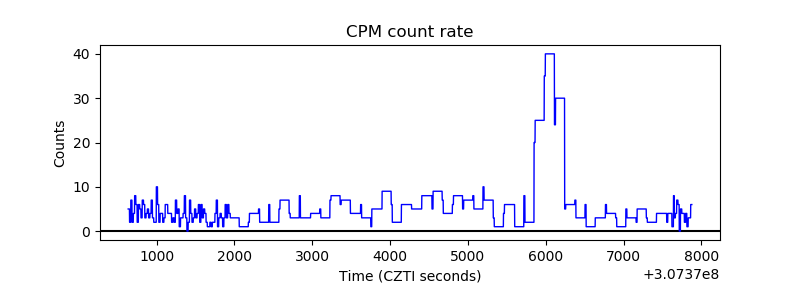

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
