| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003206_21633cztM0_level2.evt | modeM0/AS1A06_002T02_9000003206_21633cztM0_level2_quad_clean.evt |
| Size (bytes) | 878,489,280 | 166,155,840 |
| Size | 837.8 MB | 158.5 MB |
| Events in quadrant A | 6,072,399 | 1,062,832 |
| Events in quadrant B | 6,229,551 | 1,078,367 |
| Events in quadrant C | 5,825,966 | 1,037,503 |
| Events in quadrant D | 7,636,948 | 995,361 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26185 | 3 |
| B | 0 | 26597 | 2 |
| C | 0 | 25369 | 2 |
| D | 0 | 31039 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 250 | 0 |
| B | 0 | 250 | 0 |
| C | 0 | 250 | 0 |
| D | 0 | 250 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12408 | 116 | 0.934881% |
| B | 12409 | 131 | 1.055685% |
| C | 12409 | 157 | 1.265211% |
| D | 12409 | 329 | 2.651301% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

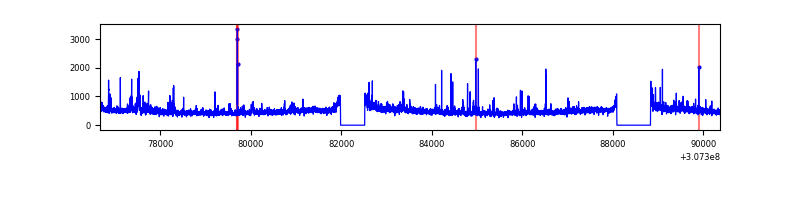

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13688 | 12410 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13689 | 12411 | 5 | 5 | 0.04% | 0.04% |  |
| C | 13689 | 12411 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13689 | 12411 | 147 | 147 | 1.07% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 395976 | 1332.58 | 1469 | 1435 | 296.1 |
| A | 13 | 254 | 18235 | 56.74 | 1469 | 1435 | 296.1 |
| A | 5 | 16 | 15033 | 45.93 | 1469 | 1435 | 296.1 |
| B | 0 | 190 | 81372 | 285.74 | 1469 | 1431 | 279.8 |
| B | 3 | 64 | 76618 | 268.75 | 1469 | 1431 | 279.8 |
| B | 0 | 219 | 73156 | 256.37 | 1469 | 1431 | 279.8 |
| C | 14 | 238 | 222408 | 661.28 | 1423 | 1430 | 334.2 |
| C | 9 | 54 | 14819 | 40.07 | 1423 | 1430 | 334.2 |
| C | 0 | 207 | 14514 | 39.15 | 1423 | 1430 | 334.2 |
| D | 1 | 52 | 932620 | 2689.98 | 1427 | 1387 | 346.2 |
| D | 7 | 238 | 349277 | 1004.92 | 1427 | 1387 | 346.2 |
| D | 2 | 136 | 303483 | 872.64 | 1427 | 1387 | 346.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

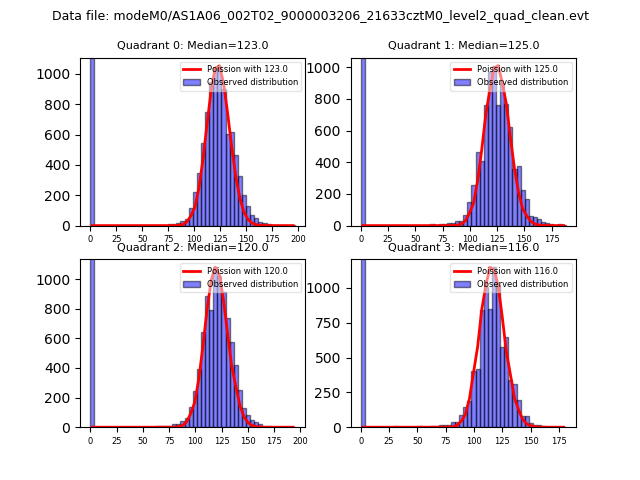

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

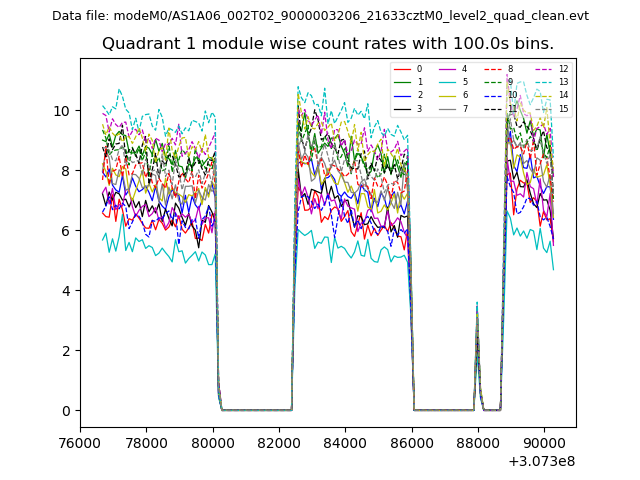

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

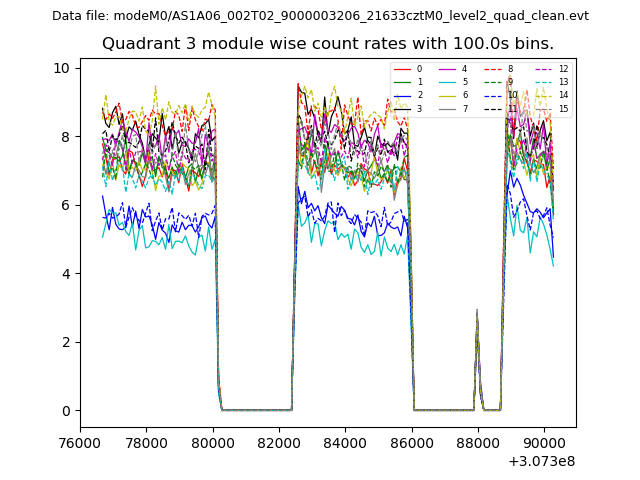

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

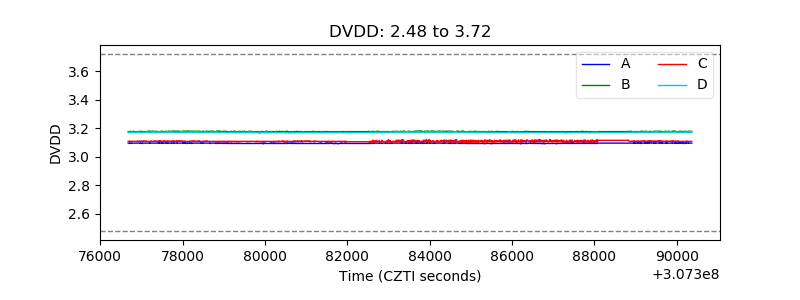

| D_VDD |  |

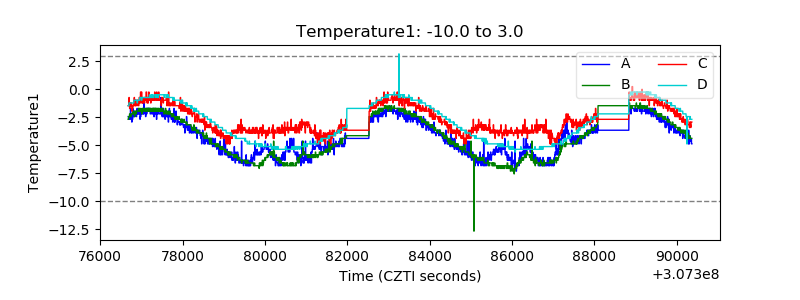

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

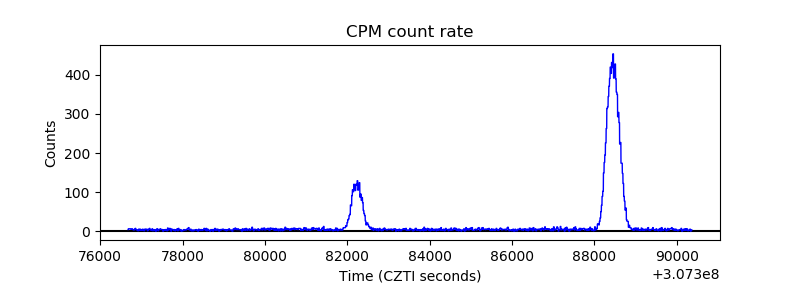

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

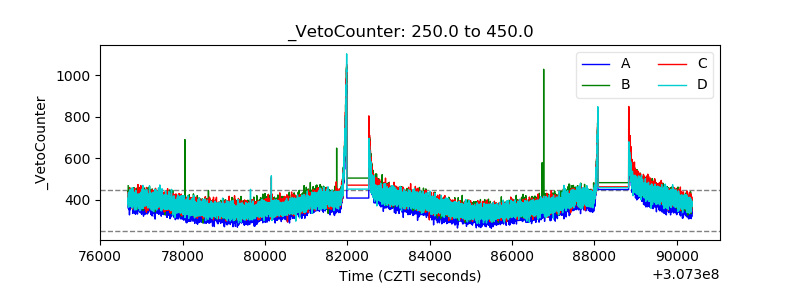

| Veto Counter |  |
