| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003206_21634cztM0_level2.evt | modeM0/AS1A06_002T02_9000003206_21634cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,305,600 | 91,909,440 |
| Size | 476.2 MB | 87.7 MB |
| Events in quadrant A | 3,383,527 | 590,762 |
| Events in quadrant B | 3,372,540 | 600,237 |
| Events in quadrant C | 3,117,249 | 579,660 |
| Events in quadrant D | 4,798,932 | 551,134 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14294 | 1 |
| B | 0 | 14364 | 1 |
| C | 0 | 13566 | 1 |
| D | 0 | 18789 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6614 | 16 | 0.241911% |
| B | 6614 | 40 | 0.604778% |
| C | 6614 | 50 | 0.755972% |
| D | 6615 | 326 | 4.928193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6615 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7544 | 6615 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7544 | 6615 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7545 | 6616 | 272 | 272 | 3.61% | 4.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 351398 | 2208.23 | 785 | 768 | 158.8 |
| A | 13 | 254 | 9198 | 53.09 | 785 | 768 | 158.8 |
| A | 5 | 16 | 7400 | 41.76 | 785 | 768 | 158.8 |
| B | 0 | 219 | 67401 | 441.24 | 787 | 766 | 151.0 |
| B | 0 | 229 | 62722 | 410.26 | 787 | 766 | 151.0 |
| B | 3 | 64 | 44941 | 292.51 | 787 | 766 | 151.0 |
| C | 14 | 238 | 120817 | 668.36 | 762 | 768 | 179.6 |
| C | 10 | 22 | 13947 | 73.37 | 762 | 768 | 179.6 |
| C | 9 | 54 | 5786 | 27.94 | 762 | 768 | 179.6 |
| D | 7 | 238 | 1321911 | 7177.26 | 757 | 736 | 184.1 |
| D | 13 | 153 | 208843 | 1130.54 | 757 | 736 | 184.1 |
| D | 12 | 235 | 80757 | 434.71 | 757 | 736 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

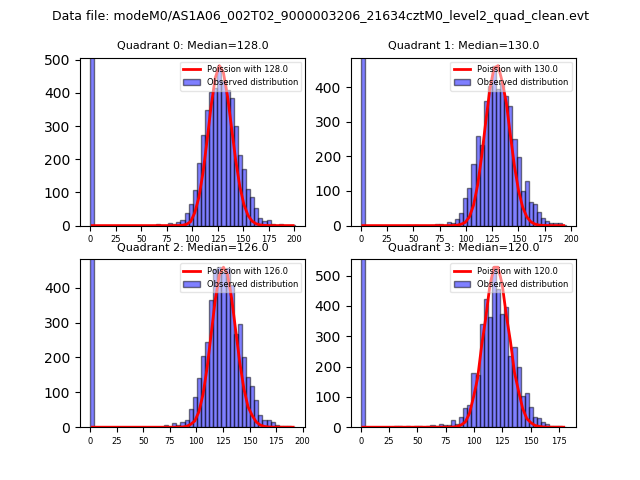

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

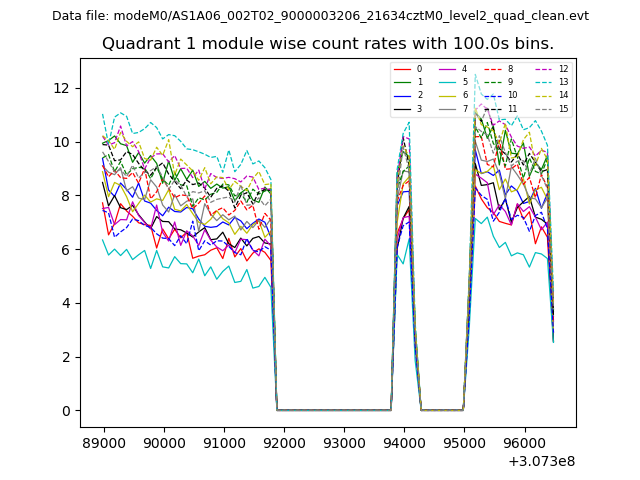

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

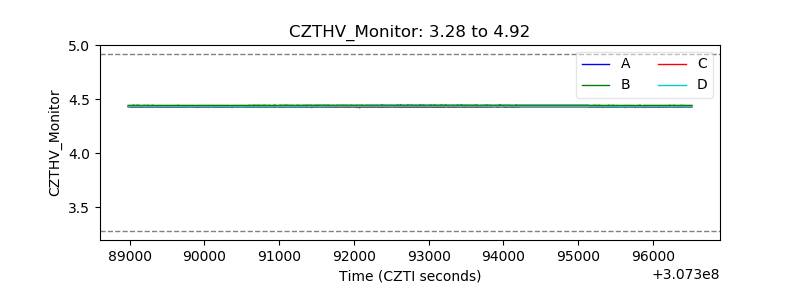

| CZT HV Monitor |  |

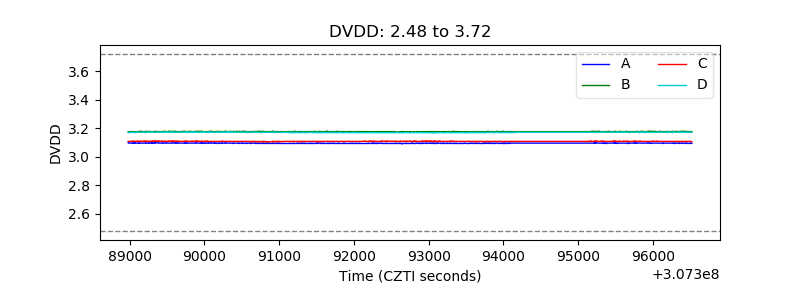

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

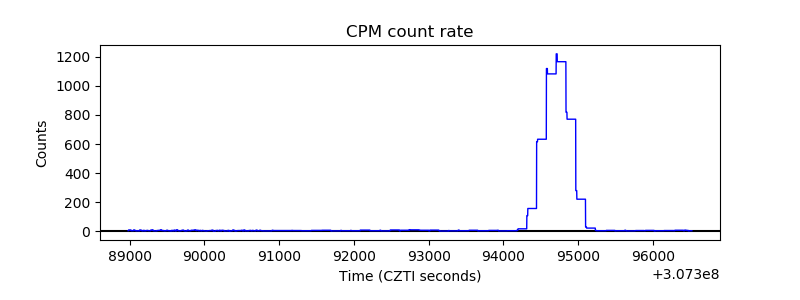

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

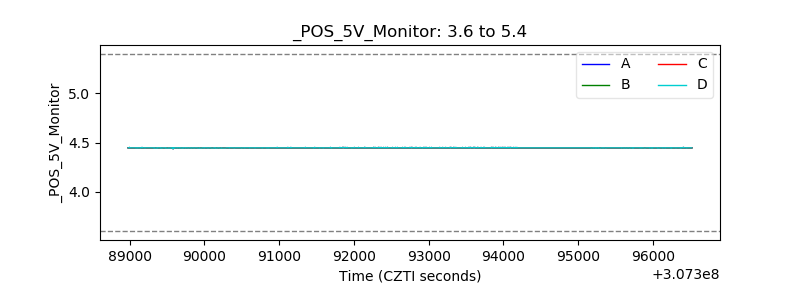

| +5 Volts monitor |  |
| _ROLL_ROT |  |

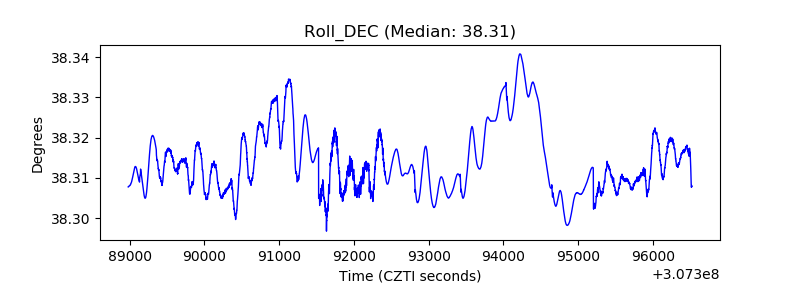

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
