| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003206_21641cztM0_level2.evt | modeM0/AS1A06_002T02_9000003206_21641cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,557,760 | 74,067,840 |
| Size | 444.0 MB | 70.6 MB |
| Events in quadrant A | 3,278,133 | 455,584 |
| Events in quadrant B | 3,525,618 | 469,356 |
| Events in quadrant C | 3,299,247 | 439,860 |
| Events in quadrant D | 3,550,879 | 420,269 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13628 | 2 |
| B | 0 | 14261 | 2 |
| C | 0 | 13696 | 2 |
| D | 0 | 14807 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6558 | 51 | 0.777676% |
| B | 6558 | 102 | 1.555352% |
| C | 6558 | 83 | 1.265630% |
| D | 6558 | 79 | 1.204636% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7788 | 6559 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7788 | 6559 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7788 | 6559 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7788 | 6559 | 43 | 43 | 0.55% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8795 | 47.11 | 849 | 834 | 169.0 |
| A | 10 | 253 | 7601 | 40.05 | 849 | 834 | 169.0 |
| A | 0 | 226 | 7477 | 39.31 | 849 | 834 | 169.0 |
| B | 0 | 229 | 87039 | 534.95 | 854 | 834 | 161.1 |
| B | 3 | 64 | 50726 | 309.61 | 854 | 834 | 161.1 |
| B | 0 | 219 | 22601 | 135.07 | 854 | 834 | 161.1 |
| C | 14 | 238 | 128598 | 677.43 | 811 | 818 | 188.6 |
| C | 13 | 61 | 5751 | 26.15 | 811 | 818 | 188.6 |
| C | 1 | 0 | 3528 | 14.37 | 811 | 818 | 188.6 |
| D | 1 | 52 | 175427 | 893.23 | 809 | 787 | 195.5 |
| D | 2 | 136 | 95057 | 482.16 | 809 | 787 | 195.5 |
| D | 9 | 68 | 77217 | 390.91 | 809 | 787 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

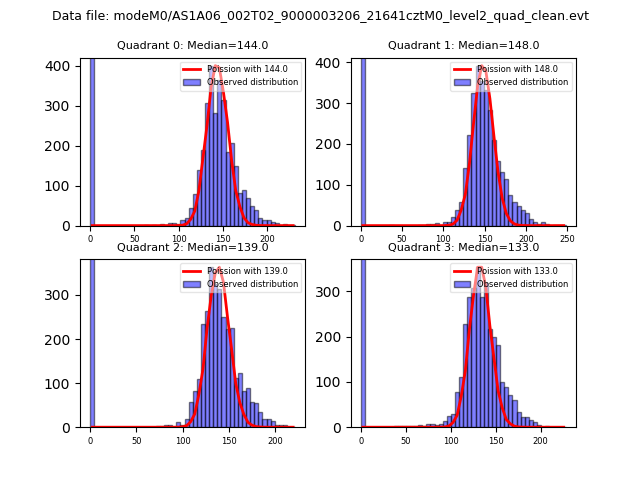

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

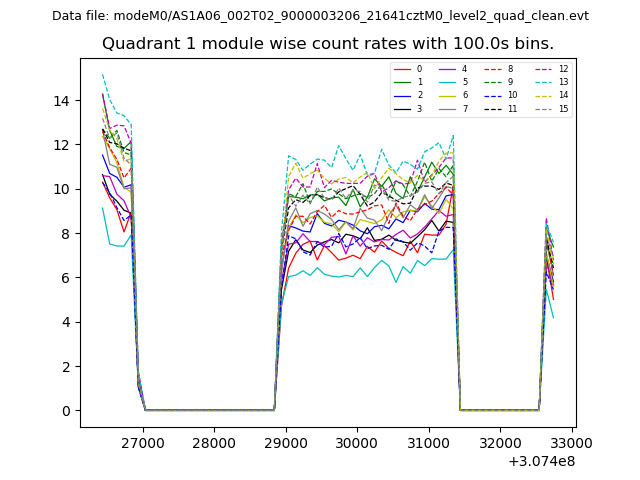

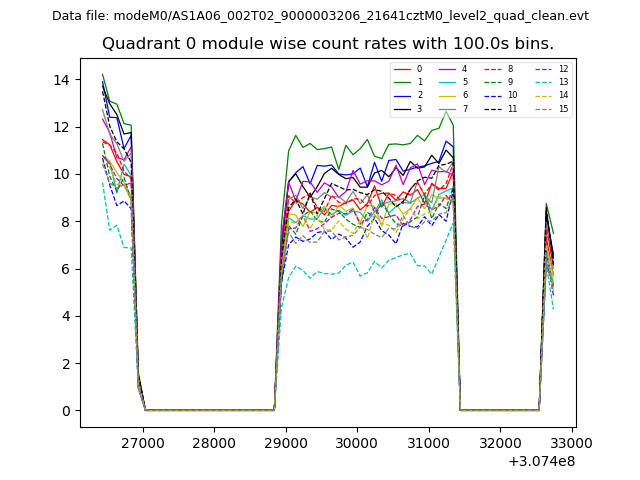

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

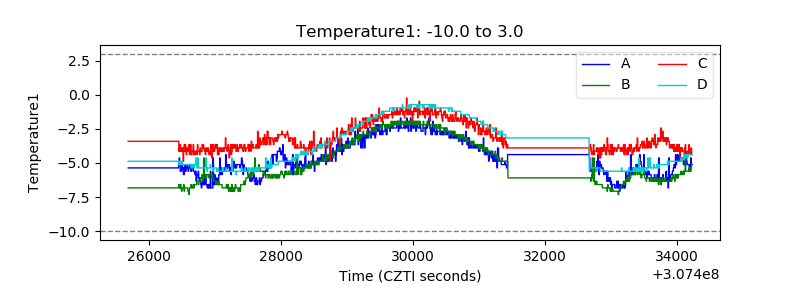

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

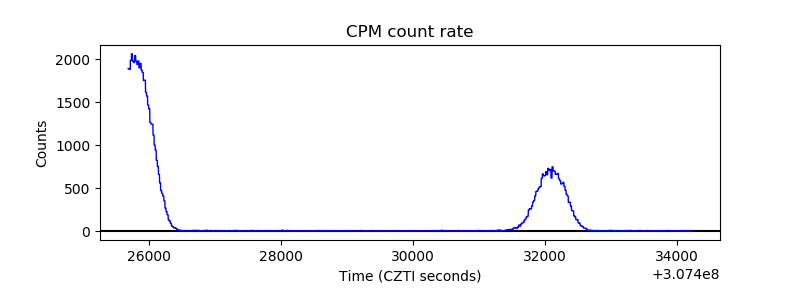

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

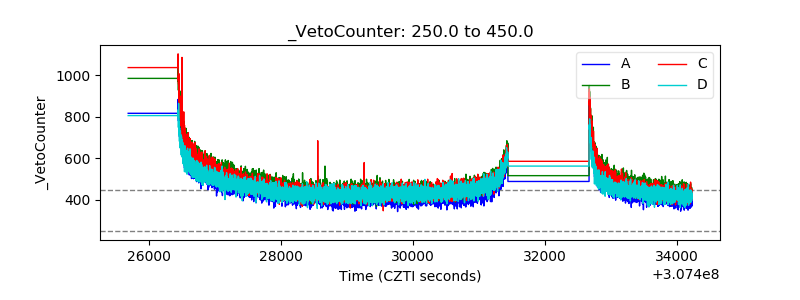

| Veto Counter |  |
