| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T02_9000003206_21649cztM0_level2.evt | modeM0/AS1A06_002T02_9000003206_21649cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,492,800 | 93,093,120 |
| Size | 424.9 MB | 88.8 MB |
| Events in quadrant A | 3,039,808 | 598,110 |
| Events in quadrant B | 3,430,052 | 611,549 |
| Events in quadrant C | 3,121,445 | 586,781 |
| Events in quadrant D | 3,455,238 | 566,012 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13448 | 2 |
| B | 0 | 14427 | 2 |
| C | 0 | 13555 | 2 |
| D | 0 | 14851 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6546 | 18 | 0.274977% |
| B | 6546 | 48 | 0.733272% |
| C | 6546 | 54 | 0.824931% |
| D | 6545 | 77 | 1.176471% |

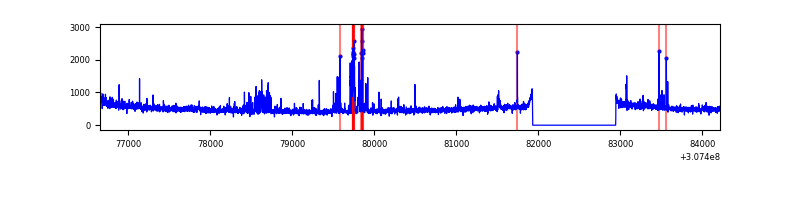

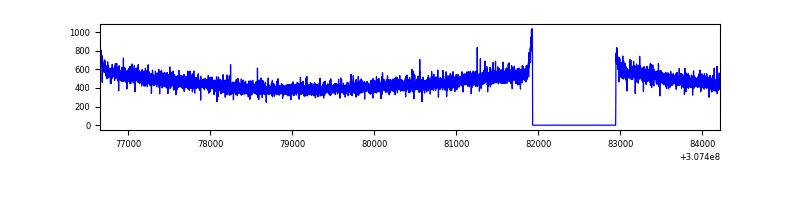

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6547 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7561 | 6547 | 18 | 18 | 0.24% | 0.27% |  |
| C | 7561 | 6547 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7560 | 6546 | 36 | 36 | 0.48% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8800 | 50.68 | 788 | 770 | 158.5 |
| A | 0 | 226 | 6766 | 37.84 | 788 | 770 | 158.5 |
| A | 3 | 137 | 6637 | 37.03 | 788 | 770 | 158.5 |
| B | 3 | 64 | 146847 | 974.62 | 790 | 768 | 149.9 |
| B | 0 | 229 | 53769 | 353.62 | 790 | 768 | 149.9 |
| B | 4 | 216 | 35677 | 232.91 | 790 | 768 | 149.9 |
| C | 14 | 238 | 118601 | 654.78 | 765 | 768 | 180.0 |
| C | 10 | 22 | 10691 | 55.14 | 765 | 768 | 180.0 |
| C | 0 | 207 | 9103 | 46.32 | 765 | 768 | 180.0 |
| D | 7 | 238 | 174206 | 932.65 | 769 | 748 | 186.0 |
| D | 13 | 174 | 91464 | 487.76 | 769 | 748 | 186.0 |
| D | 13 | 153 | 83124 | 442.92 | 769 | 748 | 186.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

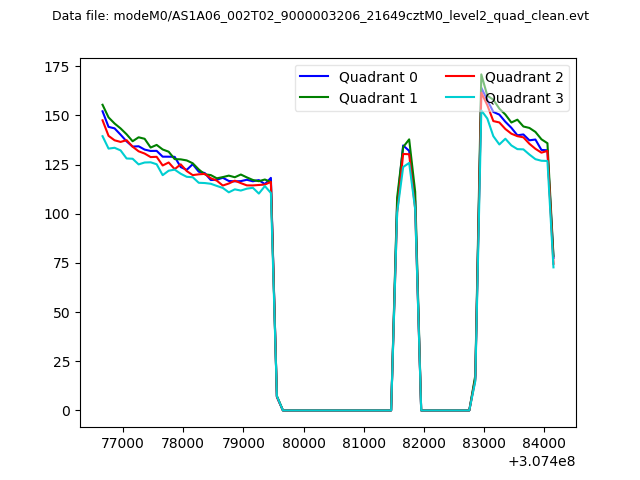

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

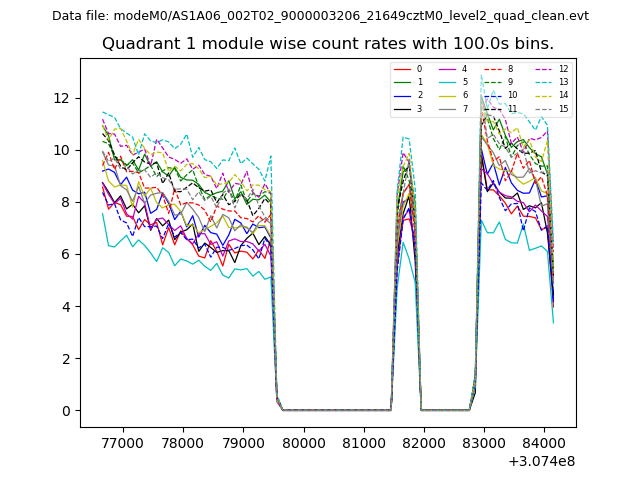

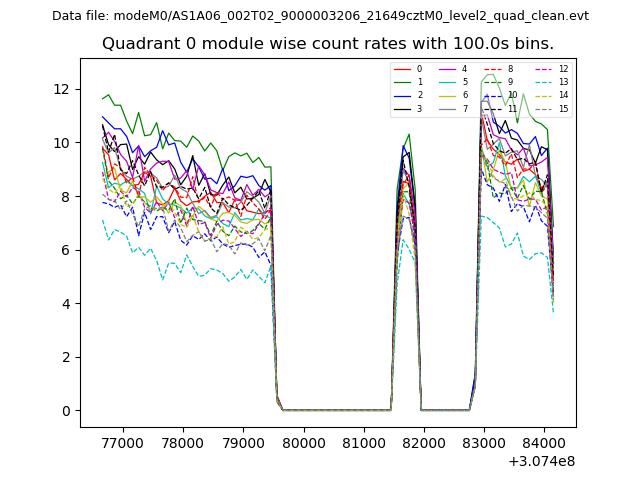

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

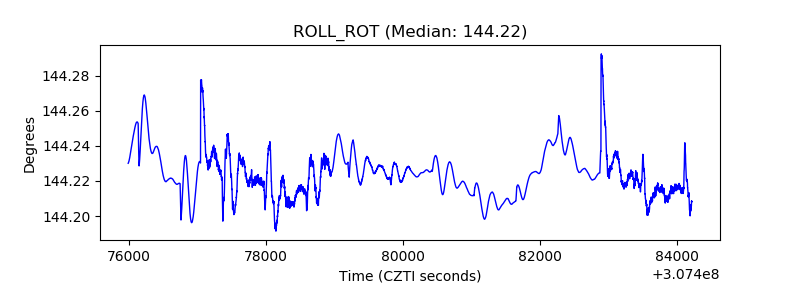

| _ROLL_ROT |  |

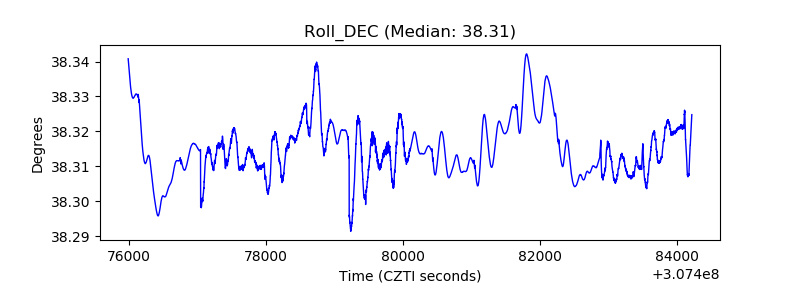

| _Roll_DEC |  |
| _Roll_RA |  |

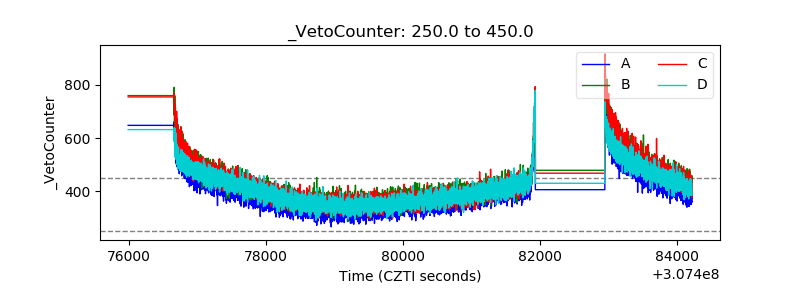

| Veto Counter |  |
