| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_143T01_9000003208_21671cztM0_level2.evt | modeM0/AS1T03_143T01_9000003208_21671cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,273,280 | 85,890,240 |
| Size | 520.0 MB | 81.9 MB |
| Events in quadrant A | 3,417,623 | 546,136 |
| Events in quadrant B | 3,690,024 | 551,681 |
| Events in quadrant C | 3,709,276 | 528,521 |
| Events in quadrant D | 5,231,873 | 497,030 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14176 | 2 |
| B | 0 | 14924 | 2 |
| C | 0 | 15091 | 2 |
| D | 0 | 20020 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6850 | 125 | 1.824818% |
| B | 6850 | 185 | 2.700730% |
| C | 6850 | 193 | 2.817518% |
| D | 6849 | 379 | 5.533655% |

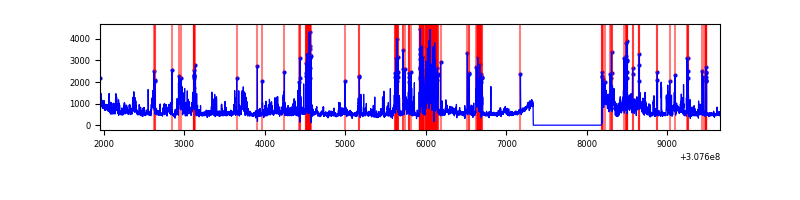

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7700 | 6851 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7700 | 6851 | 14 | 14 | 0.18% | 0.20% |  |
| C | 7700 | 6851 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7699 | 6850 | 223 | 223 | 2.90% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8913 | 45.03 | 887 | 869 | 178.6 |
| A | 0 | 226 | 7501 | 37.13 | 887 | 869 | 178.6 |
| A | 3 | 137 | 7145 | 35.14 | 887 | 869 | 178.6 |
| B | 3 | 64 | 109227 | 646.73 | 881 | 861 | 167.6 |
| B | 14 | 1 | 47847 | 280.41 | 881 | 861 | 167.6 |
| B | 0 | 229 | 28342 | 164.01 | 881 | 861 | 167.6 |
| C | 8 | 208 | 257081 | 1292.98 | 847 | 851 | 198.2 |
| C | 14 | 238 | 133816 | 670.96 | 847 | 851 | 198.2 |
| C | 10 | 22 | 8904 | 40.63 | 847 | 851 | 198.2 |
| D | 7 | 238 | 1120659 | 5518.9 | 842 | 821 | 202.9 |
| D | 1 | 52 | 735781 | 3622.1 | 842 | 821 | 202.9 |
| D | 5 | 32 | 61004 | 296.6 | 842 | 821 | 202.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

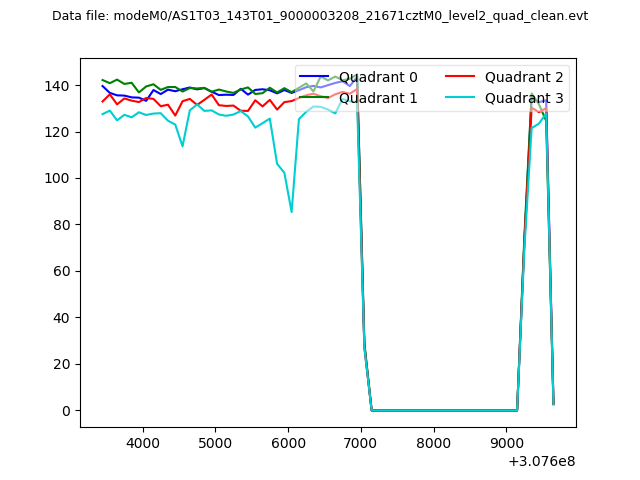

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

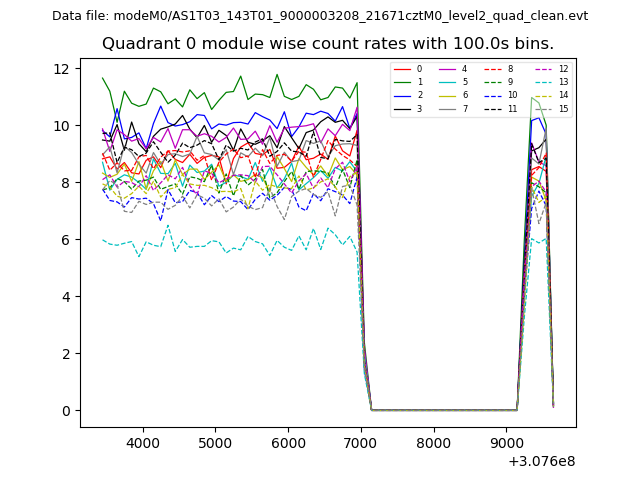

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

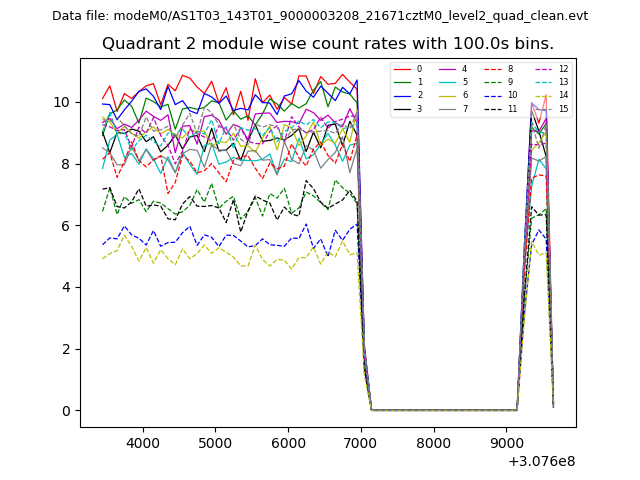

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

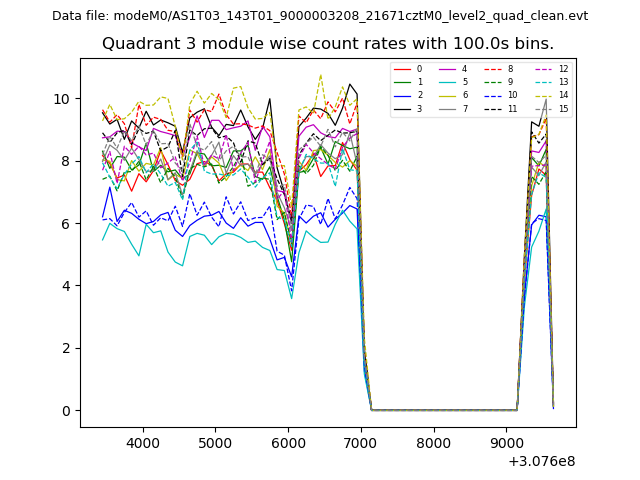

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

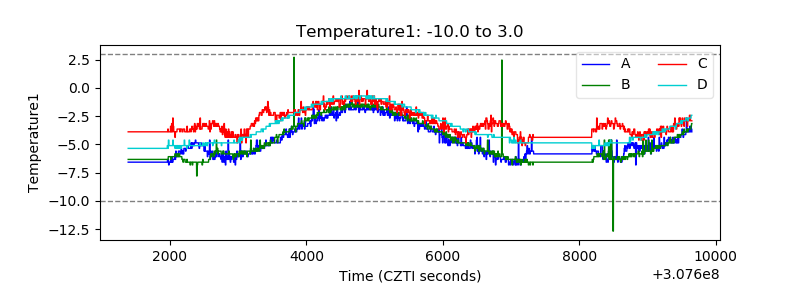

| Temperature 1 |  |

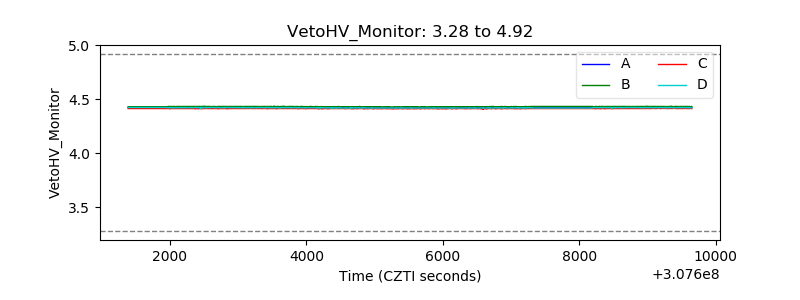

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

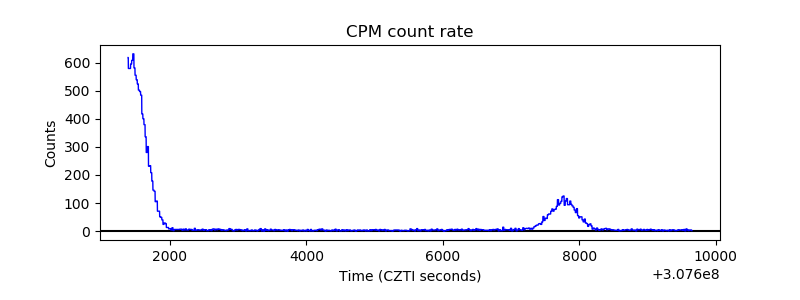

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
