| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_143T01_9000003208_21677cztM0_level2.evt | modeM0/AS1T03_143T01_9000003208_21677cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,258,170,560 | 380,436,480 |
| Size | 2.1 GB | 362.8 MB |
| Events in quadrant A | 14,095,533 | 2,437,033 |
| Events in quadrant B | 16,040,224 | 2,454,642 |
| Events in quadrant C | 15,271,507 | 2,361,069 |
| Events in quadrant D | 20,970,998 | 2,221,329 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 606 | 0 |
| B | 0 | 606 | 0 |
| C | 0 | 606 | 0 |
| D | 0 | 606 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61297 | 5 |
| B | 0 | 66179 | 5 |
| C | 0 | 64850 | 7 |
| D | 0 | 82113 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29797 | 400 | 1.342417% |
| B | 29798 | 661 | 2.218270% |
| C | 29797 | 575 | 1.929724% |
| D | 29797 | 1545 | 5.185086% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32172 | 29803 | 0 | 0 | 0.00% | 0.00% |  |
| B | 32173 | 29804 | 126 | 126 | 0.39% | 0.42% |  |
| C | 32173 | 29804 | 6 | 6 | 0.02% | 0.02% |  |
| D | 32172 | 29802 | 1128 | 1128 | 3.51% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 44093 | 55.43 | 3650 | 3580 | 730.9 |
| A | 0 | 226 | 31677 | 38.44 | 3650 | 3580 | 730.9 |
| A | 3 | 137 | 30755 | 37.18 | 3650 | 3580 | 730.9 |
| B | 3 | 64 | 789049 | 1133.3 | 3642 | 3551 | 693.1 |
| B | 0 | 229 | 273392 | 389.32 | 3642 | 3551 | 693.1 |
| B | 0 | 189 | 186236 | 263.57 | 3642 | 3551 | 693.1 |
| C | 8 | 208 | 1143313 | 1399.92 | 3479 | 3496 | 814.2 |
| C | 14 | 238 | 545483 | 665.66 | 3479 | 3496 | 814.2 |
| C | 13 | 61 | 24739 | 26.09 | 3479 | 3496 | 814.2 |
| D | 1 | 52 | 3692518 | 4364.82 | 3474 | 3380 | 845.2 |
| D | 1 | 20 | 1090650 | 1286.41 | 3474 | 3380 | 845.2 |
| D | 12 | 16 | 609426 | 717.05 | 3474 | 3380 | 845.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

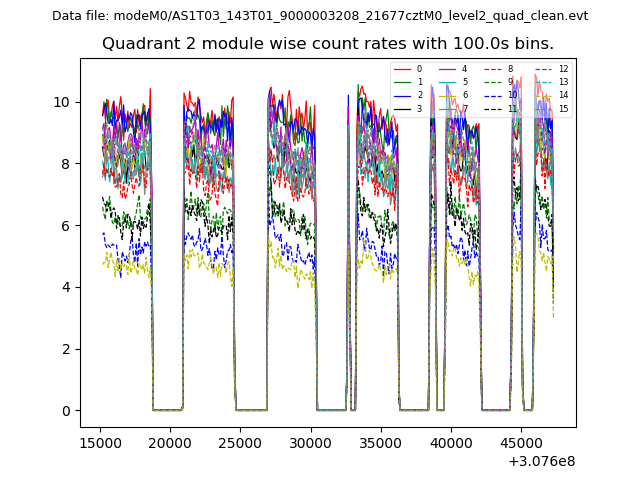

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

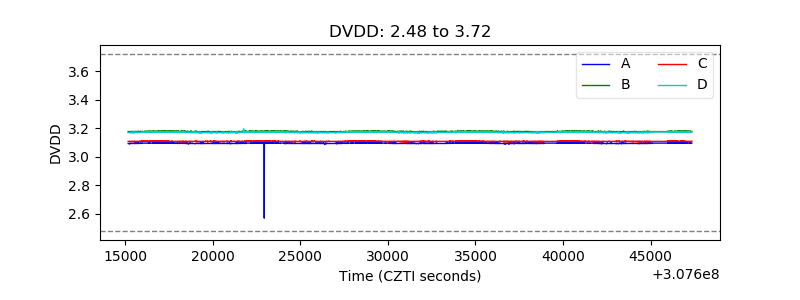

| D_VDD |  |

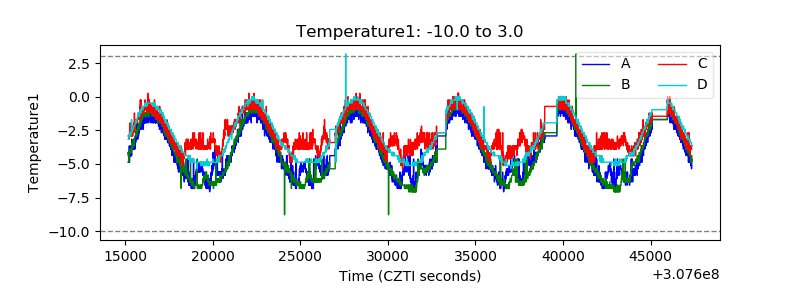

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

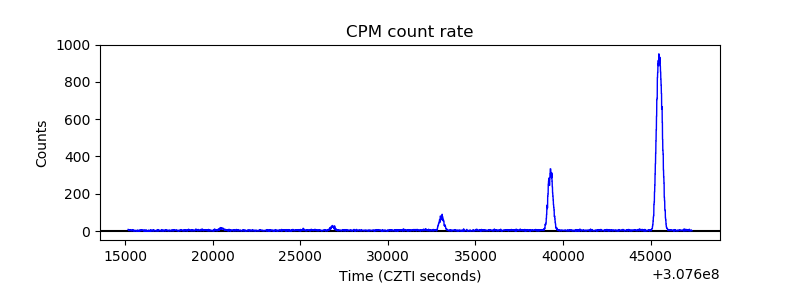

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

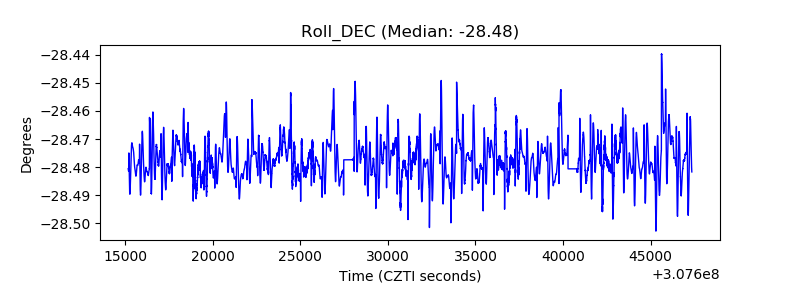

| _Roll_DEC |  |

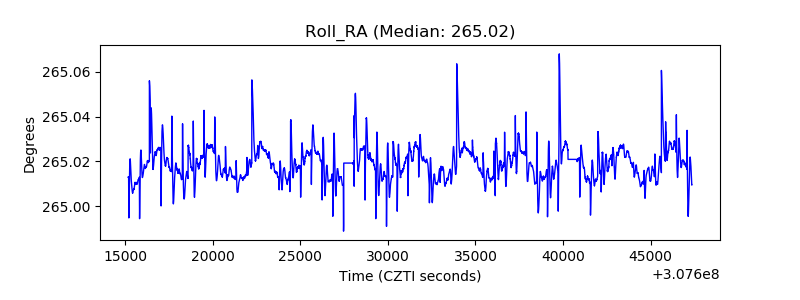

| _Roll_RA |  |

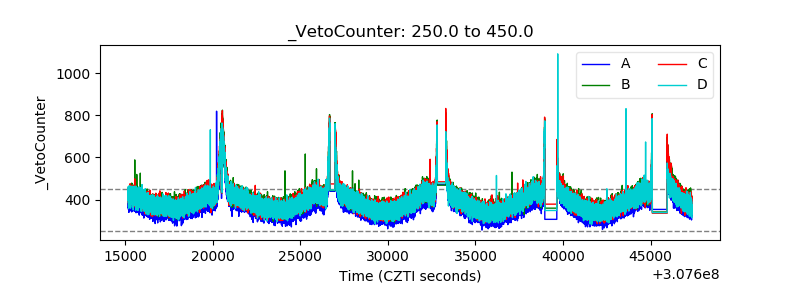

| Veto Counter |  |
