| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_143T01_9000003208_21680cztM0_level2.evt | modeM0/AS1T03_143T01_9000003208_21680cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,411,840 | 91,627,200 |
| Size | 438.1 MB | 87.4 MB |
| Events in quadrant A | 3,100,910 | 595,896 |
| Events in quadrant B | 3,403,499 | 611,555 |
| Events in quadrant C | 3,121,332 | 580,083 |
| Events in quadrant D | 3,855,500 | 543,501 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13182 | 2 |
| B | 0 | 14063 | 2 |
| C | 0 | 13150 | 2 |
| D | 0 | 15793 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6364 | 25 | 0.392835% |
| B | 6364 | 69 | 1.084224% |
| C | 6364 | 47 | 0.738529% |
| D | 6364 | 155 | 2.435575% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7494 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7494 | 6365 | 19 | 19 | 0.25% | 0.30% |  |
| C | 7494 | 6365 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7494 | 6365 | 135 | 135 | 1.80% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 13664 | 80.12 | 801 | 786 | 160.7 |
| A | 13 | 254 | 9670 | 55.27 | 801 | 786 | 160.7 |
| A | 0 | 226 | 6908 | 38.09 | 801 | 786 | 160.7 |
| B | 3 | 64 | 91129 | 592.52 | 806 | 788 | 152.5 |
| B | 0 | 229 | 43120 | 277.64 | 806 | 788 | 152.5 |
| B | 0 | 230 | 40178 | 258.35 | 806 | 788 | 152.5 |
| C | 14 | 238 | 121266 | 666.63 | 767 | 773 | 180.7 |
| C | 10 | 22 | 6044 | 29.16 | 767 | 773 | 180.7 |
| C | 13 | 61 | 5340 | 25.27 | 767 | 773 | 180.7 |
| D | 7 | 238 | 605592 | 3268.82 | 757 | 735 | 185.0 |
| D | 1 | 20 | 166333 | 894.94 | 757 | 735 | 185.0 |
| D | 2 | 136 | 55045 | 293.51 | 757 | 735 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

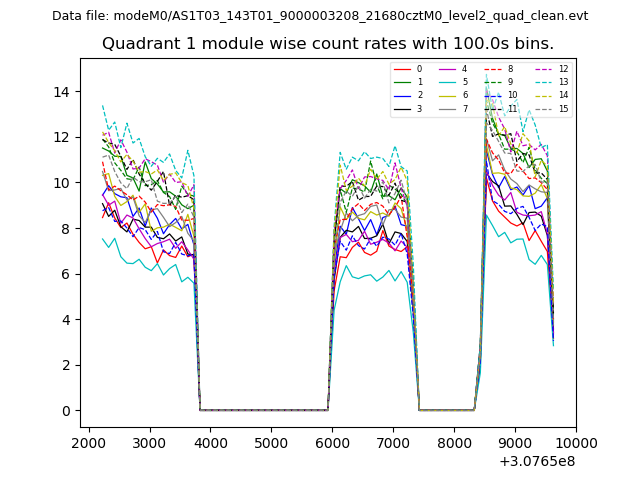

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

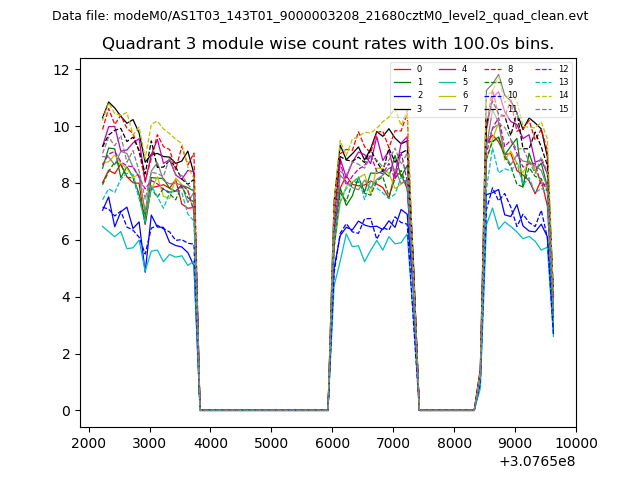

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

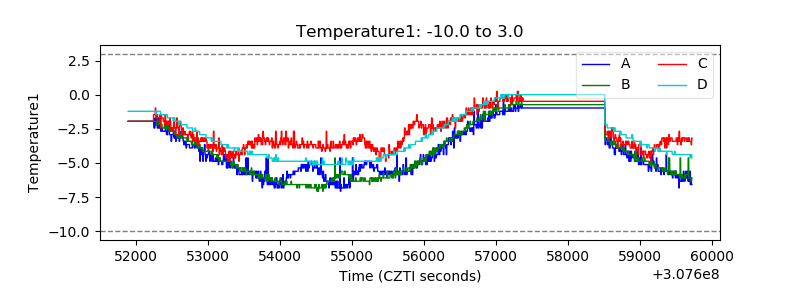

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

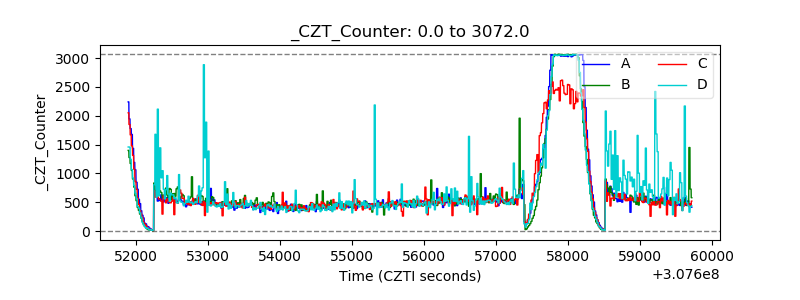

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

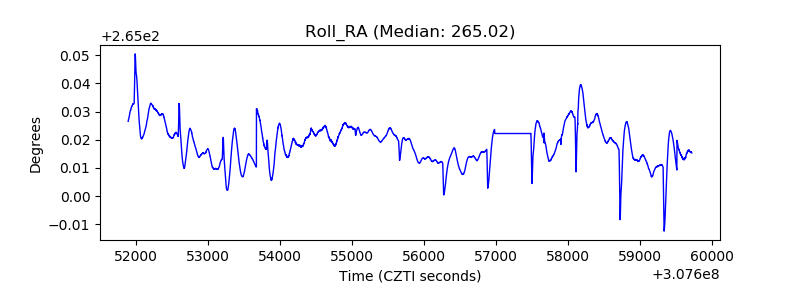

| _Roll_RA |  |
| Veto Counter |  |
