| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_143T01_9000003208_21681cztM0_level2.evt | modeM0/AS1T03_143T01_9000003208_21681cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,628,160 | 84,358,080 |
| Size | 485.1 MB | 80.5 MB |
| Events in quadrant A | 3,278,057 | 545,109 |
| Events in quadrant B | 3,447,537 | 560,759 |
| Events in quadrant C | 3,182,992 | 527,945 |
| Events in quadrant D | 5,071,757 | 484,718 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13449 | 2 |
| B | 0 | 14061 | 2 |
| C | 0 | 13137 | 2 |
| D | 0 | 19276 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6248 | 26 | 0.416133% |
| B | 6248 | 61 | 0.976312% |
| C | 6248 | 54 | 0.864277% |
| D | 6247 | 414 | 6.627181% |

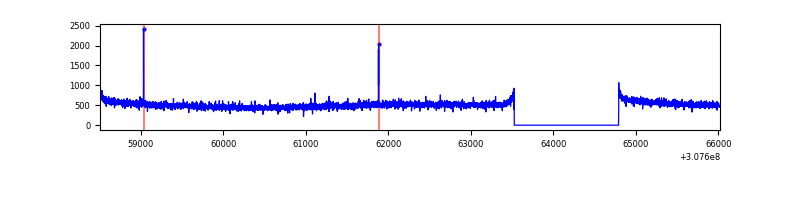

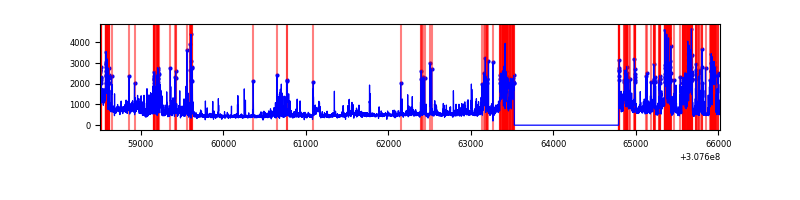

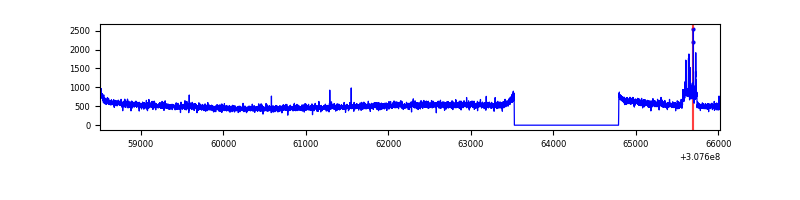

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7513 | 6249 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7513 | 6249 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7513 | 6249 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7512 | 6248 | 367 | 367 | 4.89% | 5.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 146598 | 894.77 | 812 | 796 | 162.9 |
| A | 13 | 254 | 8995 | 50.31 | 812 | 796 | 162.9 |
| A | 0 | 226 | 7186 | 39.21 | 812 | 796 | 162.9 |
| B | 3 | 64 | 113116 | 731.46 | 819 | 802 | 153.5 |
| B | 0 | 230 | 41935 | 267.88 | 819 | 802 | 153.5 |
| B | 0 | 229 | 26217 | 165.52 | 819 | 802 | 153.5 |
| C | 14 | 238 | 124114 | 675.88 | 779 | 786 | 182.5 |
| C | 10 | 22 | 9318 | 46.76 | 779 | 786 | 182.5 |
| C | 13 | 61 | 5503 | 25.85 | 779 | 786 | 182.5 |
| D | 7 | 238 | 1748191 | 9478.36 | 757 | 737 | 184.4 |
| D | 12 | 235 | 178308 | 963.16 | 757 | 737 | 184.4 |
| D | 2 | 136 | 76792 | 412.53 | 757 | 737 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

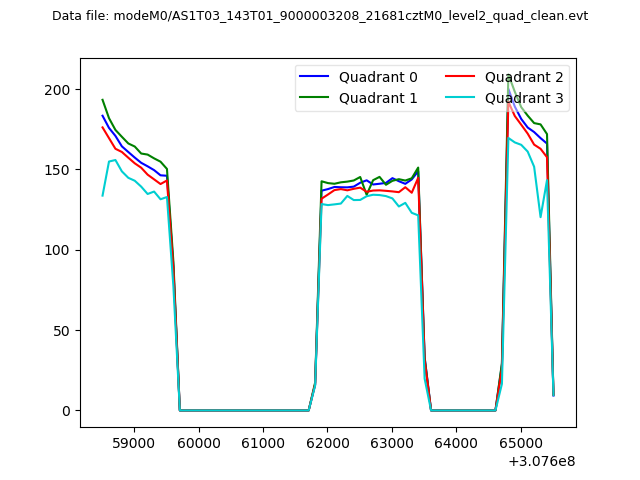

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

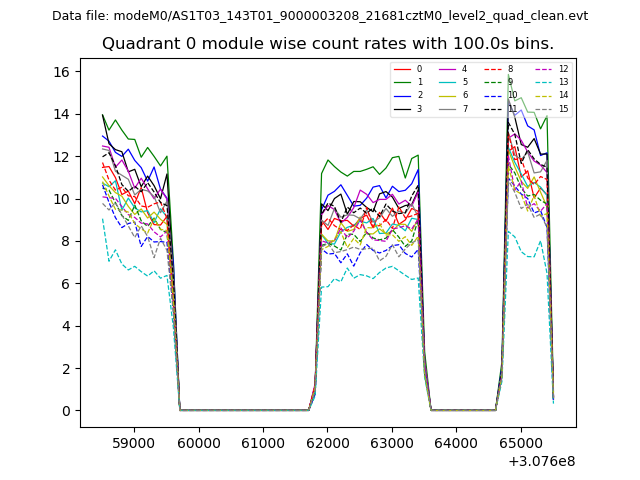

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

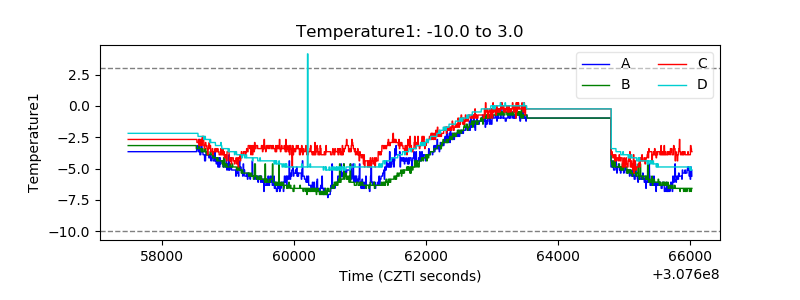

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

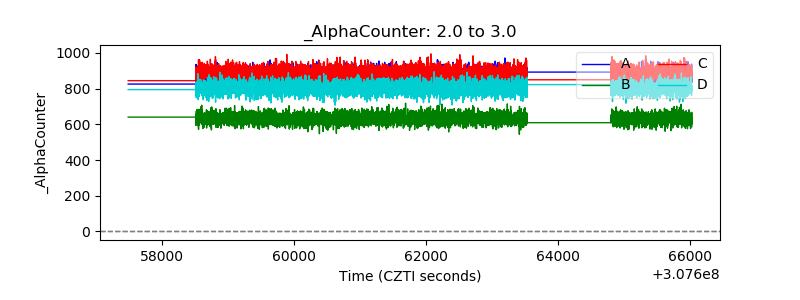

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

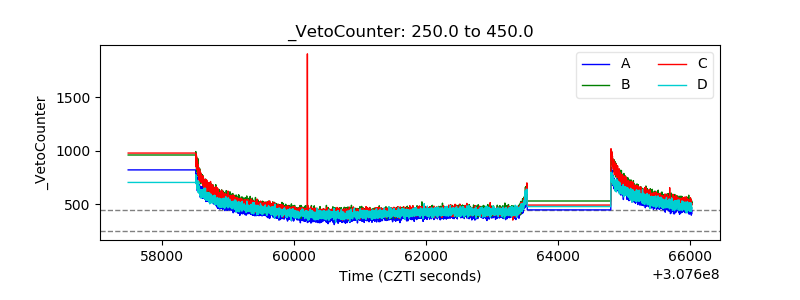

| Veto Counter |  |
