| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_143T01_9000003208_21684cztM0_level2.evt | modeM0/AS1T03_143T01_9000003208_21684cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,892,480 | 64,644,480 |
| Size | 580.7 MB | 61.6 MB |
| Events in quadrant A | 3,382,915 | 410,979 |
| Events in quadrant B | 3,542,232 | 418,802 |
| Events in quadrant C | 3,372,302 | 399,394 |
| Events in quadrant D | 7,714,861 | 286,122 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13467 | 2 |
| B | 0 | 14110 | 2 |
| C | 0 | 13516 | 2 |
| D | 0 | 27285 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6318 | 56 | 0.886356% |
| B | 6318 | 99 | 1.566952% |
| C | 6318 | 113 | 1.788541% |
| D | 6317 | 1411 | 22.336552% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6319 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7613 | 6319 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7613 | 6319 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7612 | 6317 | 1253 | 1253 | 16.46% | 19.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 60335 | 345.45 | 859 | 842 | 172.2 |
| A | 13 | 254 | 11798 | 63.62 | 859 | 842 | 172.2 |
| A | 10 | 17 | 11539 | 62.11 | 859 | 842 | 172.2 |
| B | 3 | 64 | 65961 | 407.85 | 861 | 844 | 159.7 |
| B | 0 | 229 | 41857 | 256.88 | 861 | 844 | 159.7 |
| B | 0 | 230 | 27086 | 164.36 | 861 | 844 | 159.7 |
| C | 14 | 238 | 131167 | 684.63 | 827 | 836 | 190.4 |
| C | 10 | 22 | 13067 | 64.25 | 827 | 836 | 190.4 |
| C | 13 | 61 | 5952 | 26.87 | 827 | 836 | 190.4 |
| D | 7 | 238 | 3227952 | 17910.79 | 741 | 718 | 180.2 |
| D | 1 | 20 | 1233768 | 6843.29 | 741 | 718 | 180.2 |
| D | 1 | 52 | 148241 | 818.74 | 741 | 718 | 180.2 |

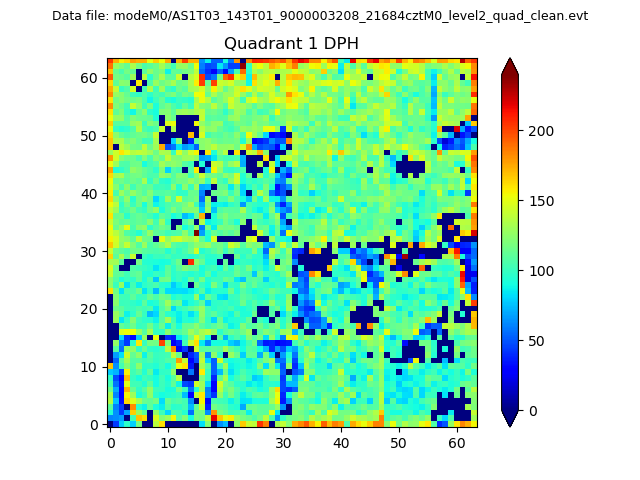

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

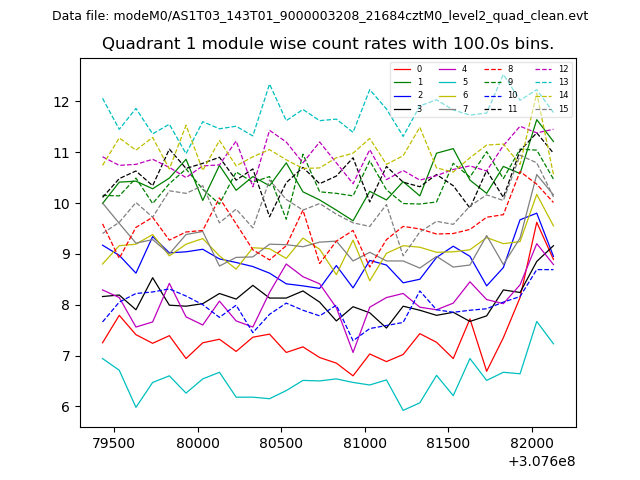

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

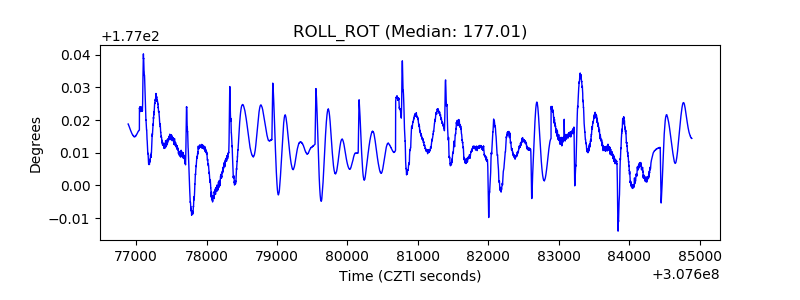

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

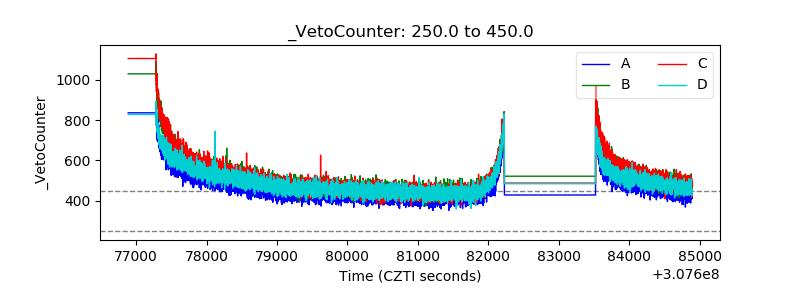

| Veto Counter |  |
