| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_039T02_9000003212_21701cztM0_level2.evt | modeM0/AS1A07_039T02_9000003212_21701cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,001,920 | 129,824,640 |
| Size | 615.1 MB | 123.8 MB |
| Events in quadrant A | 3,189,431 | 880,980 |
| Events in quadrant B | 3,725,946 | 893,583 |
| Events in quadrant C | 8,166,563 | 819,103 |
| Events in quadrant D | 3,977,321 | 849,620 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14289 | 1 |
| B | 0 | 15566 | 1 |
| C | 0 | 29140 | 1 |
| D | 0 | 16554 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 128 | 1.826745% |
| B | 7008 | 271 | 3.867009% |
| C | 7008 | 1480 | 21.118721% |
| D | 7008 | 174 | 2.482877% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

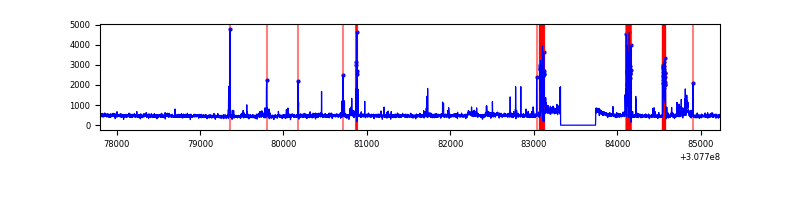

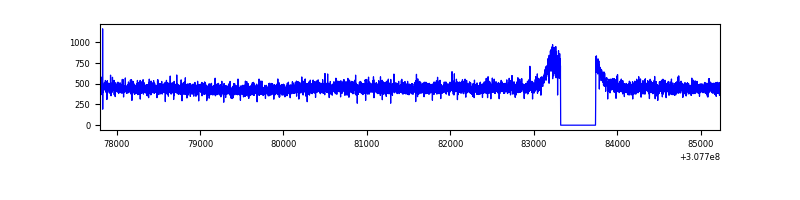

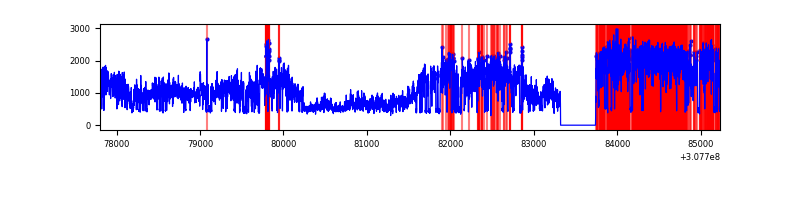

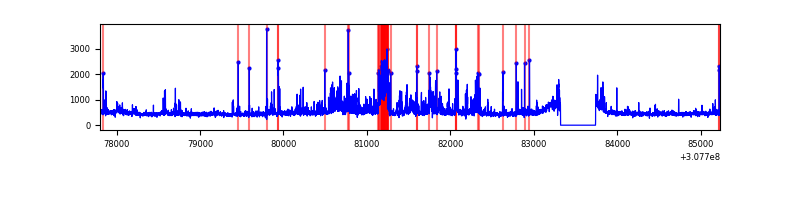

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7427 | 7008 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7428 | 7008 | 86 | 86 | 1.16% | 1.23% |  |
| C | 7428 | 7009 | 707 | 707 | 9.52% | 10.09% |  |
| D | 7428 | 7009 | 54 | 54 | 0.73% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13570 | 76.65 | 825 | 805 | 166.5 |
| A | 3 | 137 | 7073 | 37.64 | 825 | 805 | 166.5 |
| A | 0 | 226 | 6965 | 36.99 | 825 | 805 | 166.5 |
| B | 3 | 64 | 371979 | 2404.23 | 820 | 797 | 154.4 |
| B | 0 | 229 | 56879 | 363.26 | 820 | 797 | 154.4 |
| B | 15 | 36 | 32360 | 204.44 | 820 | 797 | 154.4 |
| C | 8 | 208 | 5023379 | 27976.98 | 772 | 773 | 179.5 |
| C | 14 | 238 | 121023 | 669.82 | 772 | 773 | 179.5 |
| C | 10 | 22 | 9905 | 50.87 | 772 | 773 | 179.5 |
| D | 7 | 238 | 365420 | 1866.46 | 813 | 788 | 195.4 |
| D | 1 | 52 | 287559 | 1467.91 | 813 | 788 | 195.4 |
| D | 14 | 35 | 119876 | 609.58 | 813 | 788 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

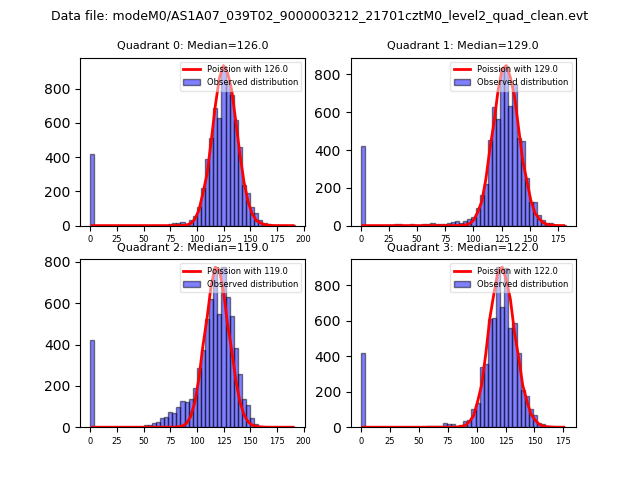

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

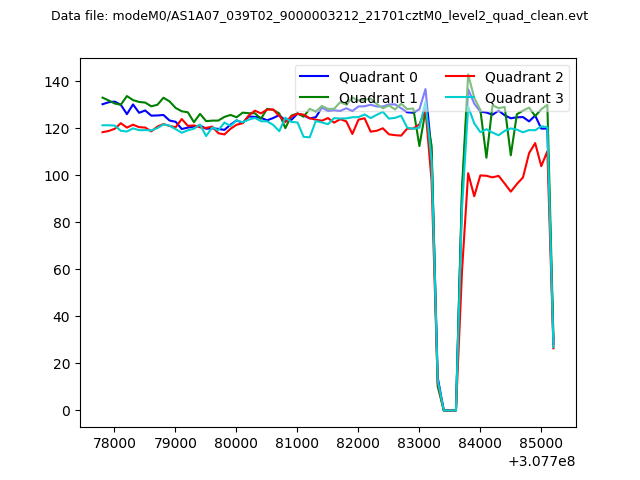

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

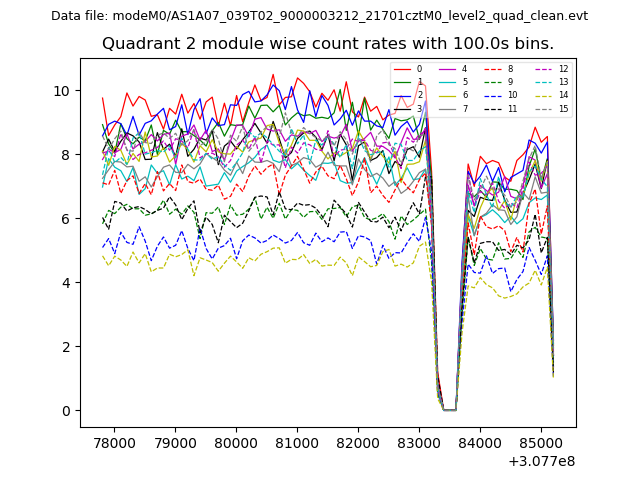

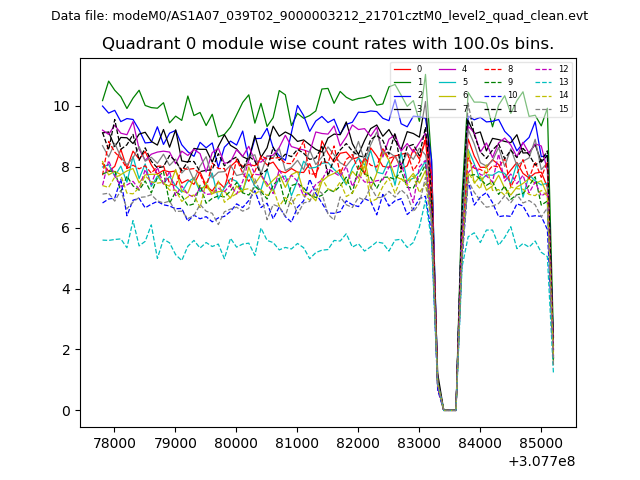

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

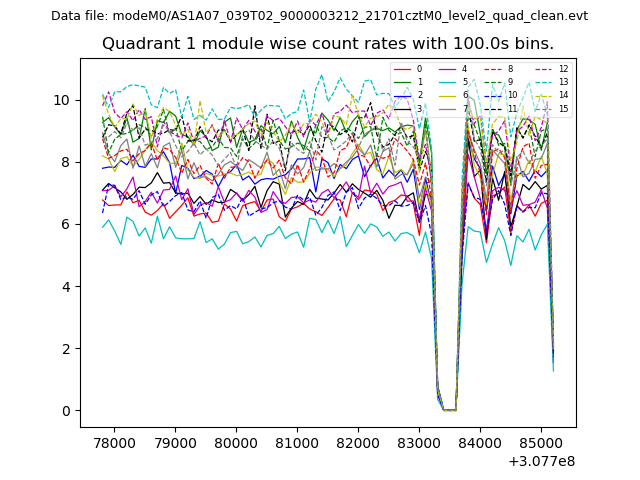

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

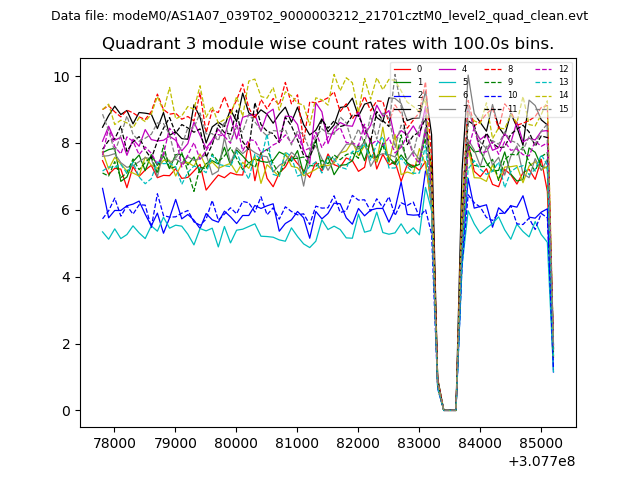

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

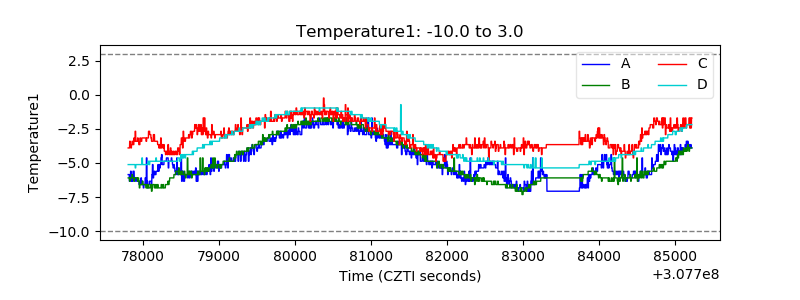

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

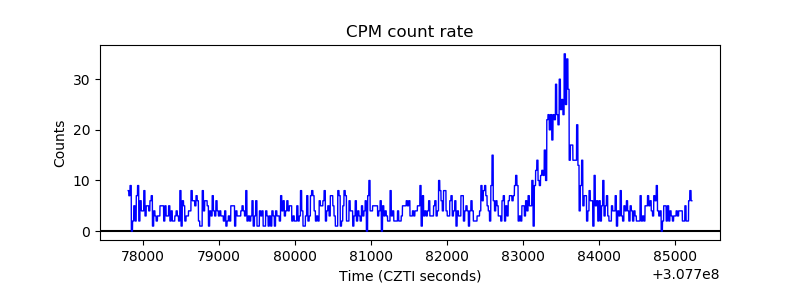

| _CPM_Rate |  |

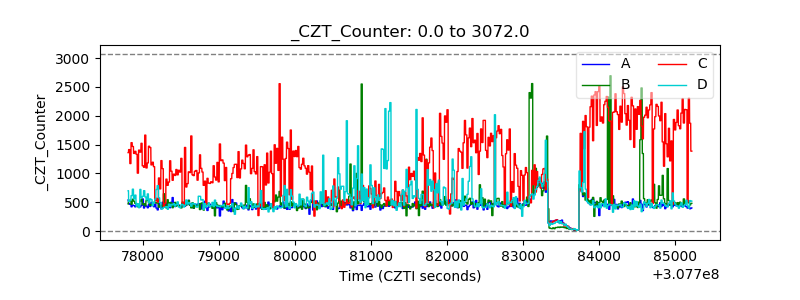

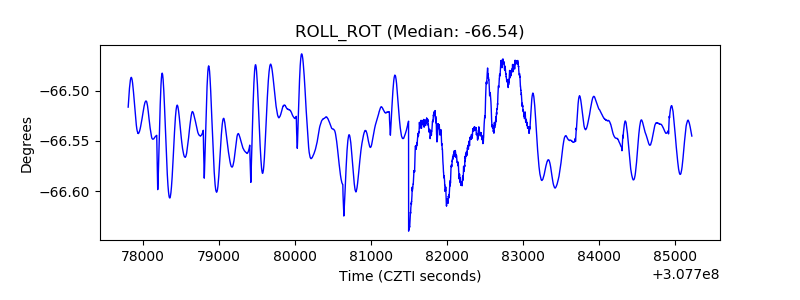

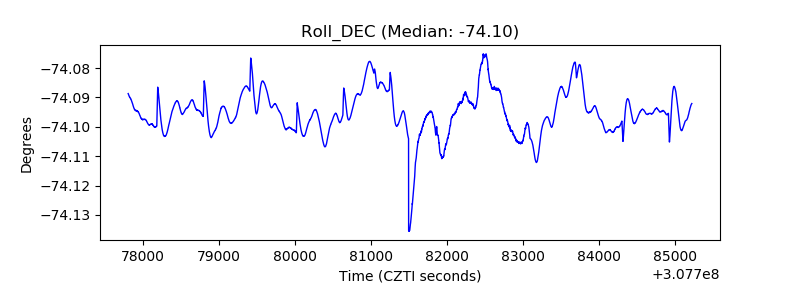

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

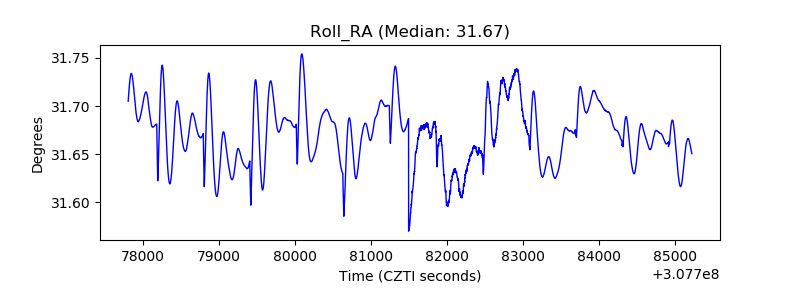

| _Roll_RA |  |

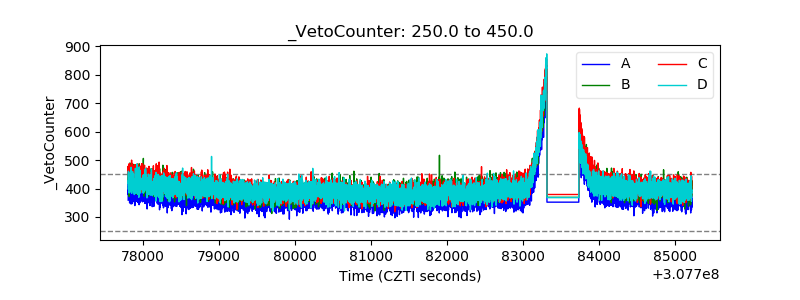

| Veto Counter |  |
