| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21742cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21742cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,759,680 | 103,921,920 |
| Size | 551.0 MB | 99.1 MB |
| Events in quadrant A | 4,463,716 | 679,223 |
| Events in quadrant B | 3,512,031 | 724,331 |
| Events in quadrant C | 3,210,767 | 679,737 |
| Events in quadrant D | 5,885,691 | 625,625 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17290 | 2 |
| B | 0 | 14457 | 2 |
| C | 0 | 13365 | 2 |
| D | 0 | 21825 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6278 | 234 | 3.727302% |
| B | 6278 | 98 | 1.561007% |
| C | 6278 | 76 | 1.210577% |
| D | 6278 | 755 | 12.026123% |

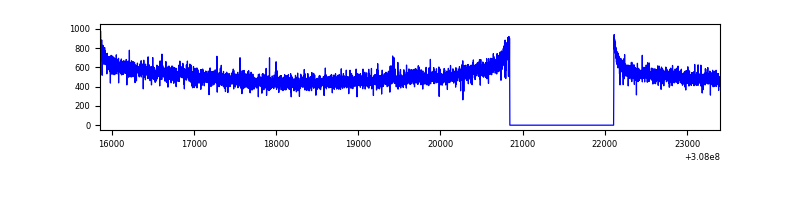

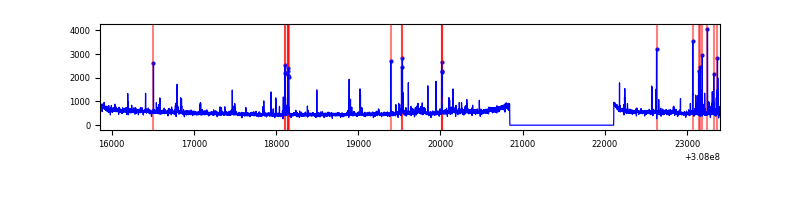

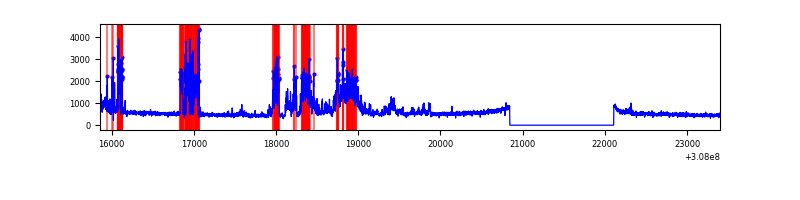

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7543 | 6279 | 222 | 222 | 2.94% | 3.54% |  |
| B | 7543 | 6279 | 21 | 21 | 0.28% | 0.33% |  |
| C | 7543 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7543 | 6279 | 520 | 520 | 6.89% | 8.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 937094 | 5784.57 | 803 | 788 | 161.9 |
| A | 15 | 236 | 429524 | 2648.77 | 803 | 788 | 161.9 |
| A | 13 | 254 | 11459 | 65.93 | 803 | 788 | 161.9 |
| B | 6 | 36 | 97674 | 616.22 | 823 | 804 | 157.2 |
| B | 3 | 64 | 96028 | 605.75 | 823 | 804 | 157.2 |
| B | 0 | 230 | 38112 | 237.33 | 823 | 804 | 157.2 |
| C | 14 | 238 | 123428 | 663.59 | 789 | 795 | 184.8 |
| C | 10 | 22 | 5880 | 27.52 | 789 | 795 | 184.8 |
| C | 13 | 61 | 5447 | 25.17 | 789 | 795 | 184.8 |
| D | 7 | 238 | 950360 | 5226.81 | 752 | 732 | 181.7 |
| D | 12 | 235 | 839252 | 4615.26 | 752 | 732 | 181.7 |
| D | 1 | 52 | 721100 | 3964.95 | 752 | 732 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

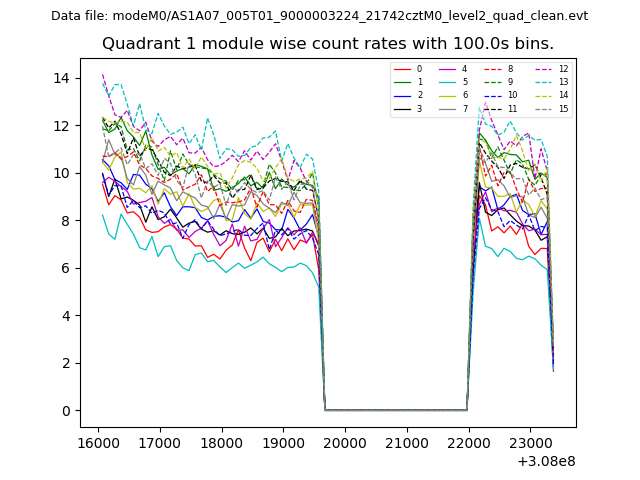

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

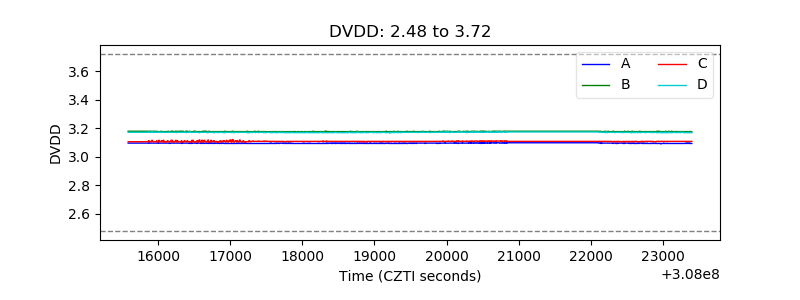

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

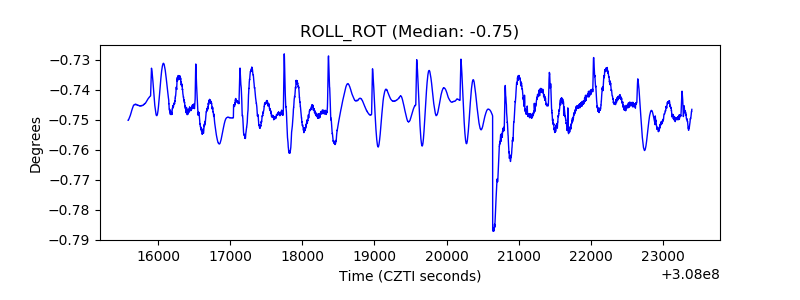

| _ROLL_ROT |  |
| _Roll_DEC |  |

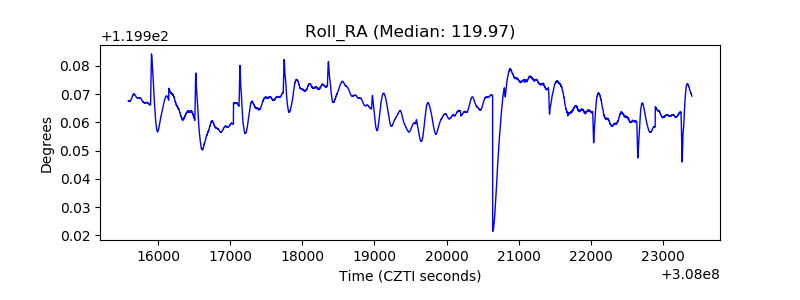

| _Roll_RA |  |

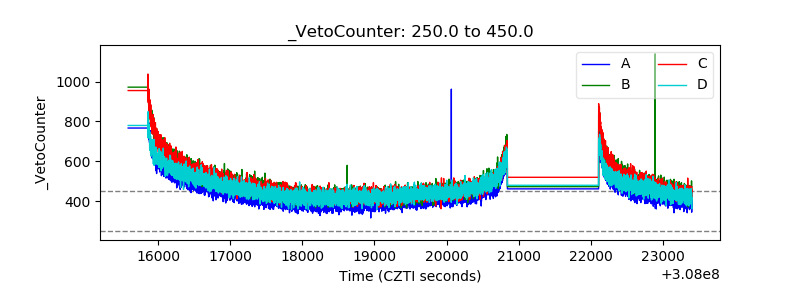

| Veto Counter |  |
