| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21744cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21744cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,292,800 | 85,587,840 |
| Size | 478.1 MB | 81.6 MB |
| Events in quadrant A | 3,142,192 | 543,517 |
| Events in quadrant B | 3,498,278 | 556,676 |
| Events in quadrant C | 3,103,650 | 529,499 |
| Events in quadrant D | 4,995,558 | 507,628 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13686 | 1 |
| B | 0 | 14514 | 1 |
| C | 0 | 13366 | 1 |
| D | 0 | 19262 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6508 | 44 | 0.676091% |
| B | 6509 | 81 | 1.244431% |
| C | 6509 | 86 | 1.321248% |
| D | 6509 | 239 | 3.671839% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7143 | 6510 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7144 | 6511 | 18 | 18 | 0.25% | 0.28% |  |
| C | 7144 | 6511 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7144 | 6511 | 146 | 146 | 2.04% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 92860 | 580.65 | 789 | 772 | 158.6 |
| A | 13 | 254 | 10828 | 63.41 | 789 | 772 | 158.6 |
| A | 4 | 2 | 6872 | 38.46 | 789 | 772 | 158.6 |
| B | 3 | 64 | 241346 | 1589.59 | 793 | 773 | 151.3 |
| B | 0 | 190 | 43527 | 282.49 | 793 | 773 | 151.3 |
| B | 0 | 230 | 29331 | 188.69 | 793 | 773 | 151.3 |
| C | 14 | 238 | 120203 | 662.83 | 764 | 772 | 180.2 |
| C | 13 | 61 | 5443 | 25.92 | 764 | 772 | 180.2 |
| C | 7 | 220 | 2177 | 7.8 | 764 | 772 | 180.2 |
| D | 7 | 238 | 940497 | 5009.17 | 765 | 743 | 187.6 |
| D | 1 | 52 | 754291 | 4016.64 | 765 | 743 | 187.6 |
| D | 13 | 153 | 154585 | 820.02 | 765 | 743 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

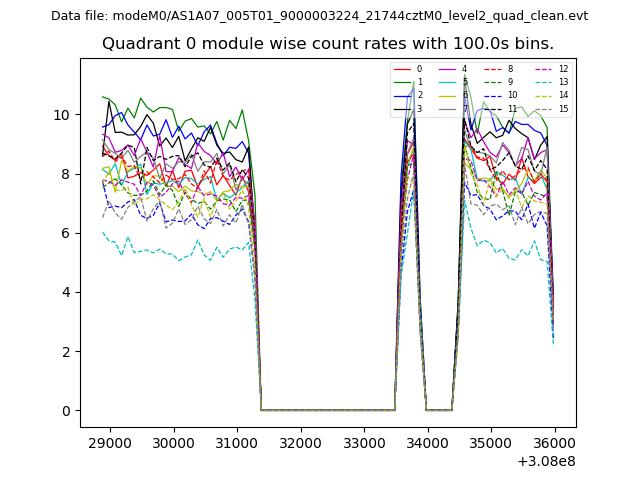

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

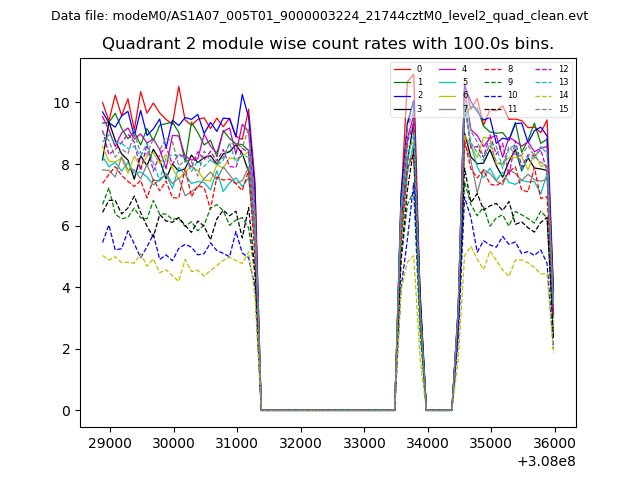

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

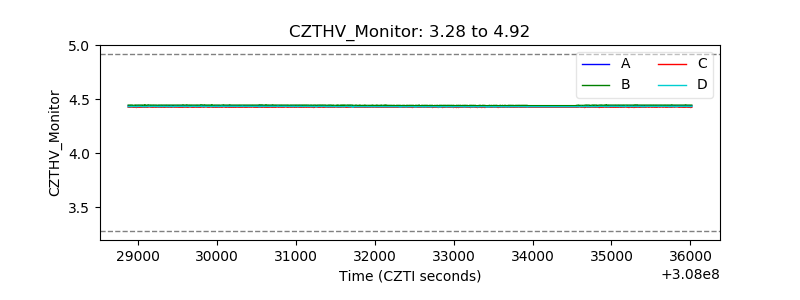

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

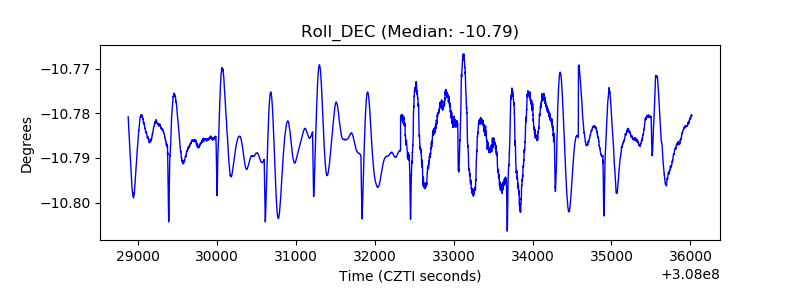

| _Roll_DEC |  |
