| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21758cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21758cztM0_level2_quad_clean.evt |
| Size (bytes) | 739,906,560 | 92,465,280 |
| Size | 705.6 MB | 88.2 MB |
| Events in quadrant A | 3,261,672 | 612,153 |
| Events in quadrant B | 3,656,079 | 629,452 |
| Events in quadrant C | 3,262,024 | 595,435 |
| Events in quadrant D | 11,773,241 | 492,915 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14037 | 2 |
| B | 0 | 15137 | 2 |
| C | 0 | 13893 | 2 |
| D | 0 | 39650 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6740 | 21 | 0.311573% |
| B | 6740 | 117 | 1.735905% |
| C | 6740 | 56 | 0.830861% |
| D | 6740 | 2386 | 35.400593% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 6741 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7590 | 6741 | 22 | 22 | 0.29% | 0.33% |  |
| C | 7590 | 6741 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7590 | 6741 | 2072 | 2072 | 27.30% | 30.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 29984 | 173.94 | 830 | 813 | 167.7 |
| A | 15 | 236 | 25931 | 149.78 | 830 | 813 | 167.7 |
| A | 13 | 254 | 12178 | 67.77 | 830 | 813 | 167.7 |
| B | 3 | 64 | 213012 | 1326.36 | 836 | 816 | 160.0 |
| B | 0 | 230 | 77882 | 481.71 | 836 | 816 | 160.0 |
| B | 0 | 197 | 21290 | 127.98 | 836 | 816 | 160.0 |
| C | 14 | 238 | 125224 | 656.9 | 804 | 811 | 189.4 |
| C | 13 | 61 | 5645 | 25.52 | 804 | 811 | 189.4 |
| C | 1 | 0 | 2045 | 6.52 | 804 | 811 | 189.4 |
| D | 7 | 238 | 7638916 | 43060.92 | 724 | 704 | 177.4 |
| D | 1 | 52 | 738241 | 4157.91 | 724 | 704 | 177.4 |
| D | 7 | 223 | 281809 | 1584.75 | 724 | 704 | 177.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

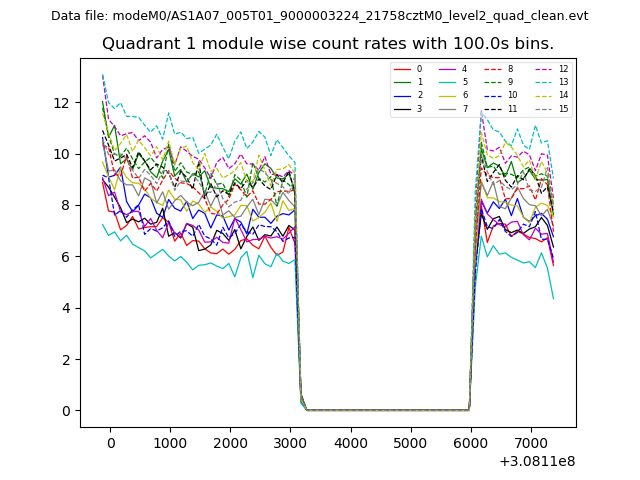

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

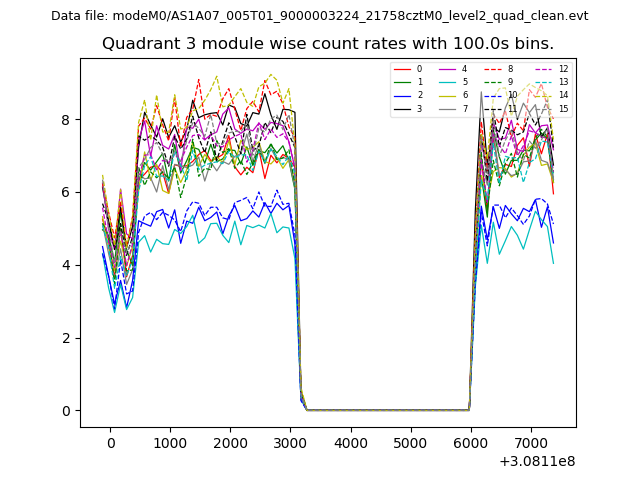

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

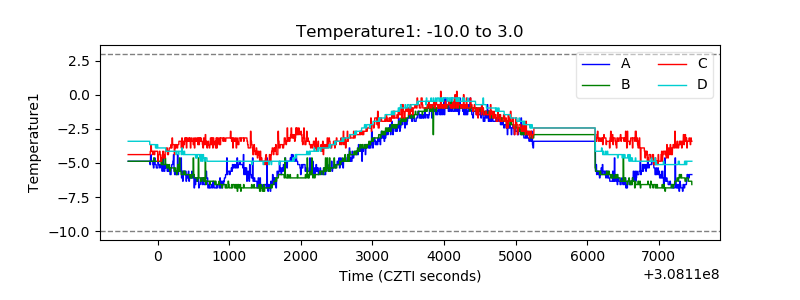

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

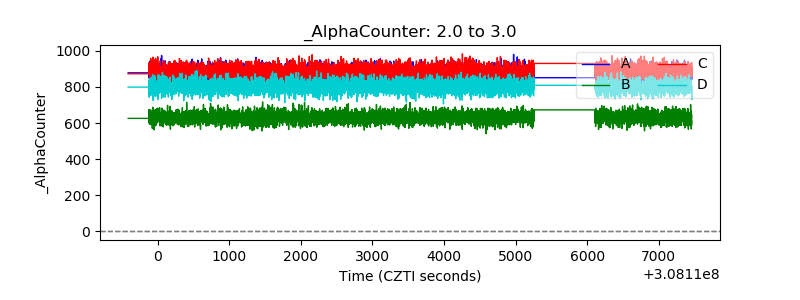

| Alpha Counter |  |
| _CPM_Rate |  |

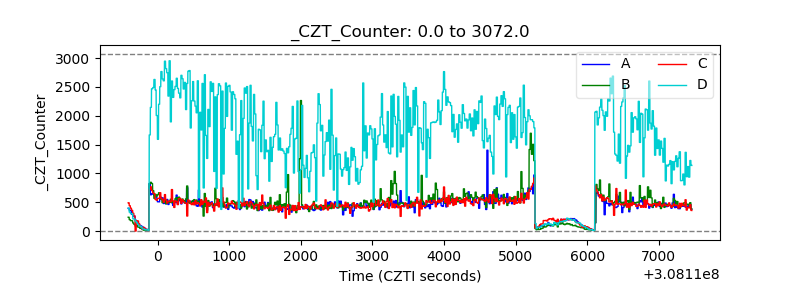

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

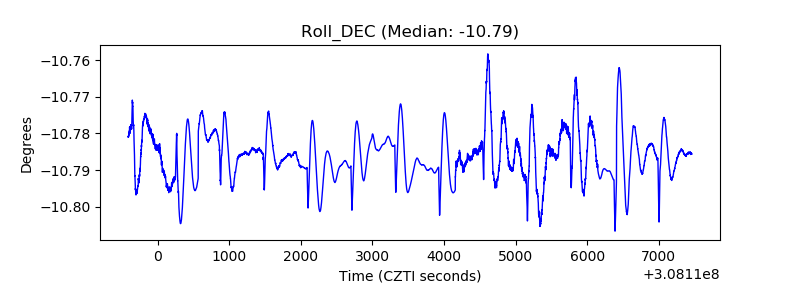

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
