| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21765cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21765cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,335,653,440 | 317,744,640 |
| Size | 3.1 GB | 303.0 MB |
| Events in quadrant A | 13,952,180 | 2,072,875 |
| Events in quadrant B | 15,262,722 | 2,117,160 |
| Events in quadrant C | 13,809,454 | 2,017,687 |
| Events in quadrant D | 56,043,193 | 1,414,608 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60070 | 4 |
| B | 0 | 63370 | 4 |
| C | 0 | 59474 | 8 |
| D | 0 | 186492 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 590 | 0 |
| B | 0 | 590 | 0 |
| C | 0 | 590 | 0 |
| D | 0 | 590 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29054 | 361 | 1.242514% |
| B | 29055 | 516 | 1.775942% |
| C | 29054 | 432 | 1.486886% |
| D | 29056 | 16446 | 56.601046% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

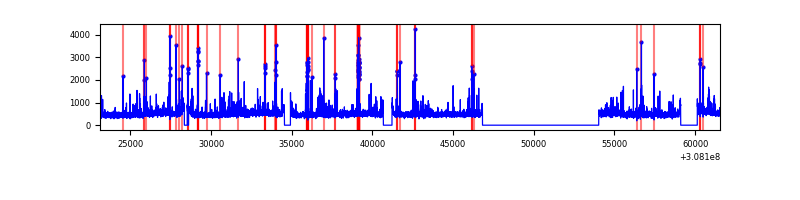

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38426 | 29058 | 3 | 3 | 0.01% | 0.01% |  |
| B | 38427 | 29060 | 94 | 94 | 0.24% | 0.32% |  |
| C | 38427 | 29059 | 0 | 0 | 0.00% | 0.00% |  |
| D | 38426 | 29058 | 14208 | 14208 | 36.97% | 48.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 93459 | 126.61 | 3542 | 3464 | 710.8 |
| A | 12 | 96 | 68375 | 91.32 | 3542 | 3464 | 710.8 |
| A | 15 | 236 | 67464 | 90.04 | 3542 | 3464 | 710.8 |
| B | 3 | 64 | 602653 | 893.24 | 3541 | 3452 | 670.8 |
| B | 0 | 230 | 283939 | 418.13 | 3541 | 3452 | 670.8 |
| B | 0 | 190 | 148472 | 216.18 | 3541 | 3452 | 670.8 |
| C | 14 | 238 | 532447 | 666.91 | 3403 | 3424 | 793.2 |
| C | 13 | 61 | 23676 | 25.53 | 3403 | 3424 | 793.2 |
| C | 3 | 233 | 17078 | 17.21 | 3403 | 3424 | 793.2 |
| D | 7 | 238 | 38859349 | 62219.41 | 2583 | 2507 | 624.5 |
| D | 1 | 52 | 6318340 | 10113.21 | 2583 | 2507 | 624.5 |
| D | 14 | 35 | 292060 | 463.65 | 2583 | 2507 | 624.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

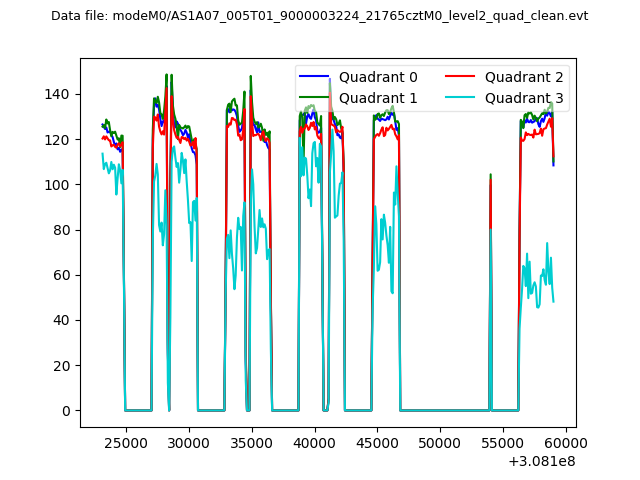

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

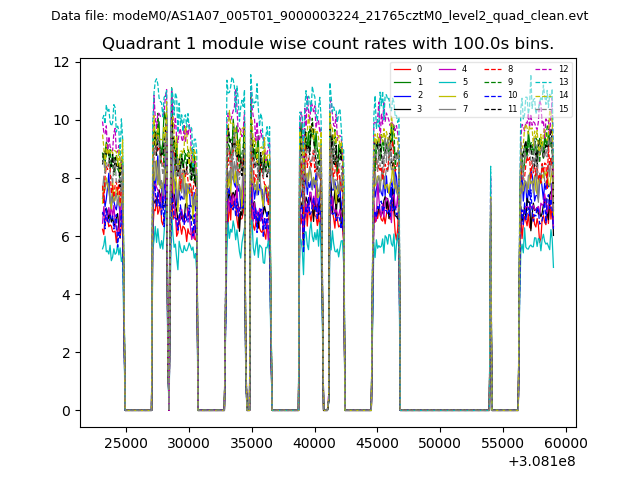

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

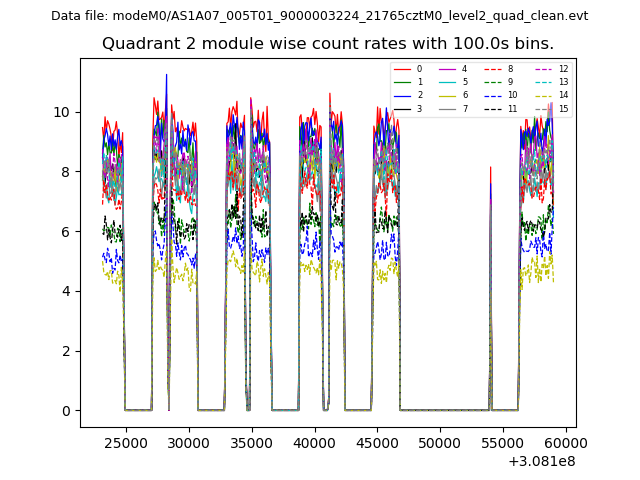

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

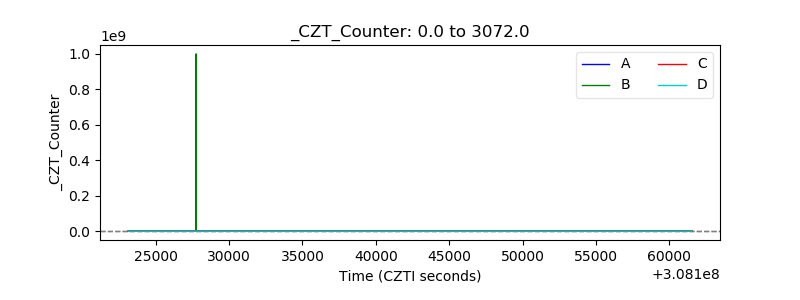

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

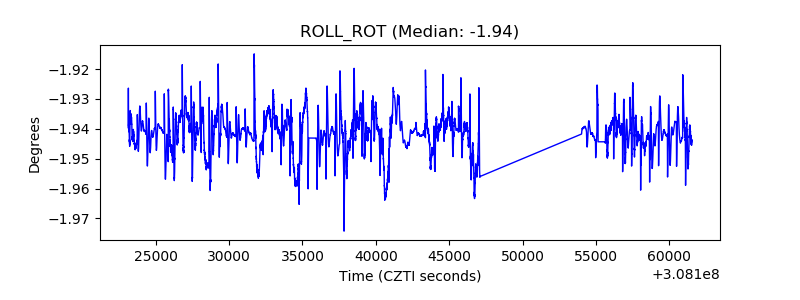

| _ROLL_ROT |  |
| _Roll_DEC |  |

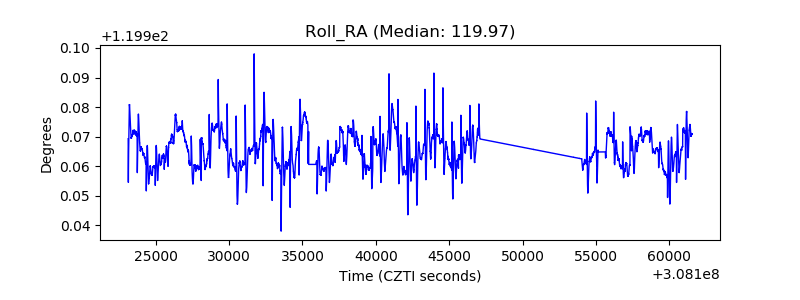

| _Roll_RA |  |

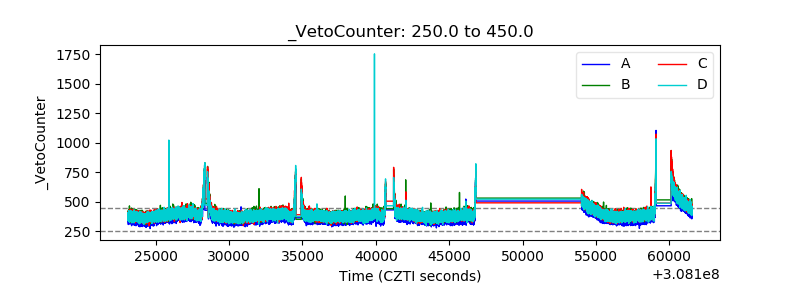

| Veto Counter |  |
