| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21767cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21767cztM0_level2_quad_clean.evt |
| Size (bytes) | 863,930,880 | 62,363,520 |
| Size | 823.9 MB | 59.5 MB |
| Events in quadrant A | 3,370,746 | 406,011 |
| Events in quadrant B | 3,754,934 | 411,541 |
| Events in quadrant C | 3,331,293 | 389,814 |
| Events in quadrant D | 15,271,745 | 230,305 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14112 | 2 |
| B | 0 | 15430 | 2 |
| C | 0 | 13999 | 2 |
| D | 0 | 49782 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 73 | 1.133188% |
| B | 6442 | 136 | 2.111146% |
| C | 6442 | 89 | 1.381559% |
| D | 6442 | 5485 | 85.144365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 6442 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7577 | 6442 | 29 | 29 | 0.38% | 0.45% |  |
| C | 7577 | 6442 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7577 | 6442 | 4917 | 4917 | 64.89% | 76.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 25945 | 145.68 | 859 | 844 | 172.3 |
| A | 14 | 235 | 13960 | 76.12 | 859 | 844 | 172.3 |
| A | 13 | 254 | 12472 | 67.49 | 859 | 844 | 172.3 |
| B | 3 | 64 | 113257 | 698.27 | 857 | 839 | 161.0 |
| B | 0 | 230 | 92458 | 569.08 | 857 | 839 | 161.0 |
| B | 0 | 197 | 49624 | 303.02 | 857 | 839 | 161.0 |
| C | 14 | 238 | 129034 | 664.88 | 821 | 827 | 192.8 |
| C | 13 | 61 | 5788 | 25.73 | 821 | 827 | 192.8 |
| C | 3 | 202 | 1951 | 5.83 | 821 | 827 | 192.8 |
| D | 7 | 238 | 12065382 | 101618.81 | 491 | 477 | 118.7 |
| D | 1 | 52 | 959118 | 8074.32 | 491 | 477 | 118.7 |
| D | 7 | 223 | 164980 | 1385.56 | 491 | 477 | 118.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

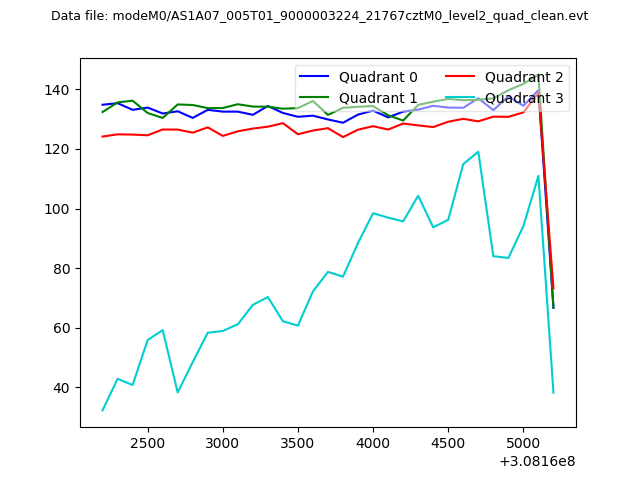

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

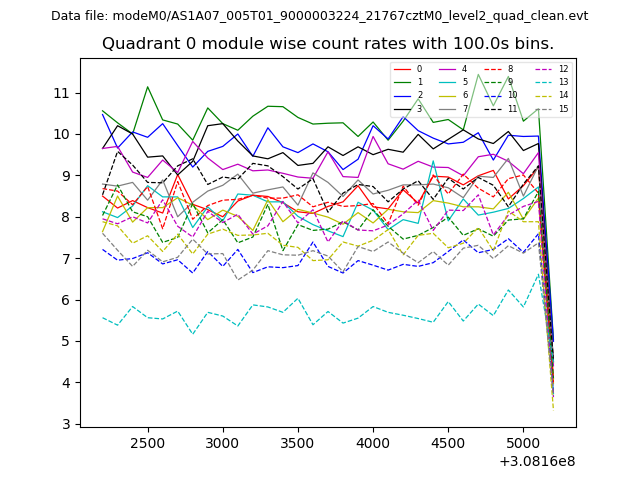

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

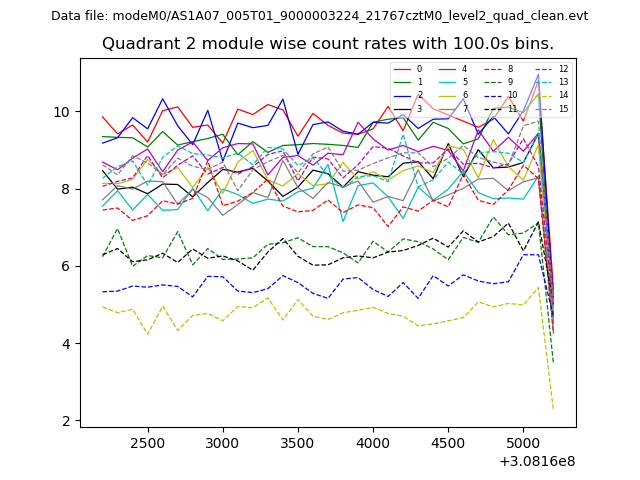

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

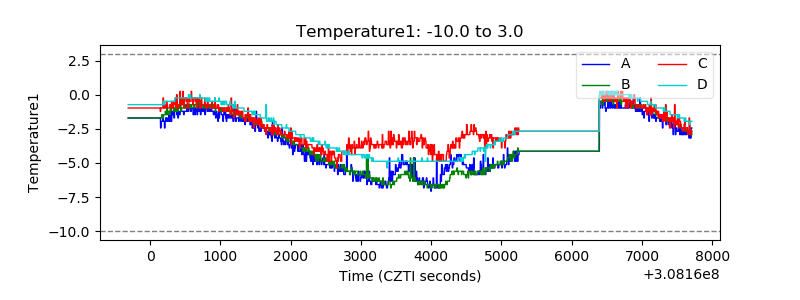

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

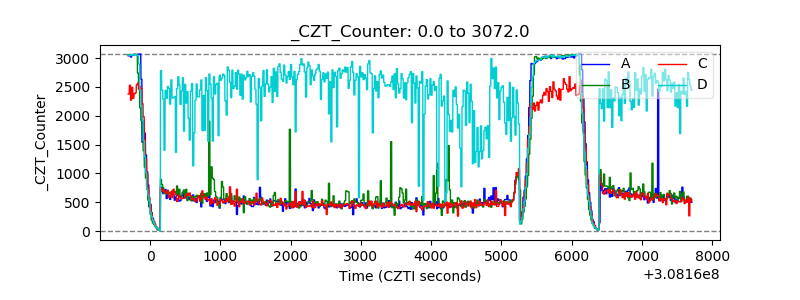

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

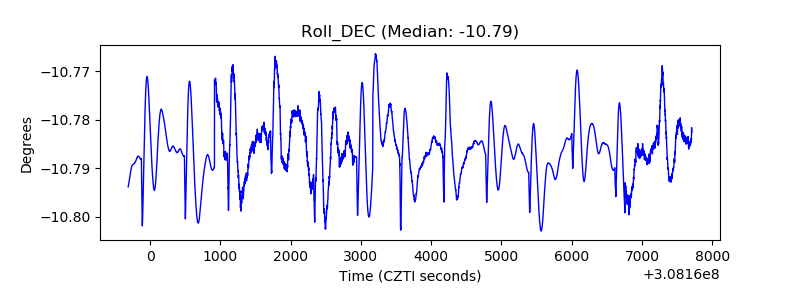

| _Roll_DEC |  |
| _Roll_RA |  |

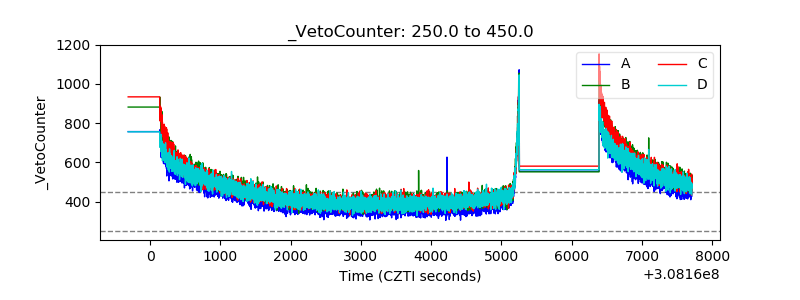

| Veto Counter |  |
