| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_005T01_9000003224_21781cztM0_level2.evt | modeM0/AS1A07_005T01_9000003224_21781cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,332,563,200 | 267,621,120 |
| Size | 3.1 GB | 255.2 MB |
| Events in quadrant A | 12,439,203 | 1,800,012 |
| Events in quadrant B | 14,240,450 | 1,821,941 |
| Events in quadrant C | 12,520,044 | 1,743,035 |
| Events in quadrant D | 59,963,563 | 930,961 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53997 | 7 |
| B | 0 | 58974 | 5 |
| C | 0 | 53949 | 4 |
| D | 0 | 196101 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 530 | 0 |
| B | 0 | 530 | 0 |
| C | 0 | 530 | 0 |
| D | 0 | 530 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 26231 | 235 | 0.895887% |
| B | 26233 | 599 | 2.283384% |
| C | 26233 | 343 | 1.307513% |
| D | 26233 | 20994 | 80.028971% |

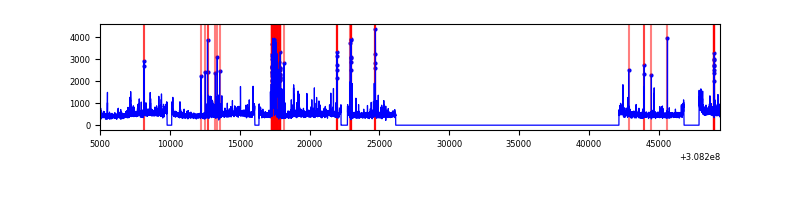

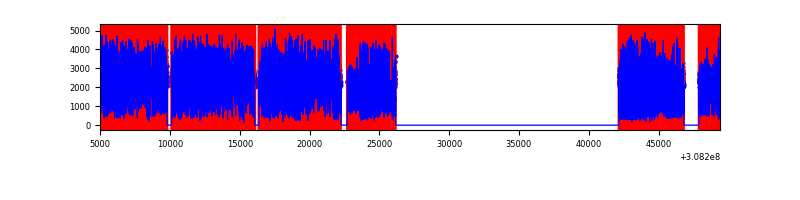

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 44413 | 26235 | 0 | 0 | 0.00% | 0.00% |  |
| B | 44414 | 26237 | 245 | 245 | 0.55% | 0.93% |  |
| C | 44414 | 26237 | 0 | 0 | 0.00% | 0.00% |  |
| D | 44414 | 26234 | 18880 | 18880 | 42.51% | 71.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 48655 | 70.79 | 3217 | 3144 | 642.9 |
| A | 0 | 226 | 28065 | 38.76 | 3217 | 3144 | 642.9 |
| A | 3 | 137 | 26345 | 36.09 | 3217 | 3144 | 642.9 |
| B | 3 | 64 | 977843 | 1606.47 | 3202 | 3126 | 606.7 |
| B | 0 | 190 | 209345 | 339.88 | 3202 | 3126 | 606.7 |
| B | 0 | 197 | 159221 | 257.27 | 3202 | 3126 | 606.7 |
| C | 14 | 238 | 480310 | 661.73 | 3088 | 3109 | 721.1 |
| C | 13 | 61 | 21626 | 25.68 | 3088 | 3109 | 721.1 |
| C | 3 | 248 | 11759 | 11.99 | 3088 | 3109 | 721.1 |
| D | 7 | 238 | 50896777 | 112247.54 | 1861 | 1805 | 453.4 |
| D | 1 | 52 | 1016555 | 2238.0 | 1861 | 1805 | 453.4 |
| D | 14 | 35 | 270919 | 593.52 | 1861 | 1805 | 453.4 |

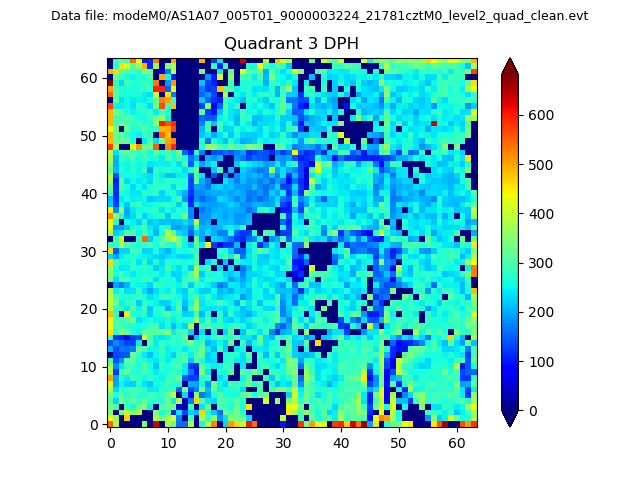

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

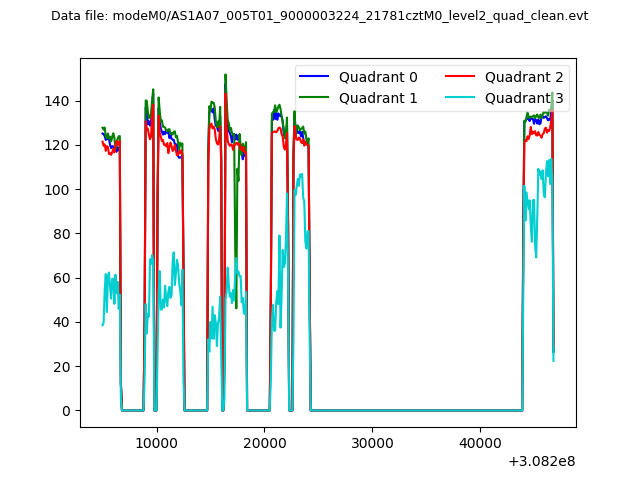

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

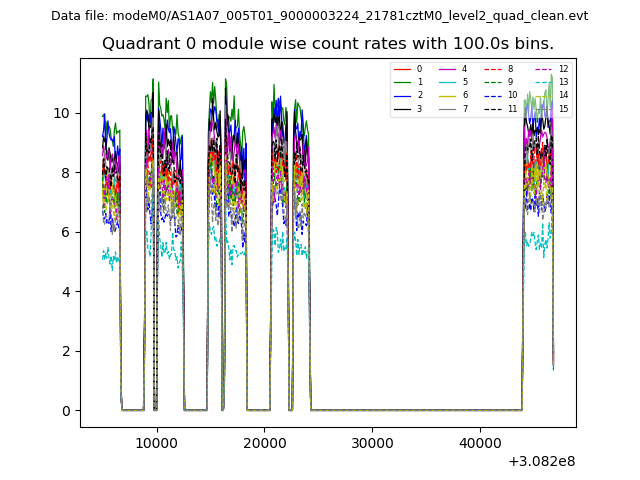

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

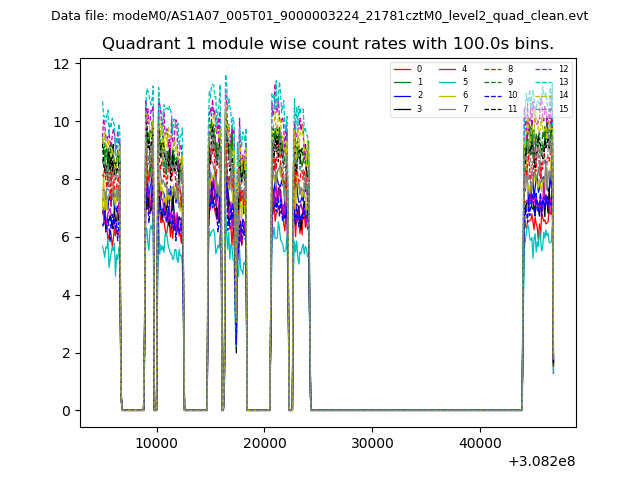

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

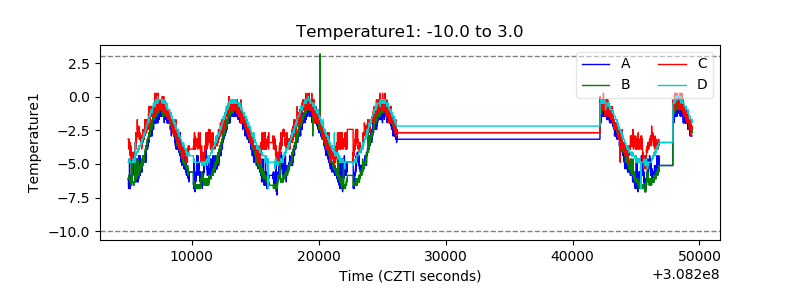

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

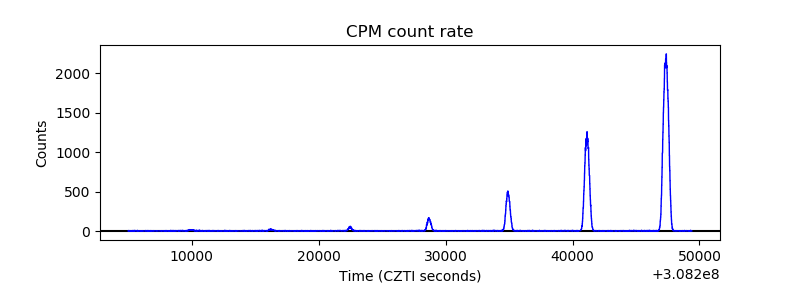

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
