| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_006T01_9000003226_21792cztM0_level2.evt | modeM0/AS1A07_006T01_9000003226_21792cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,432,883,520 | 166,377,600 |
| Size | 1.3 GB | 158.7 MB |
| Events in quadrant A | 6,262,590 | 1,121,192 |
| Events in quadrant B | 6,525,991 | 1,137,045 |
| Events in quadrant C | 6,059,704 | 1,105,774 |
| Events in quadrant D | 23,680,739 | 785,662 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26985 | 2 |
| B | 0 | 27226 | 2 |
| C | 0 | 26158 | 2 |
| D | 0 | 79094 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12832 | 133 | 1.036471% |
| B | 12833 | 177 | 1.379257% |
| C | 12833 | 174 | 1.355879% |
| D | 12833 | 7842 | 61.108081% |

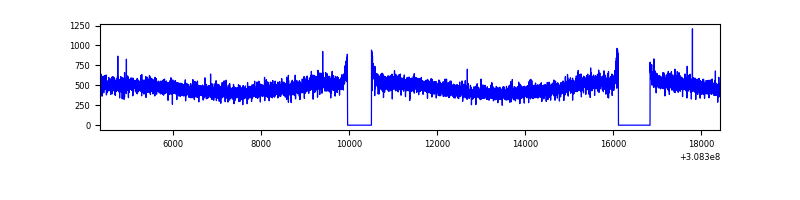

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14097 | 12833 | 1 | 1 | 0.01% | 0.01% |  |
| B | 14098 | 12834 | 35 | 35 | 0.25% | 0.27% |  |
| C | 14098 | 12834 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14098 | 12833 | 6898 | 6898 | 48.93% | 53.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 164523 | 518.83 | 1557 | 1519 | 314.2 |
| A | 14 | 235 | 85843 | 268.4 | 1557 | 1519 | 314.2 |
| A | 13 | 254 | 24564 | 73.35 | 1557 | 1519 | 314.2 |
| B | 3 | 64 | 188542 | 624.62 | 1553 | 1512 | 299.4 |
| B | 0 | 190 | 89557 | 294.04 | 1553 | 1512 | 299.4 |
| B | 0 | 197 | 43917 | 141.62 | 1553 | 1512 | 299.4 |
| C | 14 | 238 | 232845 | 660.19 | 1495 | 1501 | 350.4 |
| C | 13 | 61 | 10779 | 26.48 | 1495 | 1501 | 350.4 |
| C | 15 | 78 | 3533 | 5.8 | 1495 | 1501 | 350.4 |
| D | 7 | 238 | 18205226 | 60815.06 | 1225 | 1188 | 299.3 |
| D | 13 | 153 | 255783 | 850.54 | 1225 | 1188 | 299.3 |
| D | 7 | 223 | 155923 | 516.93 | 1225 | 1188 | 299.3 |

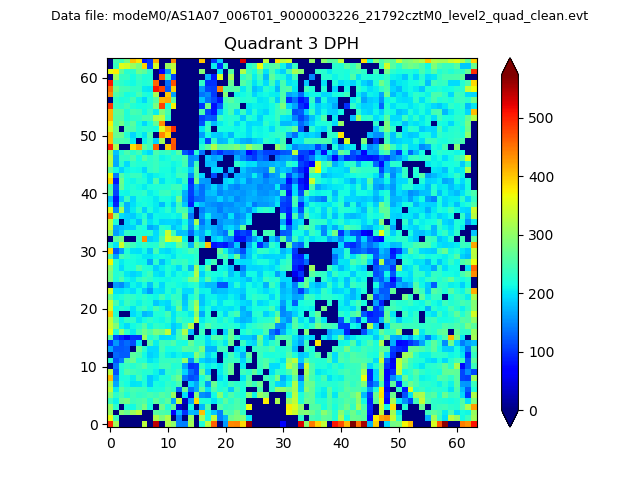

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

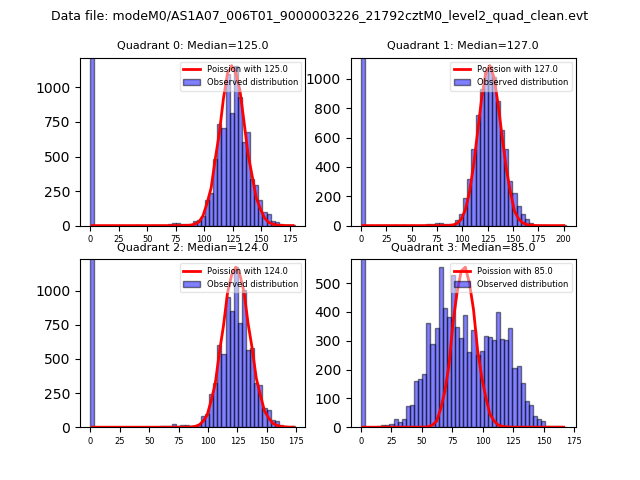

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

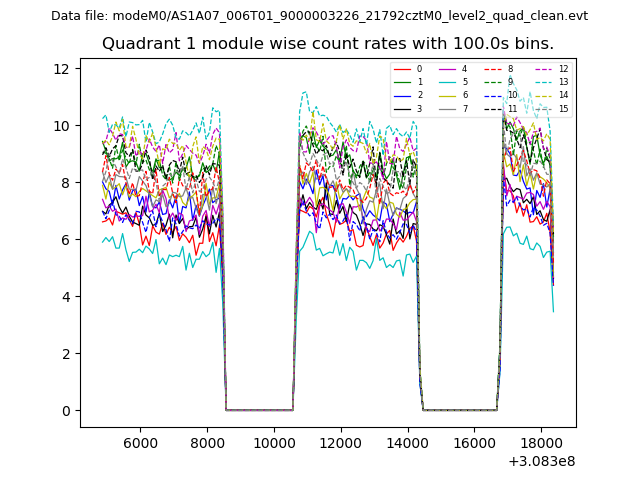

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

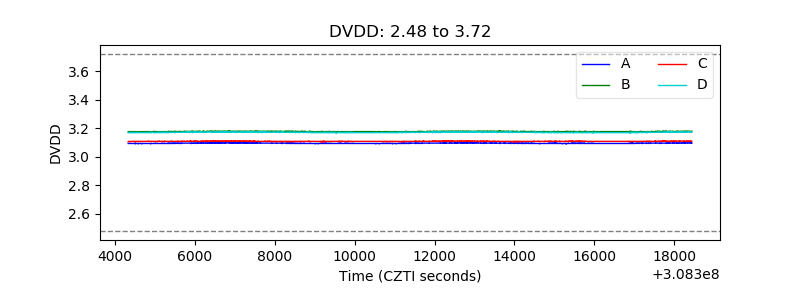

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

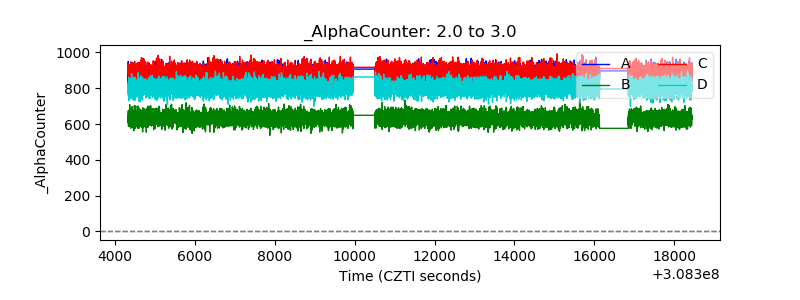

| Alpha Counter |  |

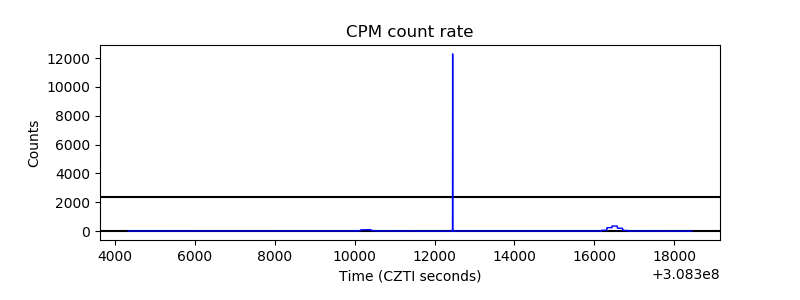

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
