| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_006T02_9000003228_21796cztM0_level2.evt | modeM0/AS1A07_006T02_9000003228_21796cztM0_level2_quad_clean.evt |
| Size (bytes) | 379,474,560 | 69,321,600 |
| Size | 361.9 MB | 66.1 MB |
| Events in quadrant A | 2,580,459 | 440,082 |
| Events in quadrant B | 2,754,782 | 450,174 |
| Events in quadrant C | 2,554,196 | 428,349 |
| Events in quadrant D | 3,242,139 | 408,994 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11112 | 1 |
| B | 0 | 11574 | 1 |
| C | 0 | 10993 | 1 |
| D | 0 | 13227 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5310 | 35 | 0.659134% |
| B | 5310 | 43 | 0.809793% |
| C | 5310 | 49 | 0.922787% |
| D | 5310 | 72 | 1.355932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6490 | 5311 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6490 | 5311 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6490 | 5311 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6490 | 5311 | 50 | 50 | 0.77% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 37995 | 280.48 | 658 | 647 | 133.2 |
| A | 13 | 254 | 10437 | 73.52 | 658 | 647 | 133.2 |
| A | 0 | 226 | 5755 | 38.36 | 658 | 647 | 133.2 |
| B | 3 | 64 | 57230 | 454.72 | 661 | 645 | 124.4 |
| B | 0 | 228 | 26064 | 204.27 | 661 | 645 | 124.4 |
| B | 0 | 245 | 20423 | 158.93 | 661 | 645 | 124.4 |
| C | 14 | 238 | 100088 | 672.41 | 628 | 634 | 147.9 |
| C | 13 | 61 | 4476 | 25.98 | 628 | 634 | 147.9 |
| C | 10 | 22 | 3401 | 18.71 | 628 | 634 | 147.9 |
| D | 7 | 238 | 560838 | 3630.01 | 628 | 610 | 154.3 |
| D | 13 | 153 | 76547 | 492.04 | 628 | 610 | 154.3 |
| D | 1 | 52 | 71398 | 458.67 | 628 | 610 | 154.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

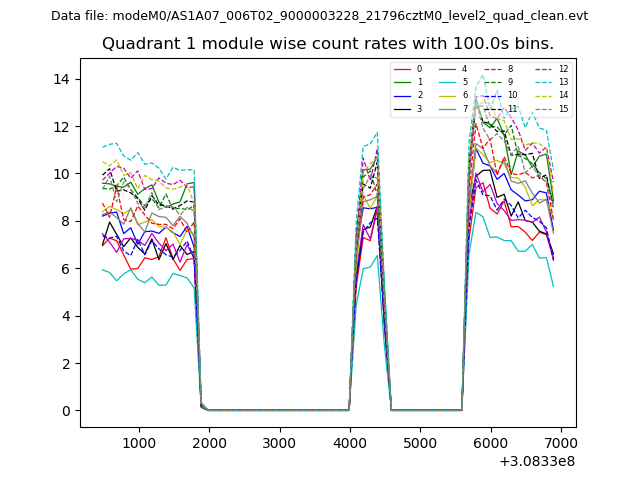

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

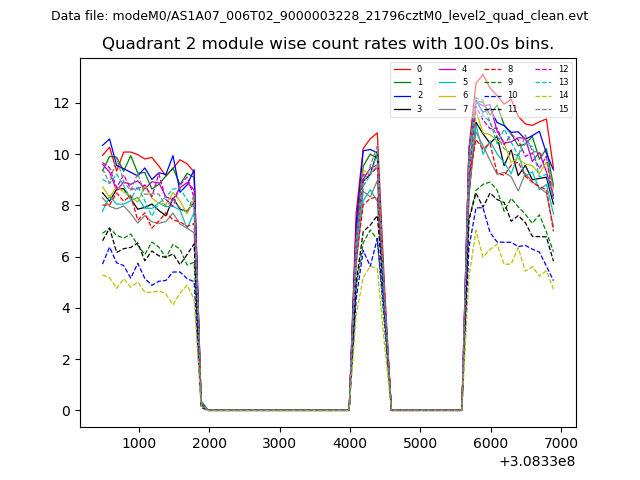

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

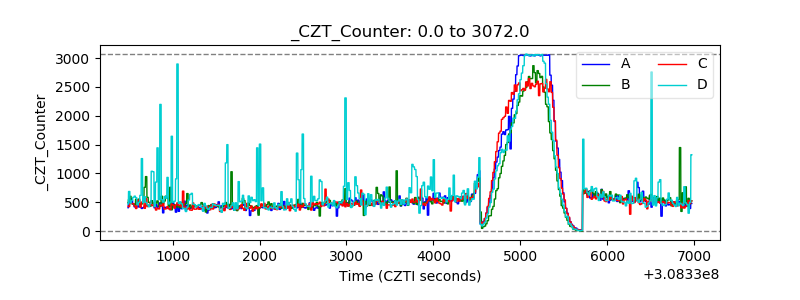

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

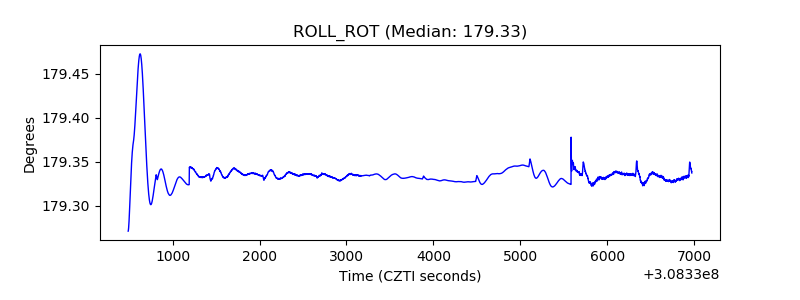

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
