| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_006T02_9000003228_21803cztM0_level2.evt | modeM0/AS1A07_006T02_9000003228_21803cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,982,080 | 78,661,440 |
| Size | 515.9 MB | 75.0 MB |
| Events in quadrant A | 3,726,571 | 468,125 |
| Events in quadrant B | 3,953,827 | 474,082 |
| Events in quadrant C | 3,760,719 | 461,155 |
| Events in quadrant D | 4,420,081 | 443,646 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16077 | 2 |
| B | 0 | 16533 | 2 |
| C | 0 | 16053 | 2 |
| D | 0 | 18273 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7689 | 287 | 3.732605% |
| B | 7688 | 350 | 4.552549% |
| C | 7688 | 319 | 4.149324% |
| D | 7688 | 440 | 5.723205% |

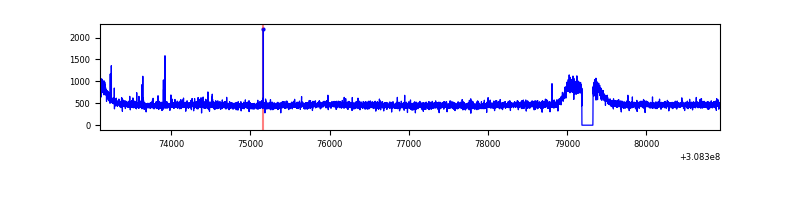

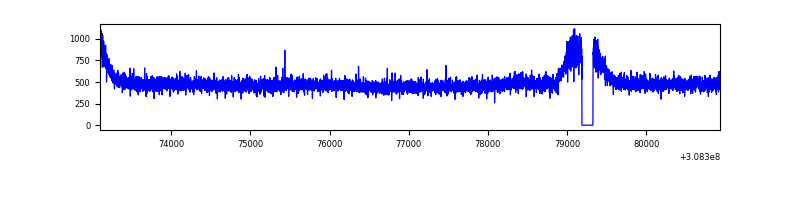

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 7690 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7828 | 7688 | 29 | 29 | 0.37% | 0.38% |  |
| C | 7828 | 7688 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7828 | 7689 | 172 | 172 | 2.20% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 23674 | 116.81 | 959 | 934 | 194.7 |
| A | 13 | 254 | 14554 | 69.96 | 959 | 934 | 194.7 |
| A | 3 | 137 | 8255 | 37.61 | 959 | 934 | 194.7 |
| B | 3 | 64 | 133562 | 712.91 | 957 | 930 | 186.0 |
| B | 12 | 111 | 22866 | 117.91 | 957 | 930 | 186.0 |
| B | 11 | 111 | 19485 | 99.73 | 957 | 930 | 186.0 |
| C | 14 | 238 | 139457 | 634.91 | 924 | 925 | 218.2 |
| C | 8 | 128 | 11244 | 47.29 | 924 | 925 | 218.2 |
| C | 13 | 61 | 6525 | 25.67 | 924 | 925 | 218.2 |
| D | 1 | 52 | 690634 | 3033.81 | 927 | 898 | 227.3 |
| D | 13 | 153 | 91187 | 397.14 | 927 | 898 | 227.3 |
| D | 13 | 104 | 43054 | 185.42 | 927 | 898 | 227.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

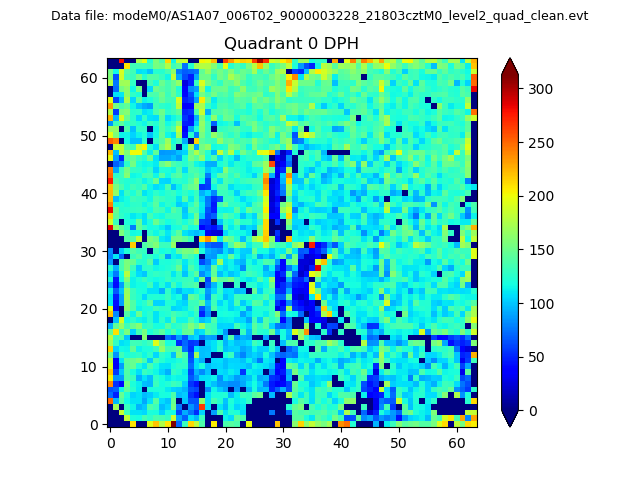

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

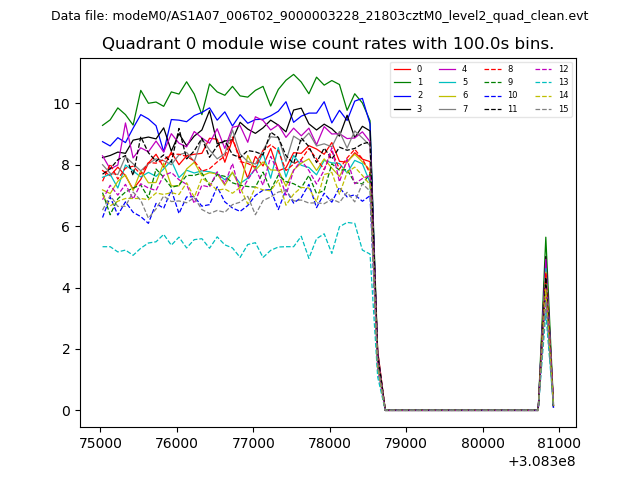

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

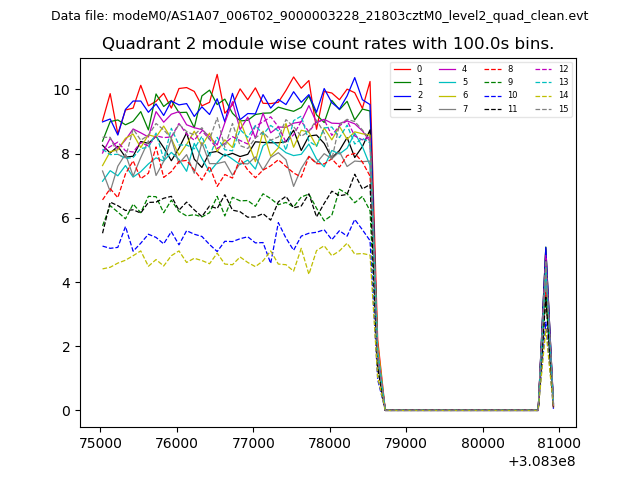

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

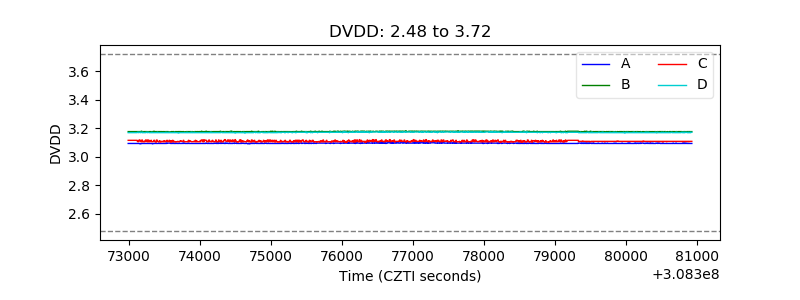

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

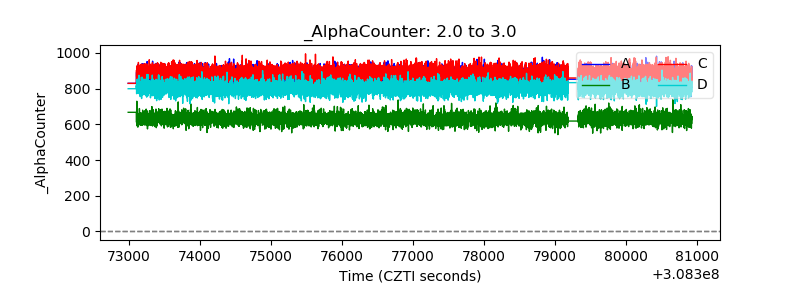

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

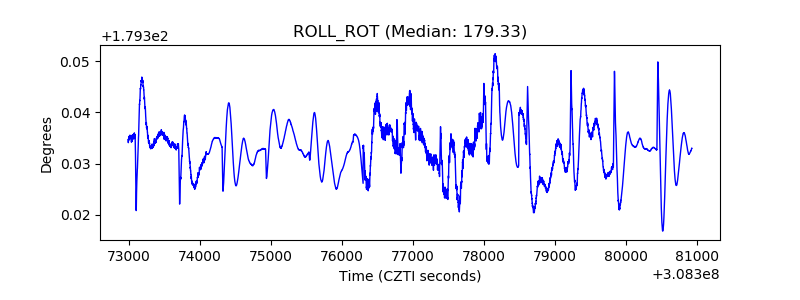

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
