| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21807cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21807cztM0_level2_quad_clean.evt |
| Size (bytes) | 266,221,440 | 42,871,680 |
| Size | 253.9 MB | 40.9 MB |
| Events in quadrant A | 1,996,167 | 262,902 |
| Events in quadrant B | 2,016,055 | 265,130 |
| Events in quadrant C | 1,847,700 | 256,448 |
| Events in quadrant D | 1,947,873 | 249,768 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8200 | 1 |
| B | 0 | 8225 | 1 |
| C | 0 | 7741 | 1 |
| D | 0 | 8139 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3722 | 62 | 1.665771% |
| B | 3722 | 56 | 1.504567% |
| C | 3722 | 44 | 1.182160% |
| D | 3722 | 37 | 0.994089% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4532 | 3723 | 25 | 25 | 0.55% | 0.67% |  |
| B | 4532 | 3723 | 11 | 11 | 0.24% | 0.30% |  |
| C | 4532 | 3723 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4532 | 3723 | 4 | 4 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 166278 | 1695.0 | 473 | 462 | 97.8 |
| A | 13 | 254 | 7400 | 70.92 | 473 | 462 | 97.8 |
| A | 0 | 226 | 4068 | 36.86 | 473 | 462 | 97.8 |
| B | 0 | 197 | 56303 | 606.97 | 471 | 460 | 92.0 |
| B | 3 | 64 | 47161 | 507.61 | 471 | 460 | 92.0 |
| B | 0 | 190 | 31213 | 334.26 | 471 | 460 | 92.0 |
| C | 14 | 238 | 69176 | 630.62 | 455 | 455 | 109.0 |
| C | 8 | 128 | 3801 | 30.7 | 455 | 455 | 109.0 |
| C | 13 | 61 | 3206 | 25.24 | 455 | 455 | 109.0 |
| D | 1 | 52 | 88121 | 777.12 | 459 | 444 | 112.8 |
| D | 13 | 104 | 53803 | 472.94 | 459 | 444 | 112.8 |
| D | 13 | 153 | 34161 | 298.85 | 459 | 444 | 112.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

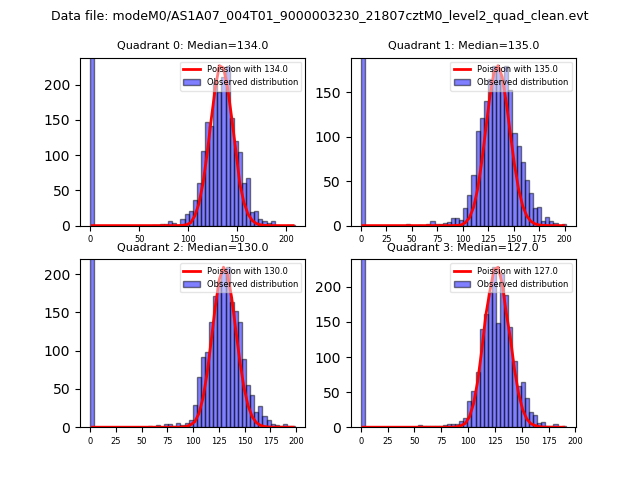

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

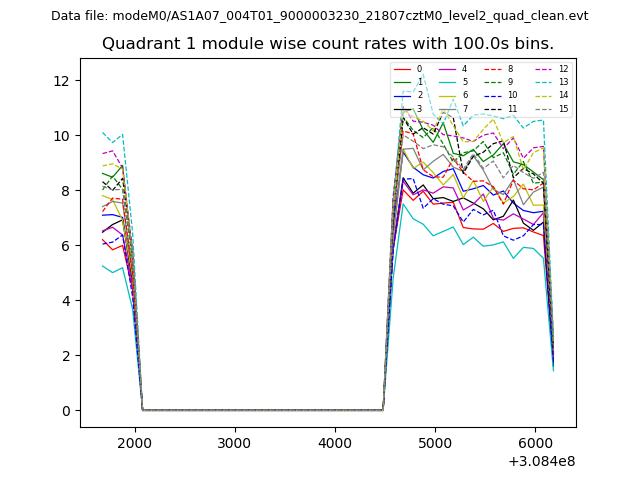

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

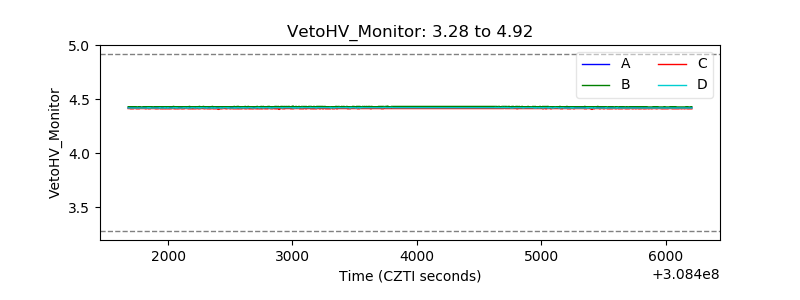

| Veto HV Monitor |  |
| Veto LLD |  |

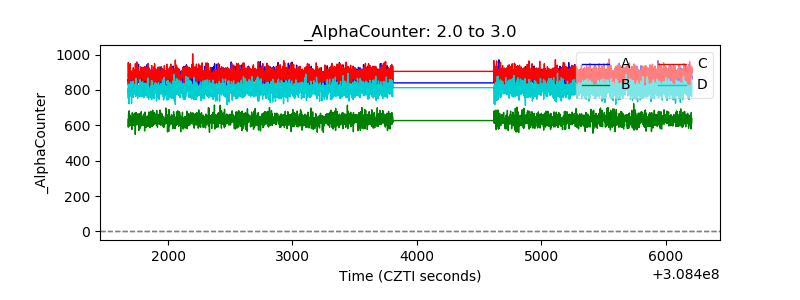

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

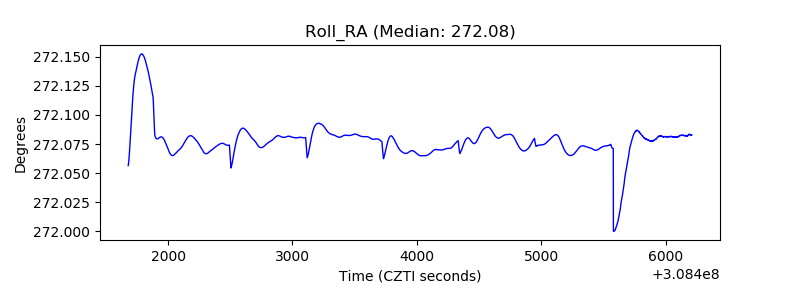

| _Roll_RA |  |
| Veto Counter |  |
