| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21818cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21818cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,479,360 | 97,257,600 |
| Size | 573.6 MB | 92.8 MB |
| Events in quadrant A | 4,594,857 | 588,208 |
| Events in quadrant B | 4,517,537 | 602,462 |
| Events in quadrant C | 4,219,633 | 587,871 |
| Events in quadrant D | 4,301,726 | 571,275 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19284 | 2 |
| B | 0 | 18761 | 2 |
| C | 0 | 18033 | 2 |
| D | 0 | 18785 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8579 | 440 | 5.128803% |
| B | 8579 | 403 | 4.697517% |
| C | 8579 | 378 | 4.406108% |
| D | 8579 | 308 | 3.590162% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

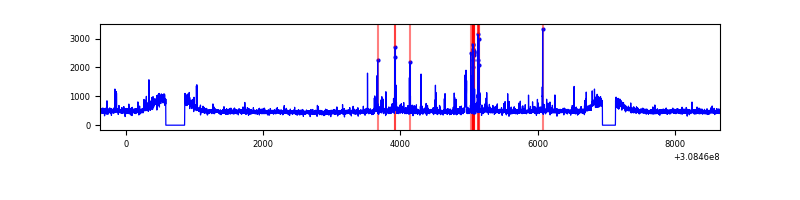

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9044 | 8579 | 81 | 81 | 0.90% | 0.94% |  |
| B | 9044 | 8580 | 24 | 24 | 0.27% | 0.28% |  |
| C | 9044 | 8579 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9044 | 8580 | 27 | 27 | 0.30% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 420777 | 1925.85 | 1069 | 1043 | 217.9 |
| A | 5 | 16 | 32836 | 145.87 | 1069 | 1043 | 217.9 |
| A | 13 | 252 | 17189 | 74.08 | 1069 | 1043 | 217.9 |
| B | 3 | 64 | 143902 | 687.56 | 1075 | 1047 | 207.8 |
| B | 0 | 245 | 46091 | 216.79 | 1075 | 1047 | 207.8 |
| B | 0 | 197 | 41708 | 195.7 | 1075 | 1047 | 207.8 |
| C | 14 | 238 | 157013 | 635.57 | 1037 | 1041 | 245.4 |
| C | 8 | 128 | 11825 | 43.94 | 1037 | 1041 | 245.4 |
| C | 13 | 61 | 7326 | 25.61 | 1037 | 1041 | 245.4 |
| D | 1 | 52 | 151490 | 585.93 | 1051 | 1017 | 256.8 |
| D | 13 | 172 | 96980 | 373.67 | 1051 | 1017 | 256.8 |
| D | 2 | 234 | 35942 | 136.0 | 1051 | 1017 | 256.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

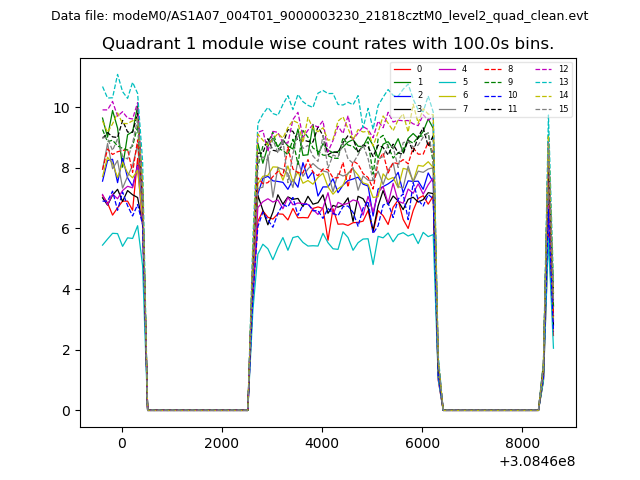

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

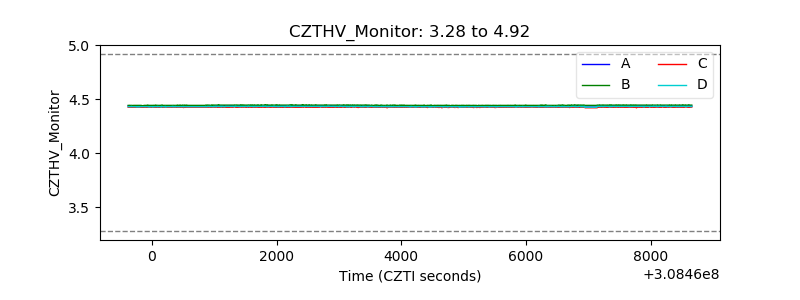

| CZT HV Monitor |  |

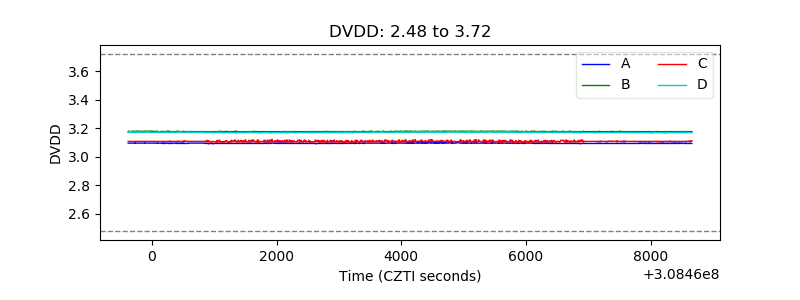

| D_VDD |  |

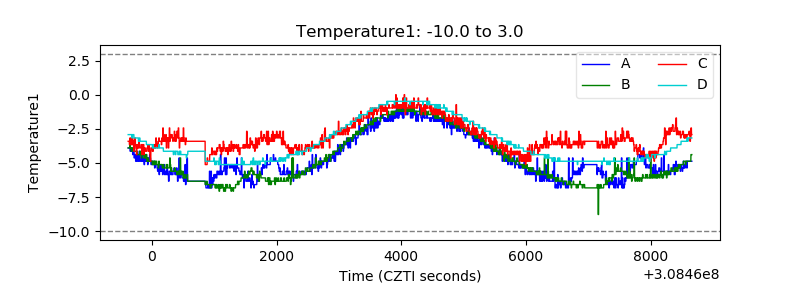

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

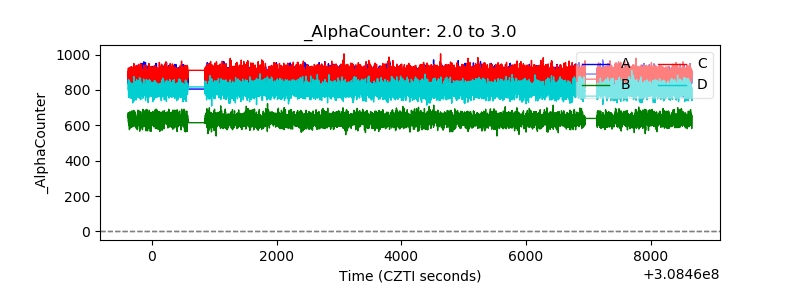

| Alpha Counter |  |

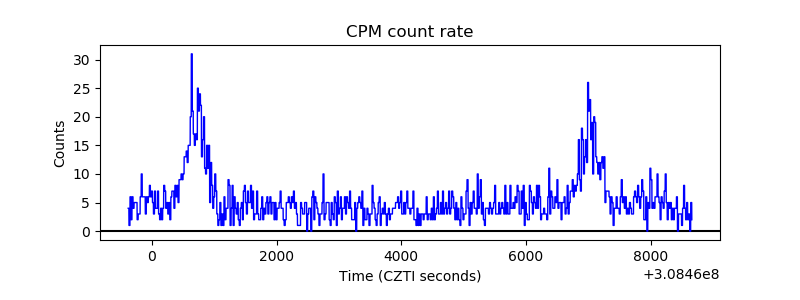

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

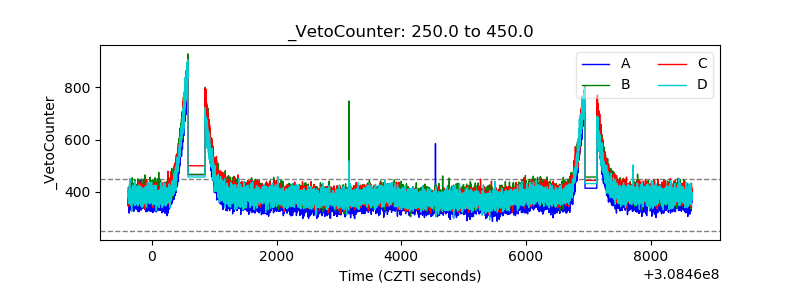

| Veto Counter |  |
